CVC TECHNOLOGIES, INC. CVC 400 OPERATION MANUAL

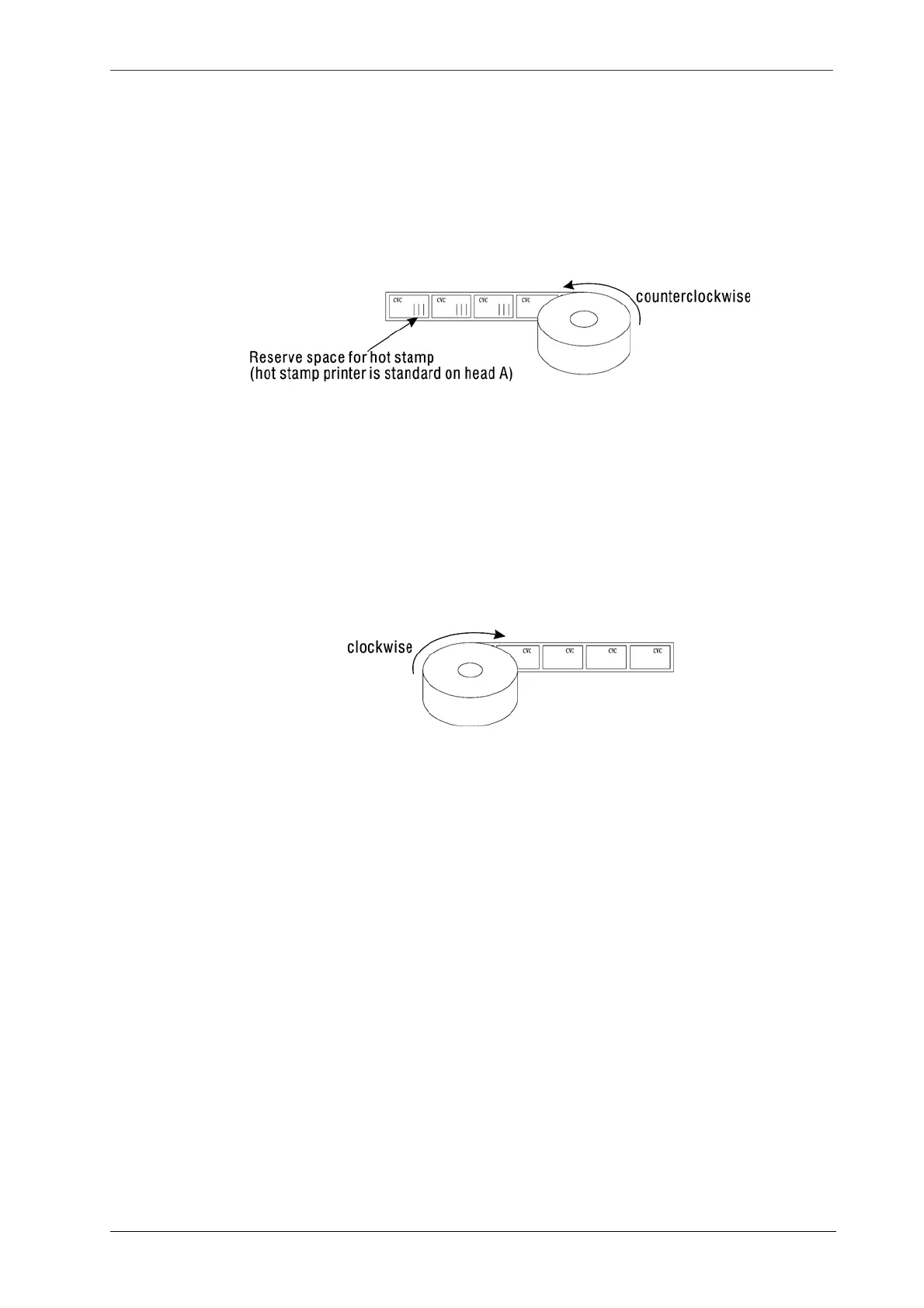

2.2.4 Label Rolled Inside (LRI) (Uncommon)
a. Label Roll for Labeling Head A:
The labels are rolled inside in a counterclockwise direction. The space for hot stamp code should be
reserved if necessary, and the hot stamp printer should be adjusted to meets this position.
2 - 5
b. Label Roll for Labeling Head B:
The labels are rolled inside in a clockwise direction.
Fig 2.2.4-1
Fi
g
2.2.4-2
