Hot Stamp Printer (Optional)
6 - 4
Stamp height adj. knob
Foil roller
Air cylinder
Control fit of type chase
Type chase
Hot stamp silicon pad
Foil ta
p
e
Ribbon brake

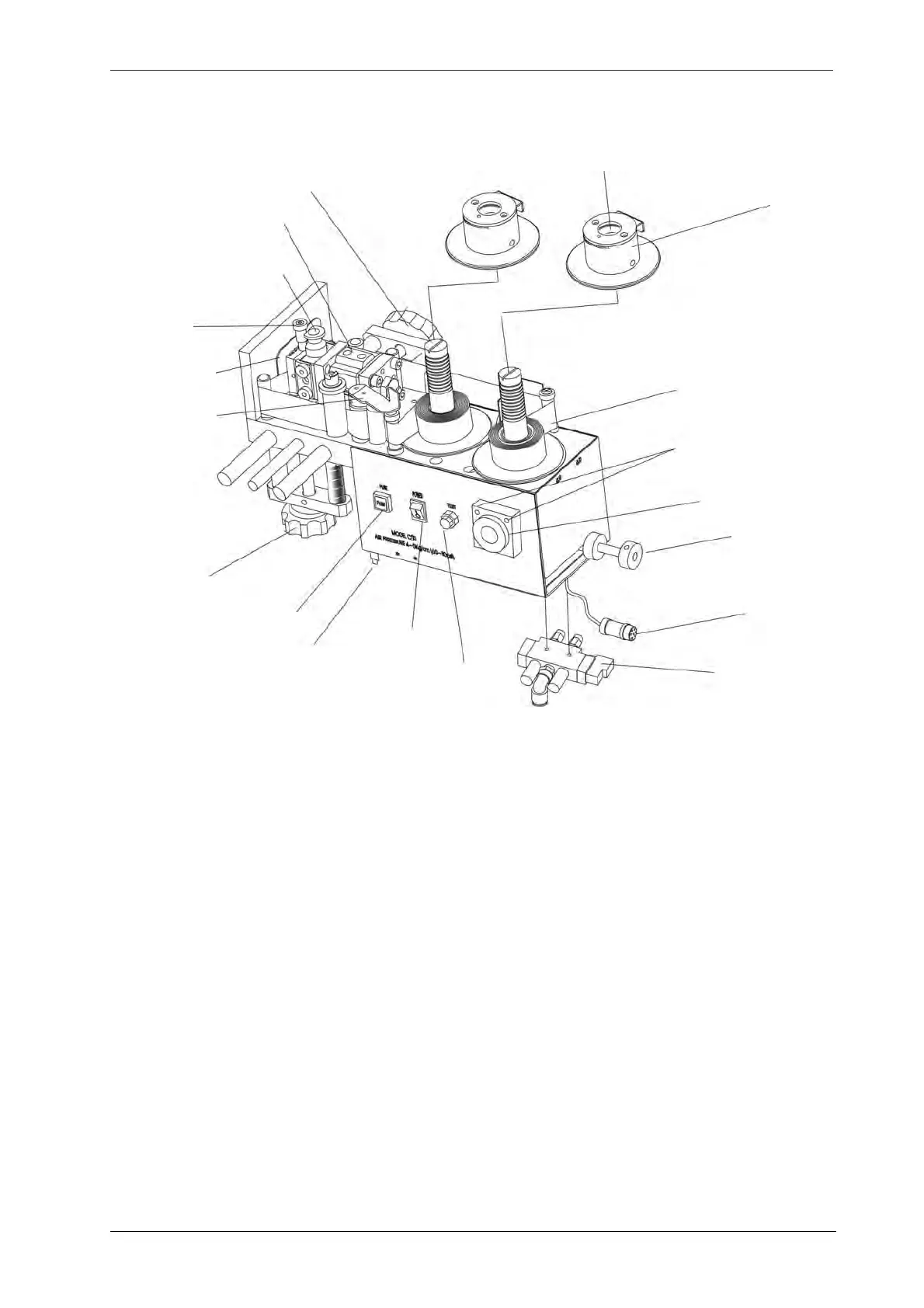

Fig 6.1-4
(Air inlet)
(Red=too low, Green=ready)
Temperature indicator
Temperature controller
Foil advance
control knob
Hot stamp horizontal
position adj. knob
Adapter
F
use
Air flow control knob
Heating switch
Solenoid valve
(60-80 psi)
Test button
