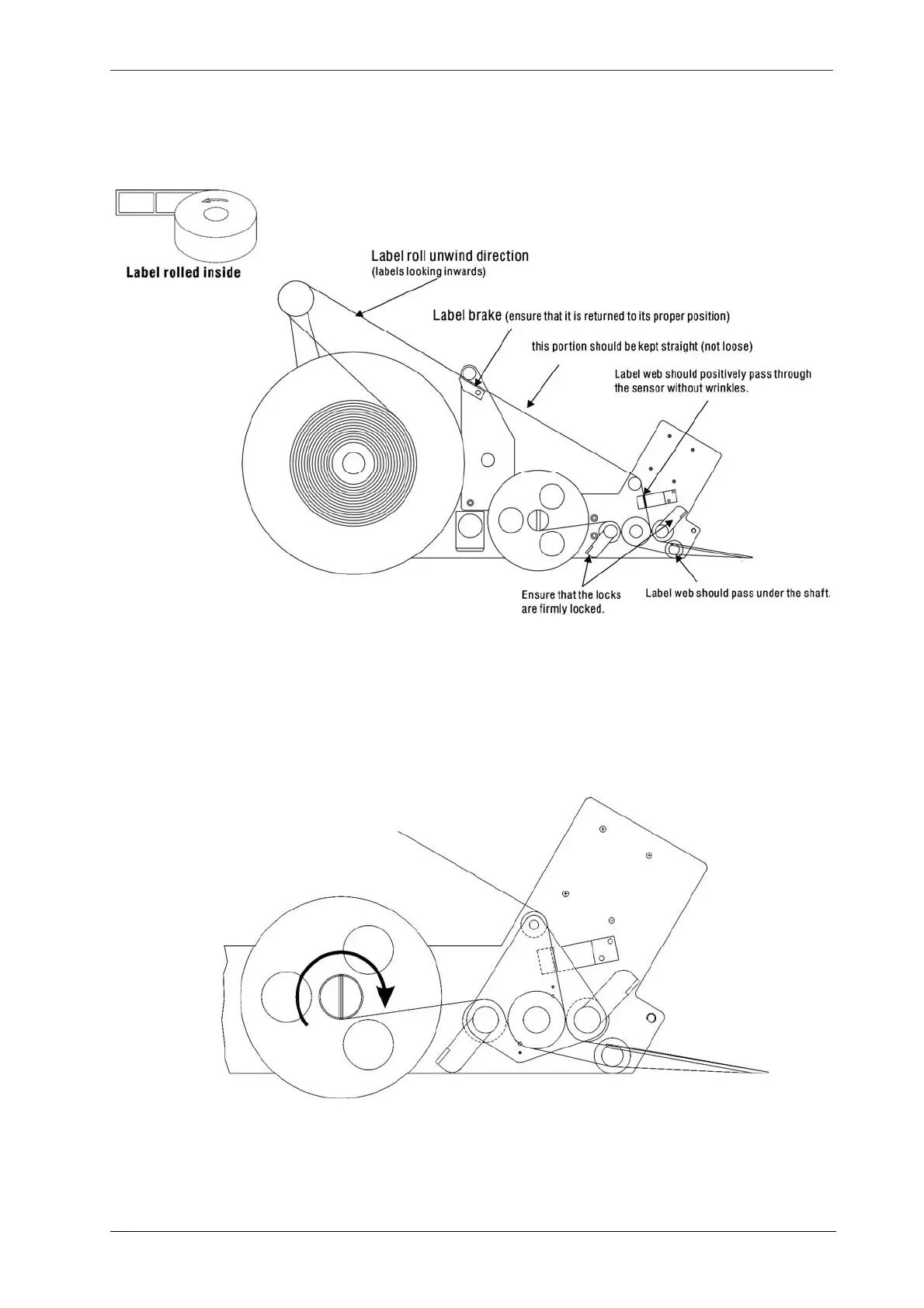

b. Label rolled inside (Copy Positions 5.6.7.8 of Label Position Chart, Fig 9.3.5).
Fig.9.2.1-2
9.2.2 Rewind Spool Tension Adjustment
Use a metal clip to fasten the label web backing paper onto the rewind spool, and then manually rotate
the rewind spool one rotation to ensure a proper attachment.
Fig.9.2.2-1
