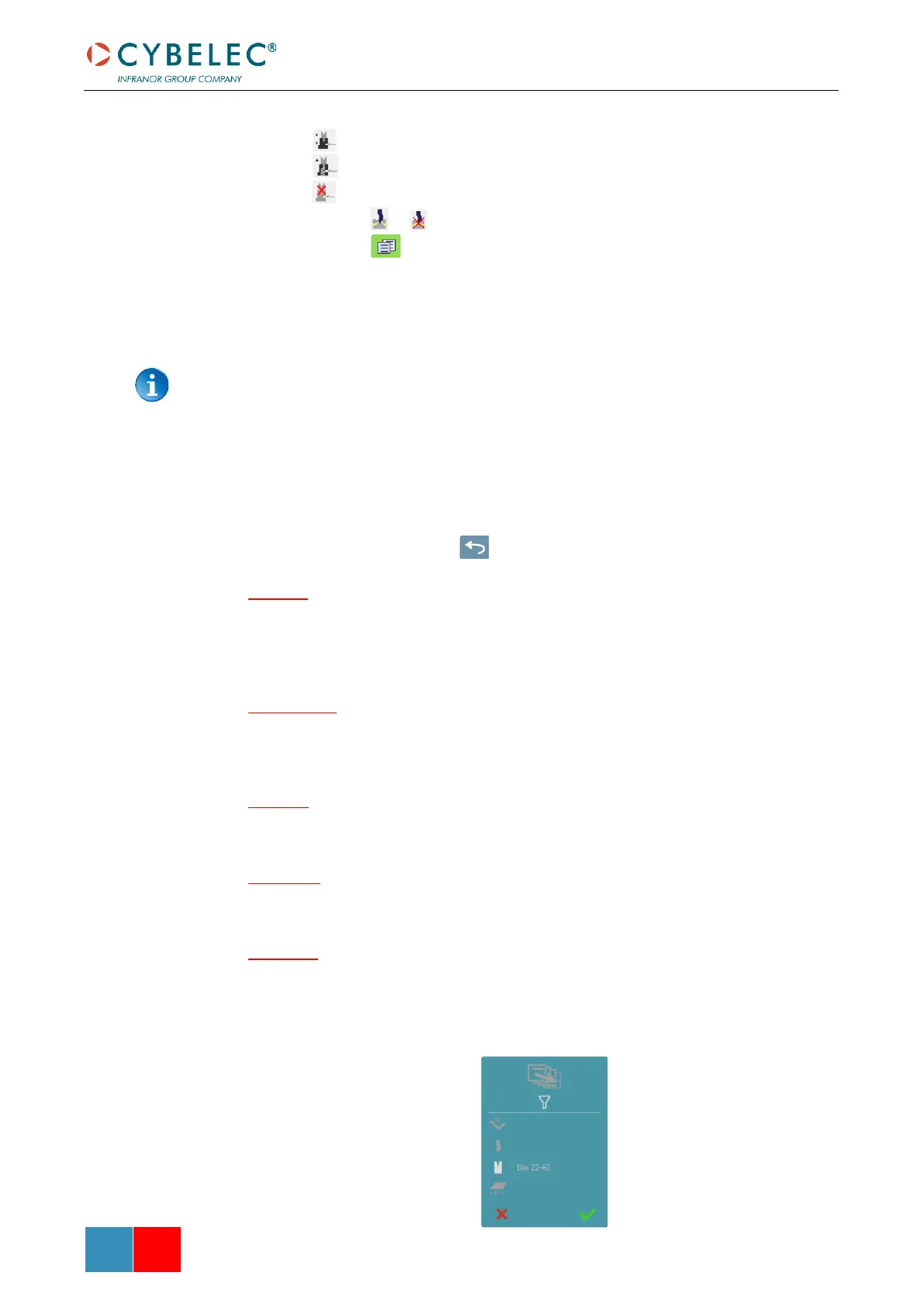

5. Select the type of Hemming table:
- Hydraulic/electric with command to open and close
- Hydraulic one direction with spring
- Not available
6. Select the or icon to define the tool as resistant for bottoming.
7. Touch the button to display the More page.
8. Enter the more specific dimensions L1 to Lx by referring to the graphic
representation on the right of the screen. Touching this image will display the
default representation of the tool, making it easier to identify the various
dimensions.
The dimensions L1 to Lx are the same as the ones used in PC 1200, DNC 880S,
ModEva’s. If you use the same tools, print them from PC1200 to easily program
them in the VisiTouch. Of course, consider giving the same tools the same name.
9. Enter the following values:
• Safety XS: Security distance between the tool and the back gauge for X axis.
• Safety RS: Security distance between the tool and the back gauge for R axis.
• Retr. zone: Retraction zone.
10. Return to previous page .
Save tool
Once a value of the die have been modified, before quit the page it is mandatory to save the
tool otherwise modifications will be lost. This operation will overwrite the existing tool
parameters.
Save tool as…
Once the tool parameters have been added or changed, you have the possibilities to save it
under another tool name.
Load tool
Change tool with another in your library.
Delete tool
Delete tool from library
Replace by
Replace tool with another in your library for all profiles in function of the applied filter:
- Angle
- Punch
- Die (by default selected previous tool to be replaced)
- Lenght
