SETTING INSTRUCTIONS:
Selecting a die is the same as selecting a punch; simply browse through the existing dies
in your library using the arrows buttons, and then return to Bend Numerical Page.

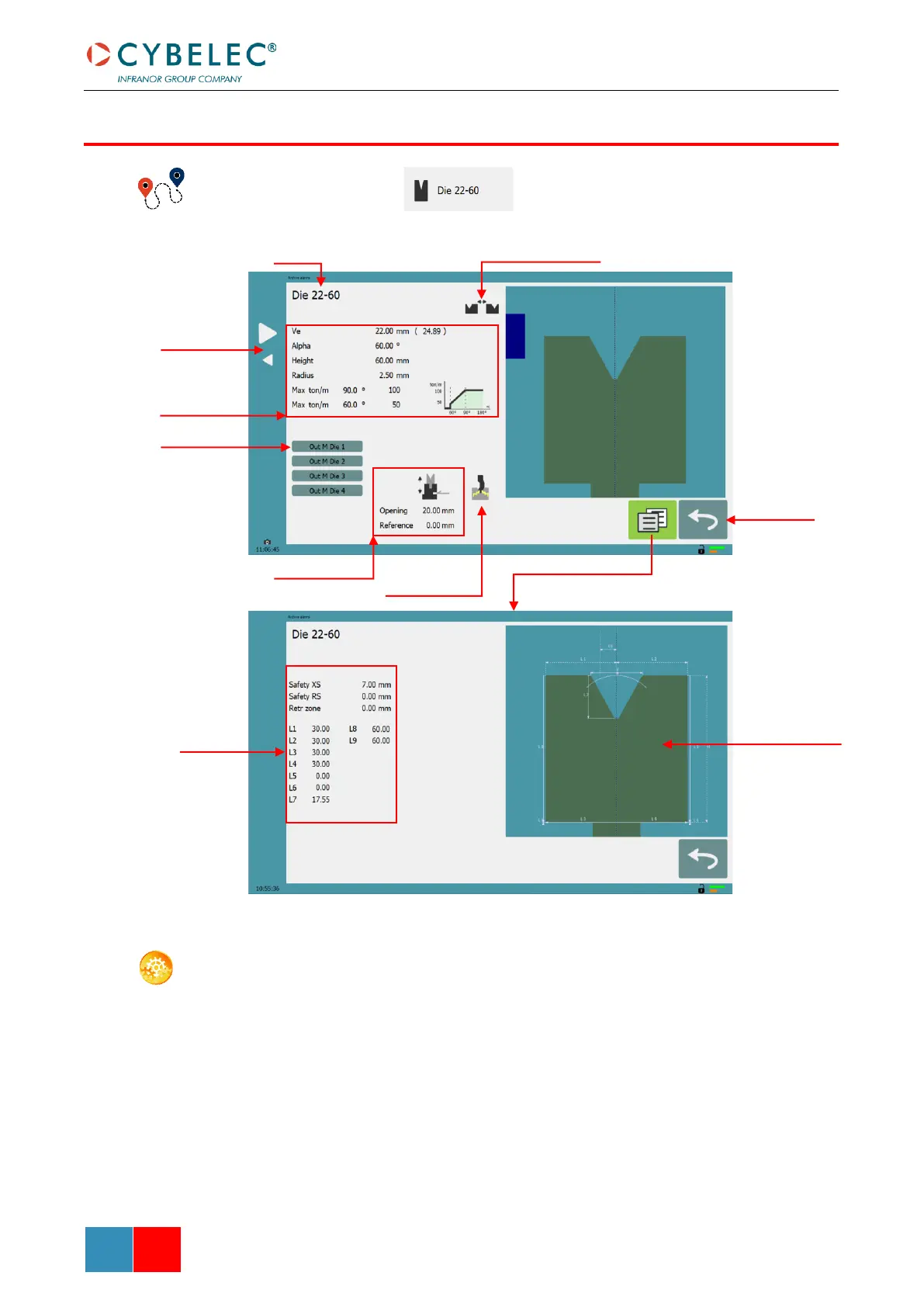

DIES
Die mounting direction
Die name
Browsing through
existing dies
Basic die data
Customizable
output signal
for multi die
position
Return to Bend
Numerical Page
Die more
specific data
Touch the die to
display its default
shape, allowing
an easier
identification of
the various
dimensions
Bottoming
Hemming
