The Bend Numerical Page is normally the working page, from which the bends are executed,
and most of the navigation originates from and leads to.
Program name
Touching the program name allows creating a new one, saving it and
more. See Managing Programs for more information.
Current step (sequence) number
Touching the step number will open a pop-up window as shown here, with
3 different actions to choose from:
• Insert step: this function will insert a step after the current one.
• Delete step: this function will erase the current step.
• Go to step: this function allows jumping directly to the desired step.
• Skip step: this function will skip the current bend
The Insert step and Delete step functions cannot be used on parts created with the
TouchProfile Mode.

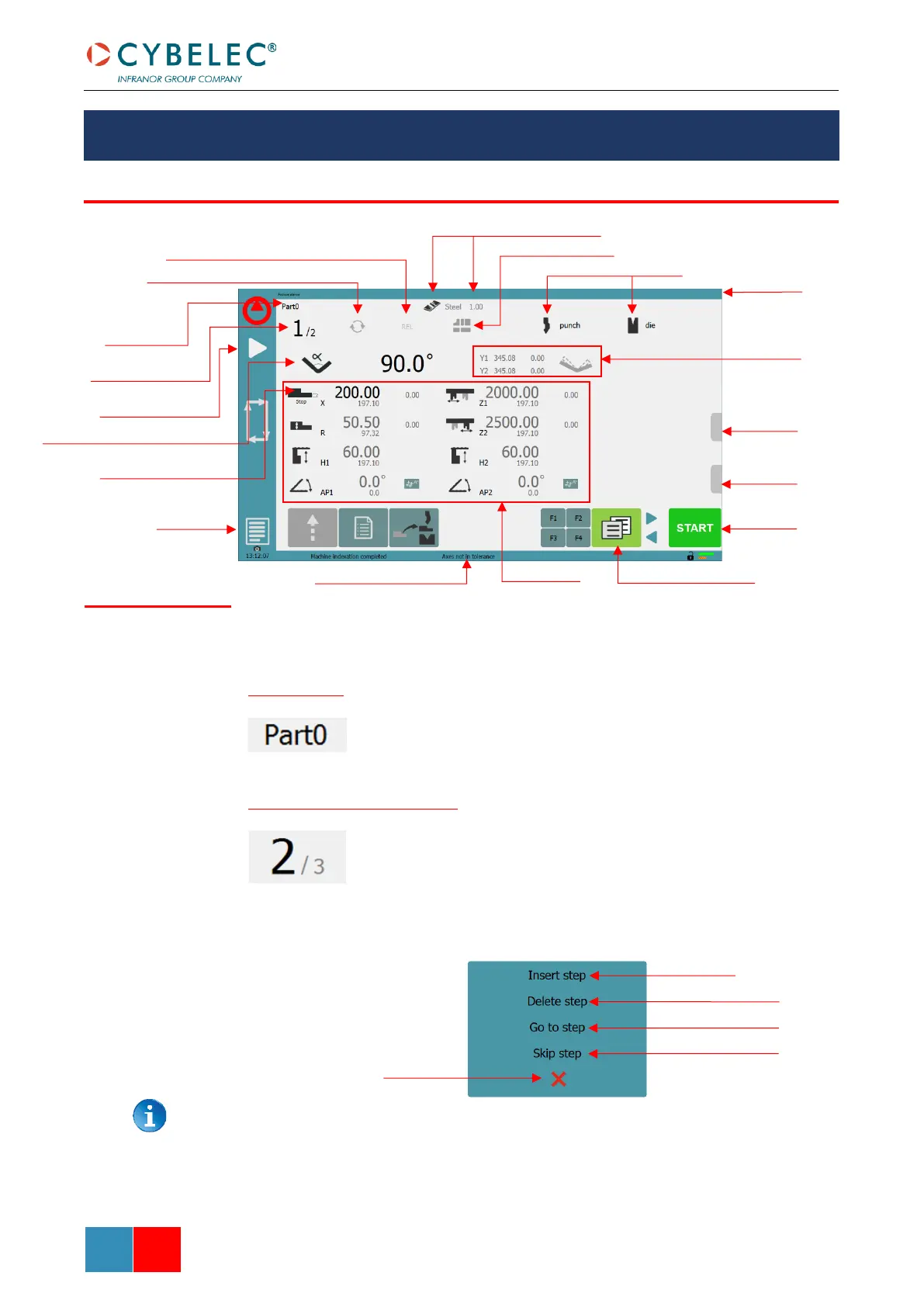

BASIC PAGE DESCRIPTION
BEND NUMERICAL PAGE
Menu Button
Start – Stop - Index
Interactive
message line
Bending and
Corrections
Tool management
Repeat sequence button (inactive here)
Current step
(sequence) number
Program name
Add step or next step
Extra bending parameters
Current activity information
Available
functions on the
Bend Num page
Insert step here
Delete current step here
Go to selected step here
Close window
User
buttons tab
Quick
access tab
Back-gauge finger type
Set-point beam (Y axis) / bend angle
Set-point back gauge (X axis) / flange length
Material used and thickness
Optional axis
Station management
Skip the current step here
