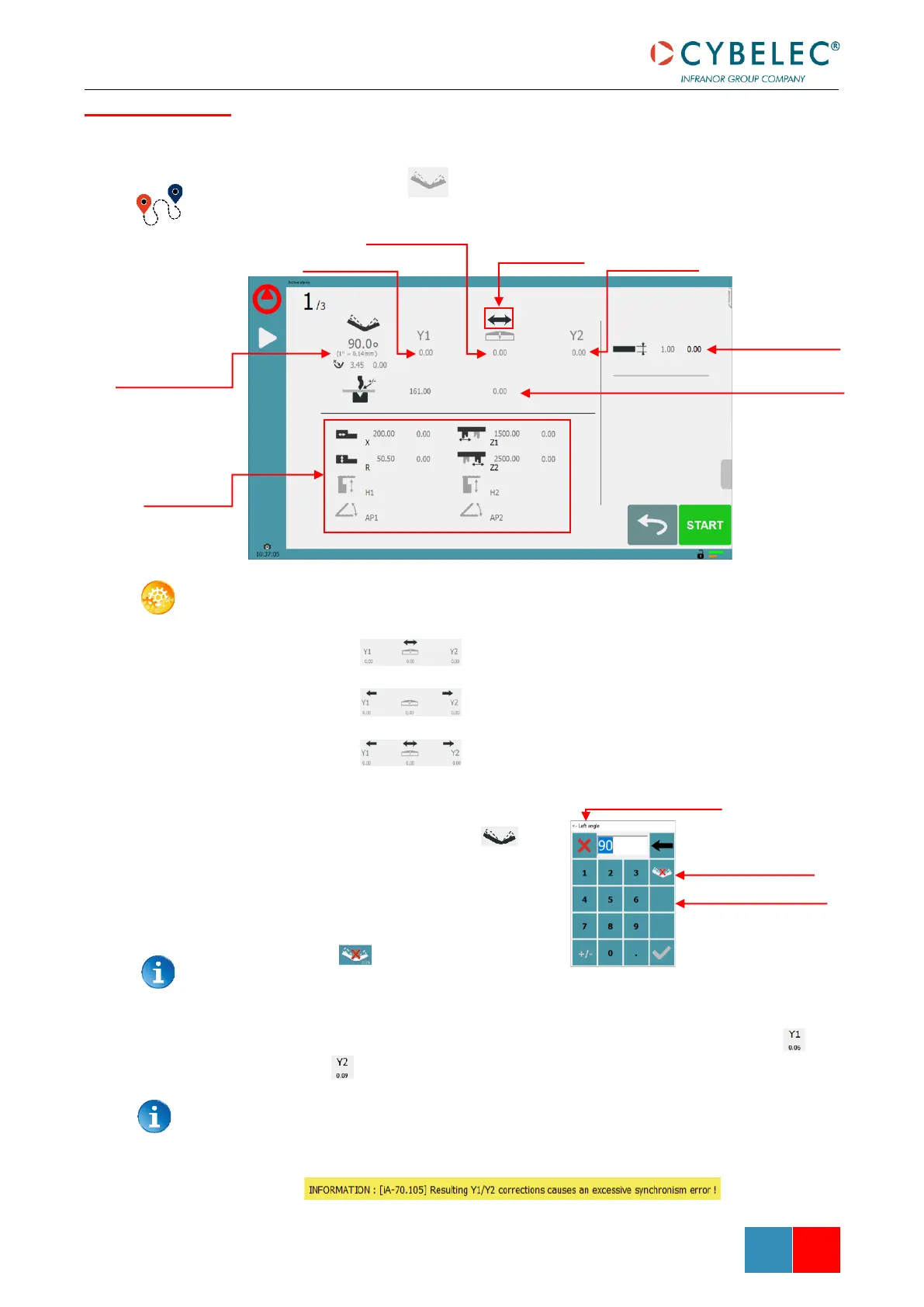

After physically measuring the angle, if corrections are to be made, they must be done on
this page, and not directly in the program step.
Bend Numerical Page →
SETTING INSTRUCTIONS:
1. Select the correction mode:
• Equal correction in both Y1 and 2 axes
• Specific corrections to the Y1 and Y2 axis
• Specific correction to the Y1 axis, Crowning and Y2 axis
2. Touch the angle correction icon
and enter the physically measured
value of the angle. The numerical
control will automatically calculate the
Y1 and Y2 axes corrections.
Pressing this button will reset all angle
corrections.
3. Depending on the position of the sheet metal in the press, it may be necessary to
fine-tune the beam’s corrections. It is possible by simply touching this icons or
this one and entering the desired values.
4. Depending on the length part and the machine size, the corrections are calculated
in their respective ends of the machine Y1 and Y2 cylinders. It can happen that the
corrections are too important and the beam touch the limit of synchronism
between Y1 and Y2 axes, in this case a message error appear:
