CYBELEC VisiPac Series User Manual

User Manual – Visipac & VisiTouch Series
VisiPac & VisiTouch series – User Manual
MAR.
2021
V1.0
40/69

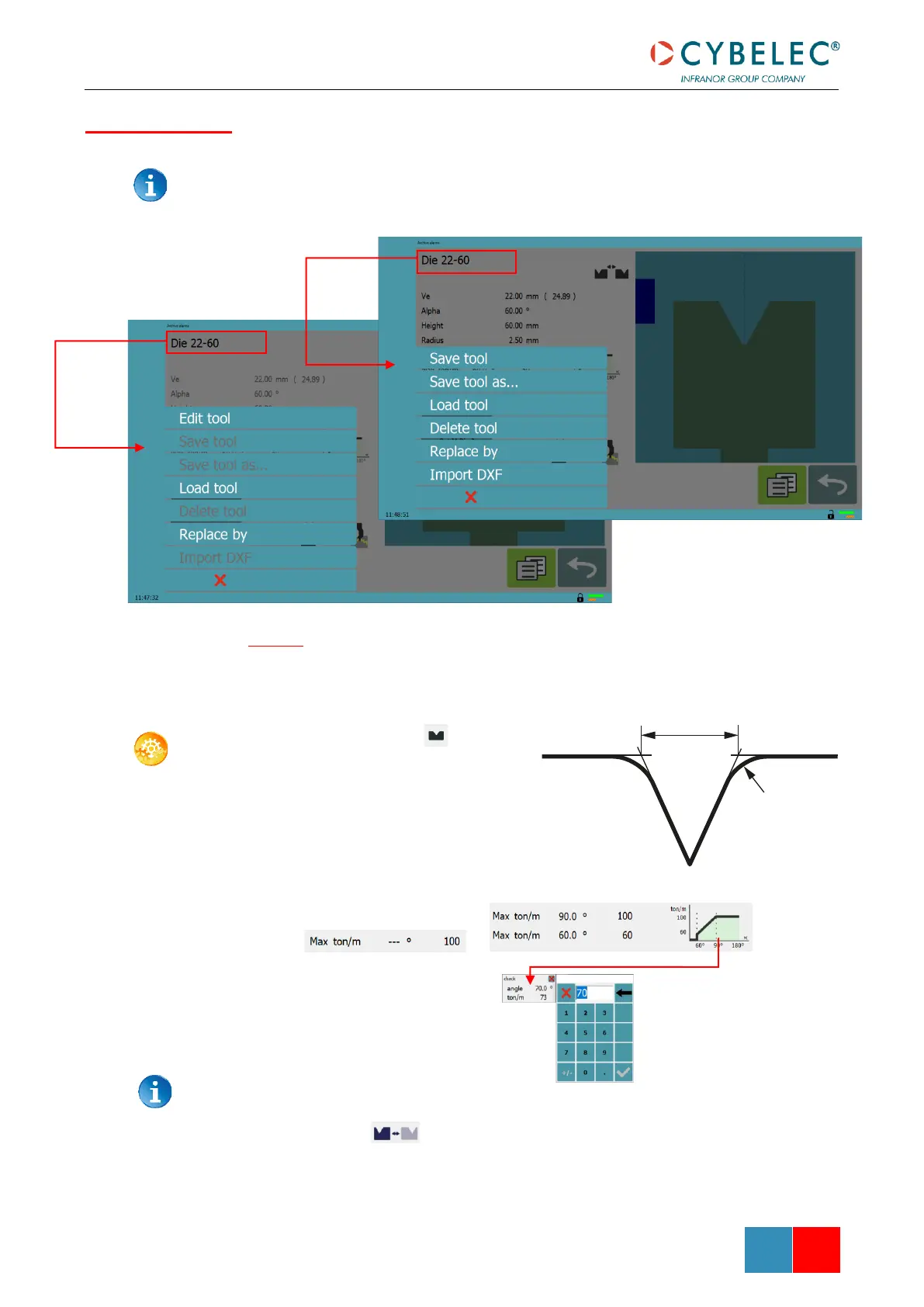

To be allowed to Edit, Save, Delete and Import tool, a level 2 password is required.
Load tool and Replace by can be done by the operator without level access.
Edit tool
If no die is yet created, the die will have no name (??? is displayed). If a die already exists,
then the last one used will be selected, here Die 22-60 (modifications will not alter the
existing die as they will be saved under another name).
1. Touch the die icon to access
the die details.
2. Enter the basic characteristics
(Ve (die width), α, Height, Radius
and Max ton/m) for the new die
to be created.
3. Enter an angle in Max ton/m to
configure the curve of ton/m in
function of the angle
→
Press in the graph enter an angle and check the calculated Ton/m
4. Touch the button to invert the die if necessary.
Punches options
No restrictions
Access
Level 2 required
Ve
Ve
R
N
a
mi
ng
To
ol
s
R
