D-Link DNS-320L User Manual

21D-Link ShareCenter DNS-320L User Manual
Section 3 - Installation

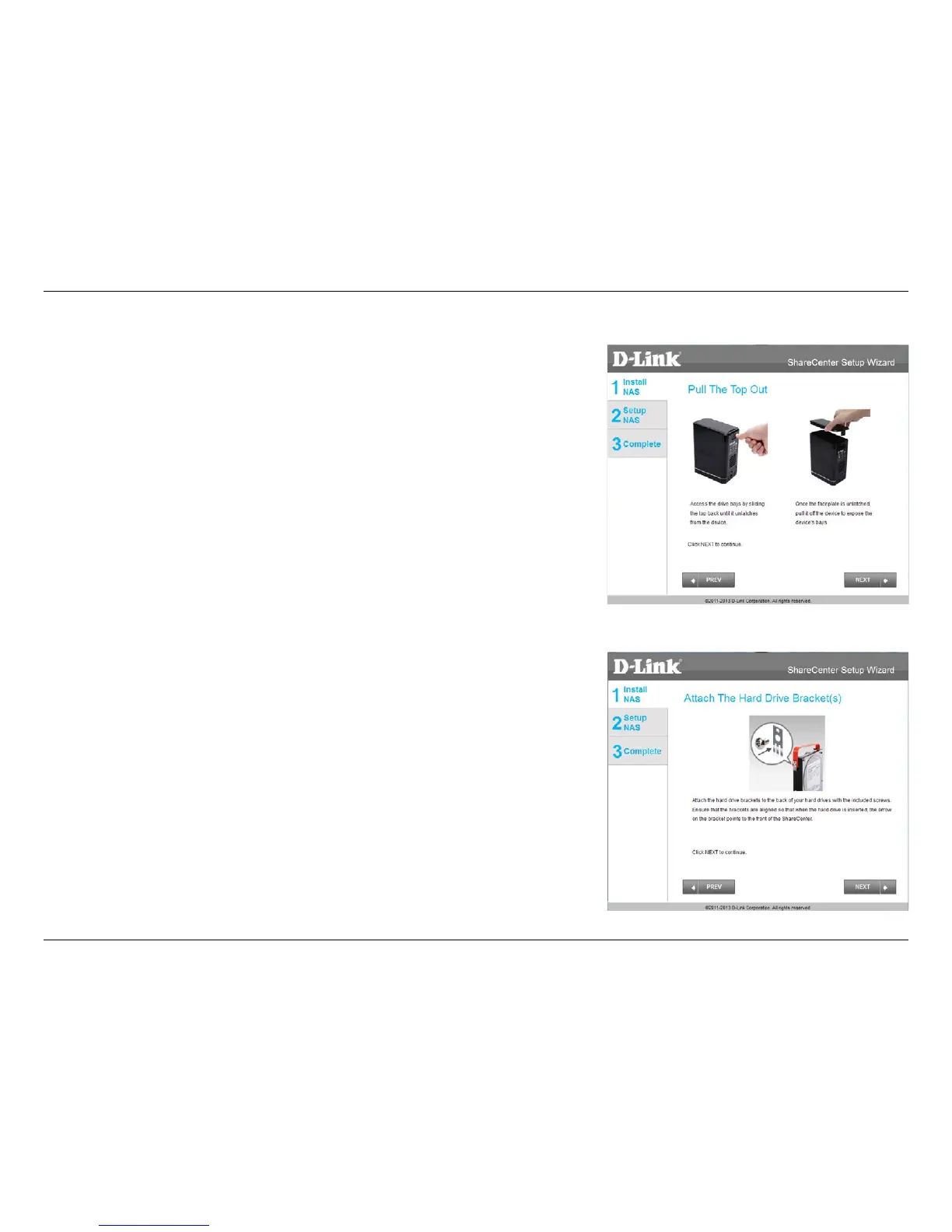

Follow the instructions to remove the top cover of your ShareCenter.
Click Next to continue.
Installing the Hard Drives
Attach the hard drive bracket(s) to the side of the hard drives as indicated.
Click Next to continue.

D-Link DNS-320L Specifications

Power

power supply	External DC 12 V / 3 A
power saving mode	Auto power recovery
scheduled power off	Supported

Operating Environment

operating temperature	32 to 104 ˚F (0 to 40 ˚C)
storage temperature	-4 to 158 ˚F (-20 to 70 ˚C)
humidity	5% to 90% non-condensing

Ports & Interfaces

ethernet port	1 x 10/100/1000 Gigabit
usb port	1 x USB 2.0
connection to UPS	Supported through USB port

Weight and Dimensions

weight	0.25 lbs
dimensions	3.54” x 5.68” x 7.6”
dimensions (mm)	90 x 144.3 x 193.3 mm
