D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
98

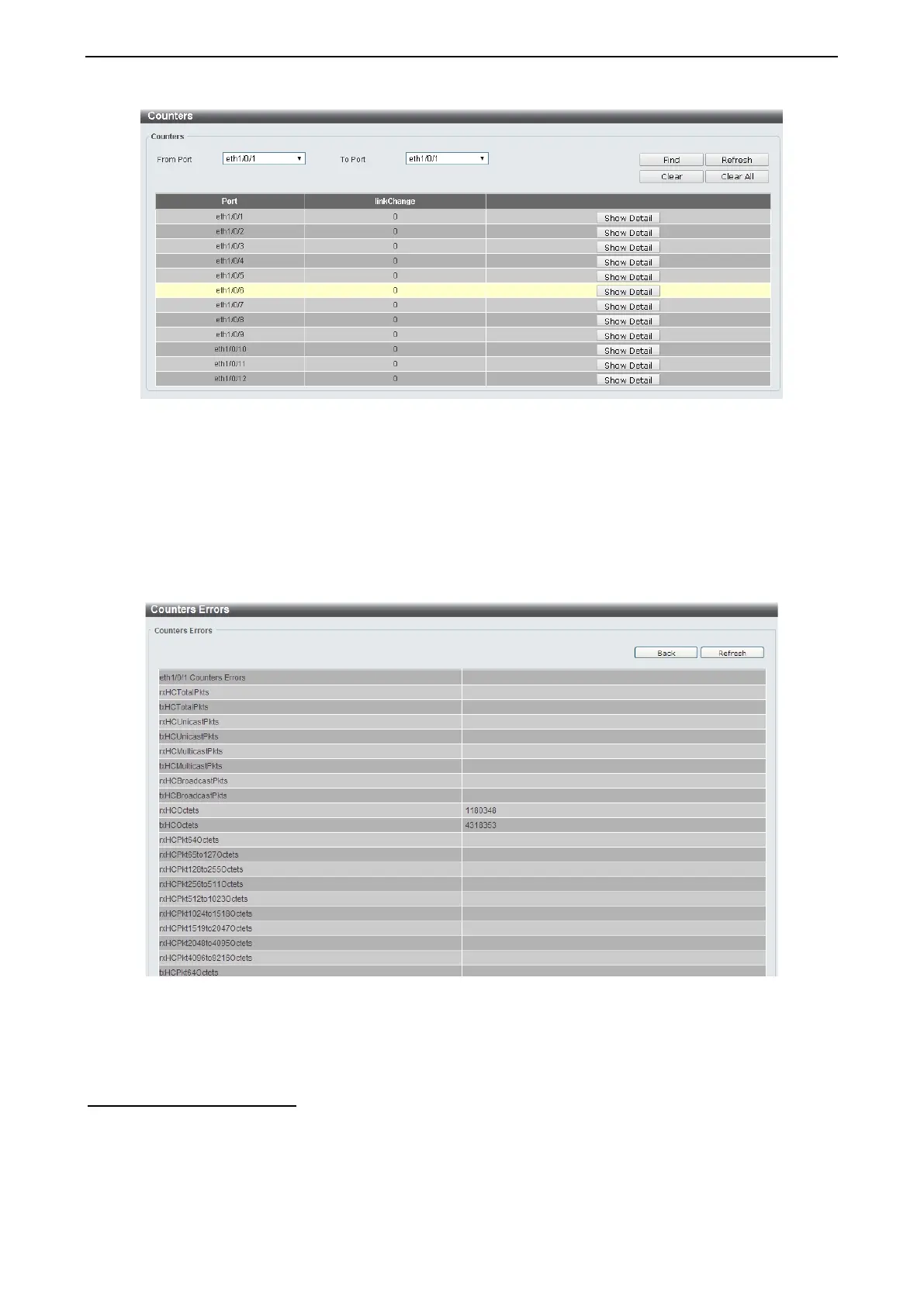

Figure 4.167 – Monitoring > Statistics > Counters
From Port / To Port: Select the range of ports to be configured.
Click the Find button to locate a specific entry based on the information entered.
Click the Refresh button to refresh the display table.
Click the Clear button to clear all the information for the specific ports.
Click the Clear All button to clear all the information in this table.
Click the Show Detail button to see the detail information of the specific port.
After clicking the Show Detail button, the following page will appear.
Figure 4.168 – Monitoring > Statistics > Counters – Show Detail
Click the Back button to return to the previous window.
Click the Refresh button to refresh the display table.
Monitoring > Mirror Settings
The Mirror Settings page allows you to view and configure the mirror feature’s settings.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
