D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
54
and IPv6.
Action: Select to remove or add the action field.
Address: Enter the IP address to be sent.
Click Apply to accept the changes made.

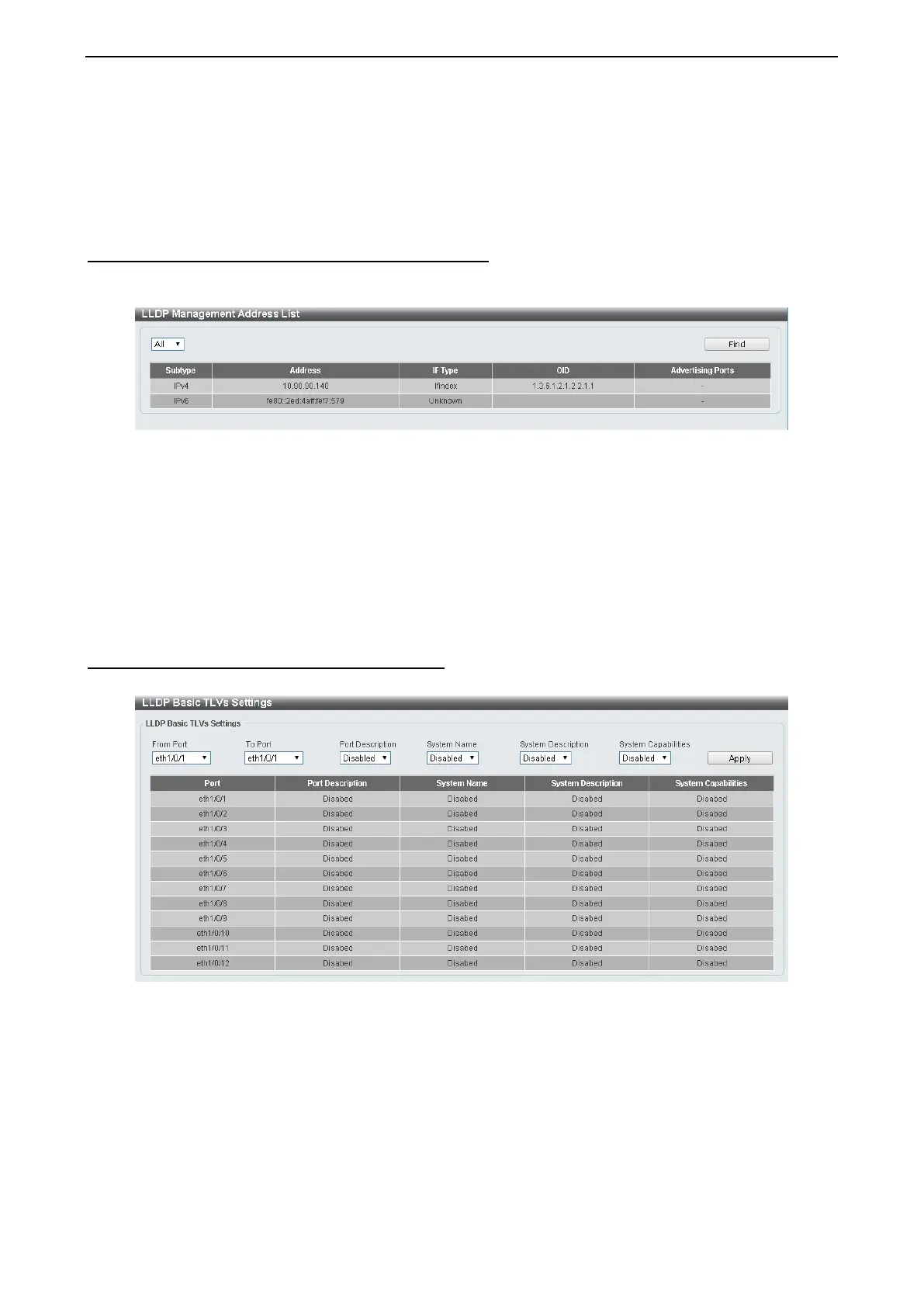

L2 Features > LLDP > LLDP Management Address List
The LLDP Management Address List page displays the detailed management address information for the
entry.
Figure 4.89 – L2 Features > LLDP >LLDP Management Address List
Management Address: Select IPv4, IPv6 or All address to be displayed. Click Find and the table will update
and display the values required.
Subtype: Displays the managed address subtype. (e.g., MAC or IPv4)
Address: Displays the IP address.
IF Type: Displays the IF Type.
OID: Displays the SNMP OID.
Advertising Ports: Displays the advertising ports.
L2 Features > LLDP > LLDP Basic TLVs Settings
This LLDP Basic TLVs Settings page allows you to configure the LLDP Port settings.
Figure 4.90 – L2 Features > LLDP > LLDP Basic TLVs Settings
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Port Description: Select to enable or disable the Port Description option.
System Name: Select the system name to be enabled or disabled in the LLDP port. If select is Enabled,
users can specifies the content of system Name or all.
System Description: Select to enable or disable the System Description option.
System Capabilities: Select to enable or disable the System Capabilities option.
Click Apply to accept the changes made.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
