D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
8
8
7
7

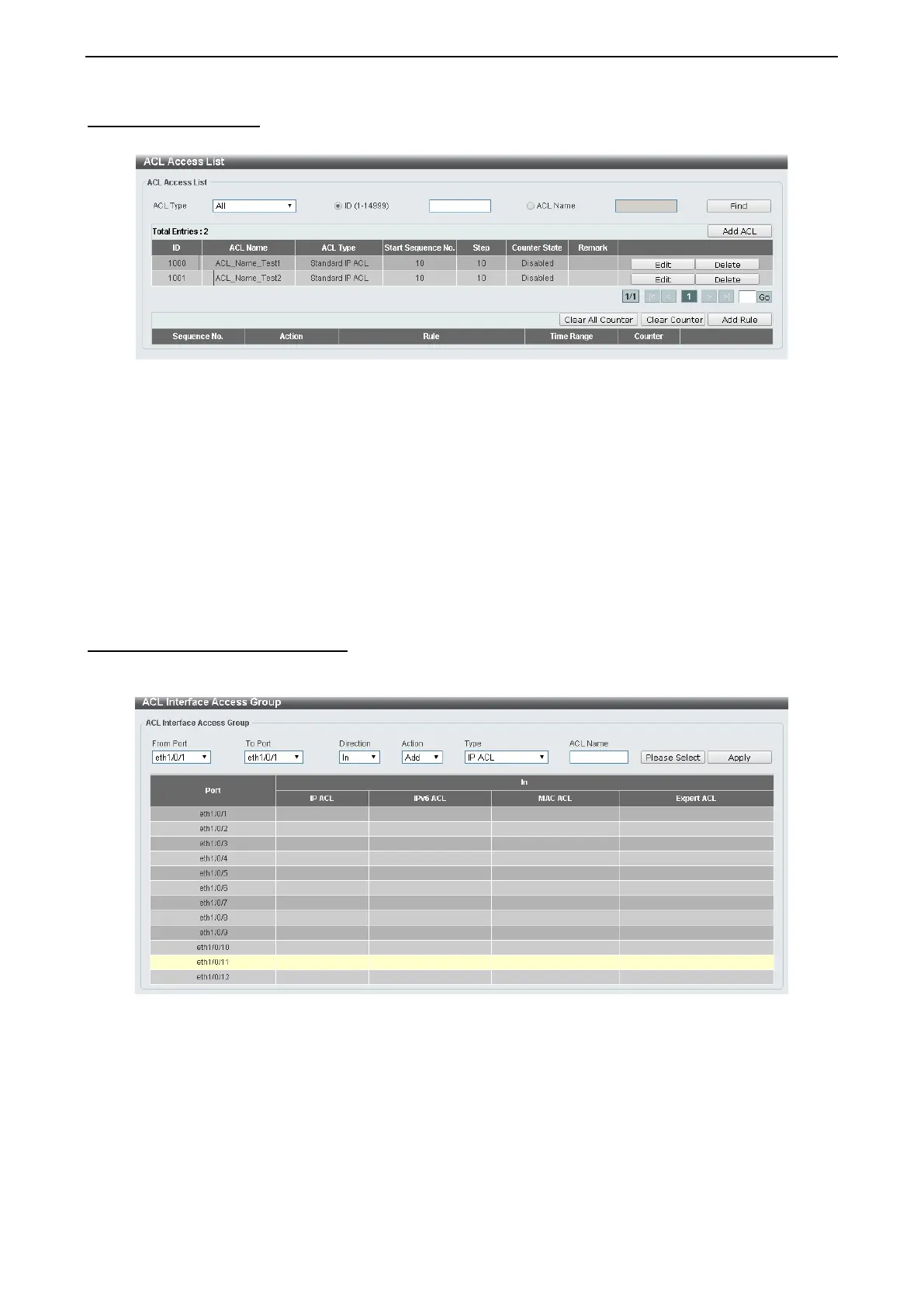

ACL > ACL Access List
The ACL Access List page allows you to view and configure the ACL access list settings.
Figure 4.146 – ACL > ACL Access List
ACL Type: Select the ACL profile type to find. Options to choose from are All, IP ACL, IPv6 ACL, MAC
ACL, and Expert ACL.
ID (1-14999): Select and enter ACL ID. The range is between 1 and 14999.
ACL Name: Select and enter ACL name. The name can be up to 32 characters long.
Click the Find button to locate a specific entry based on the information entered.
Click the Add ACL button to create a new ACL profile.
Click the Clear All Counter button to clear all the counter information displayed.
Click the Clear Counter button to clear the counter information for the rule displayed.
Click the Add Rule button to create an ACL rule for the ACL profile selected.
ACL > ACL Interface Access Group
The ACL Interface Access Group page allows you to view and configure the ACL interface access group
settings.
Figure 4.147 – ACL > ACL Interface Access Group
From Port / To Port: Select the range of ports to be configured.
Direction: Select the direction.
Action: Select the action to be Add or Delete.
ACL Type: Select the ACL profile type to find. Options to choose from are All, IP ACL, IPv6 ACL, MAC
ACL, and Expert ACL.
ACL Name: Enter ACL name. The name can be up to 32 characters long.
Click the Apply button to save your settings.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
