D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
34
Management > D-Link Discover Protocol Settings
The D-Link Discover Protocol Settings page allows you to configure and display D-Link Discovery Protocol
(DDP).

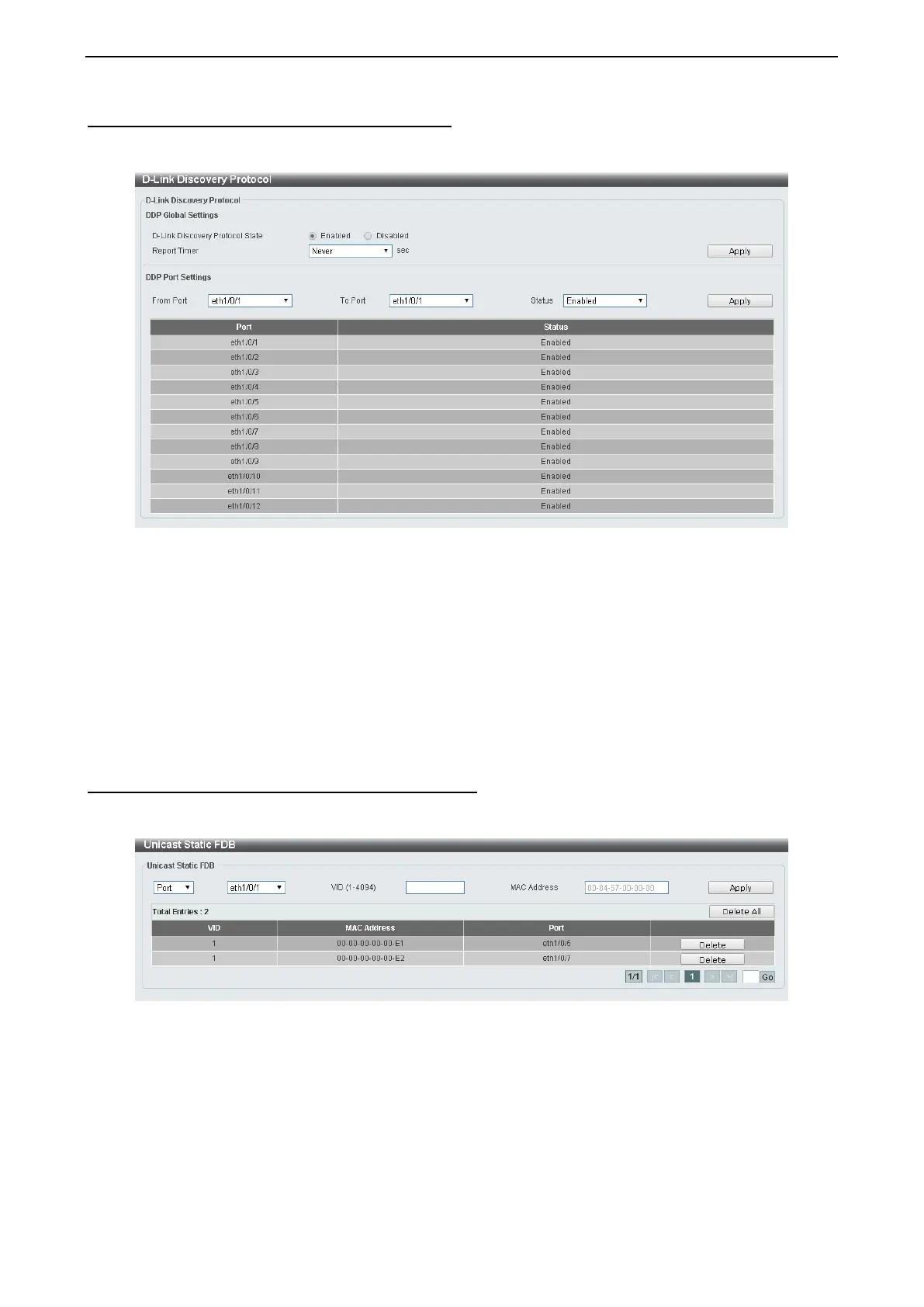

Figure 4.56 – Management > D-Link Discover Protocol Settings
D-Link Discovery Protocol State: Enter the enable or disable the D-Link Discovery Protocol state.
Report Timer: Specify the interval in seconds between two consecutive DDP report messages. Options to
choose from are 30, 60, 90,120, and Never.
DDP Port Settings:
From Port / To Port: Enter the appropriate port range used for the configuration.
State: Select to enable or disable the DDP port state.
Click the Apply button to save your settings.
L2 Features > FDB > Static FDB > Unicast Static FDB
The Unicast Static FDB page allows you to view and configure the static unicast forwarding settings on the
Switch.
Figure 4.57 – L2 Features > FDB > Static FDB > Unicast Static FDB
Port / Drop: Allows the selection of the port number on which the MAC address entered resides. This option
could also drop the MAC address from the unicast static FDB. When selecting Port, select the switch unit
and port number.
VID (1-4094): Enter the VLAN ID on which the associated unicast MAC address resides.
MAC Address: Enter the MAC address to which packets will be statically forwarded or dropped. This must
be a unicast MAC address.
Click the Apply button to save your settings or click the Delete All button to delete all the entries found in the
display table.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
