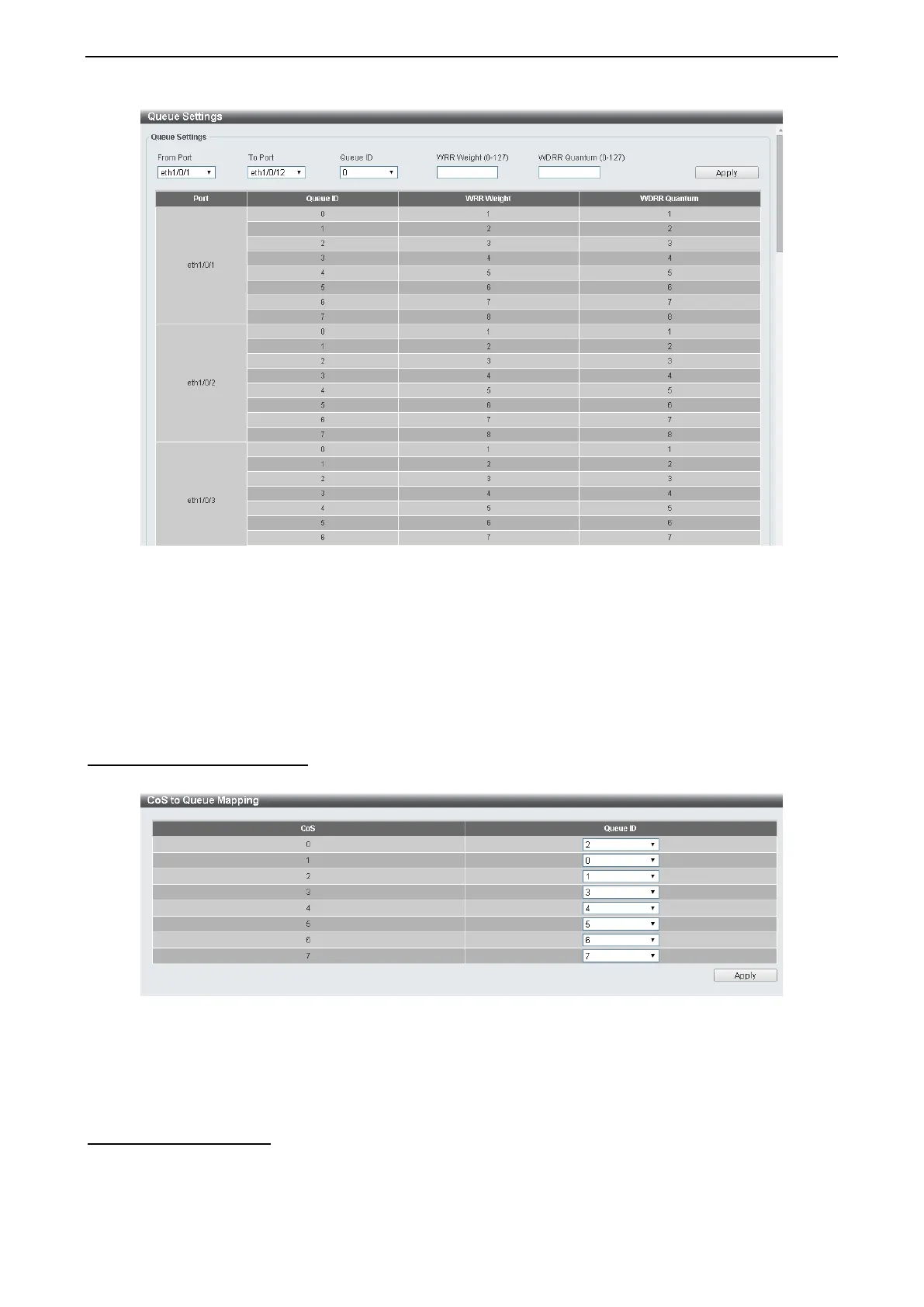

Figure 4.113 – QoS > Queue Settings
From Port / To Port: Select the range of ports to be configured.
Queue ID: Select the queue id value. The range is between 0 and 7.
WRR Weight (0-127): Enter the WRR weight value. The value is between 0 and 127.
WDRR Quantum (0-127): Enter the WRR quantum value. The value is between 0 and 127.
Click the Apply button to save your settings.
QoS > CoS to Queue Mapping
The CoS to Queue Mapping page allows you to view and configure the CoS-to-Queue mapping settings.
Figure 4.114 – QoS > CoS to Queue Mapping
Queue ID: Select the queue ID that will be mapped to the corresponding CoS value. The value is from are 0
to 7.
Click the Apply button to save your settings.
QoS > Port Rate Limiting
The Port Rate Limiting page allows you to view and configure the port rate limiting settings.
