4 Configuration D-Link DXS-1210 Series User Manual
90
VID (1-4094): Enter the VLAN ID. The range is between 1 and 4094.
Click the Add button to add a new entry based on the information entered.
Click the Delete button to remove a new entry based on the information entered.
Click the Clear by Port button to clear the information based on the port selected.
Click the Clear by MAC button to clear the information based on the MAC address entered.
Click the Clear All button to clear all the information in this table.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Security > DHCP Server Screening > DHCP Server Screening Global Settings
DHCP Server Screening function allows you to restrict the illegal DHCP server by discarding the DHCP
service from distrusted ports.

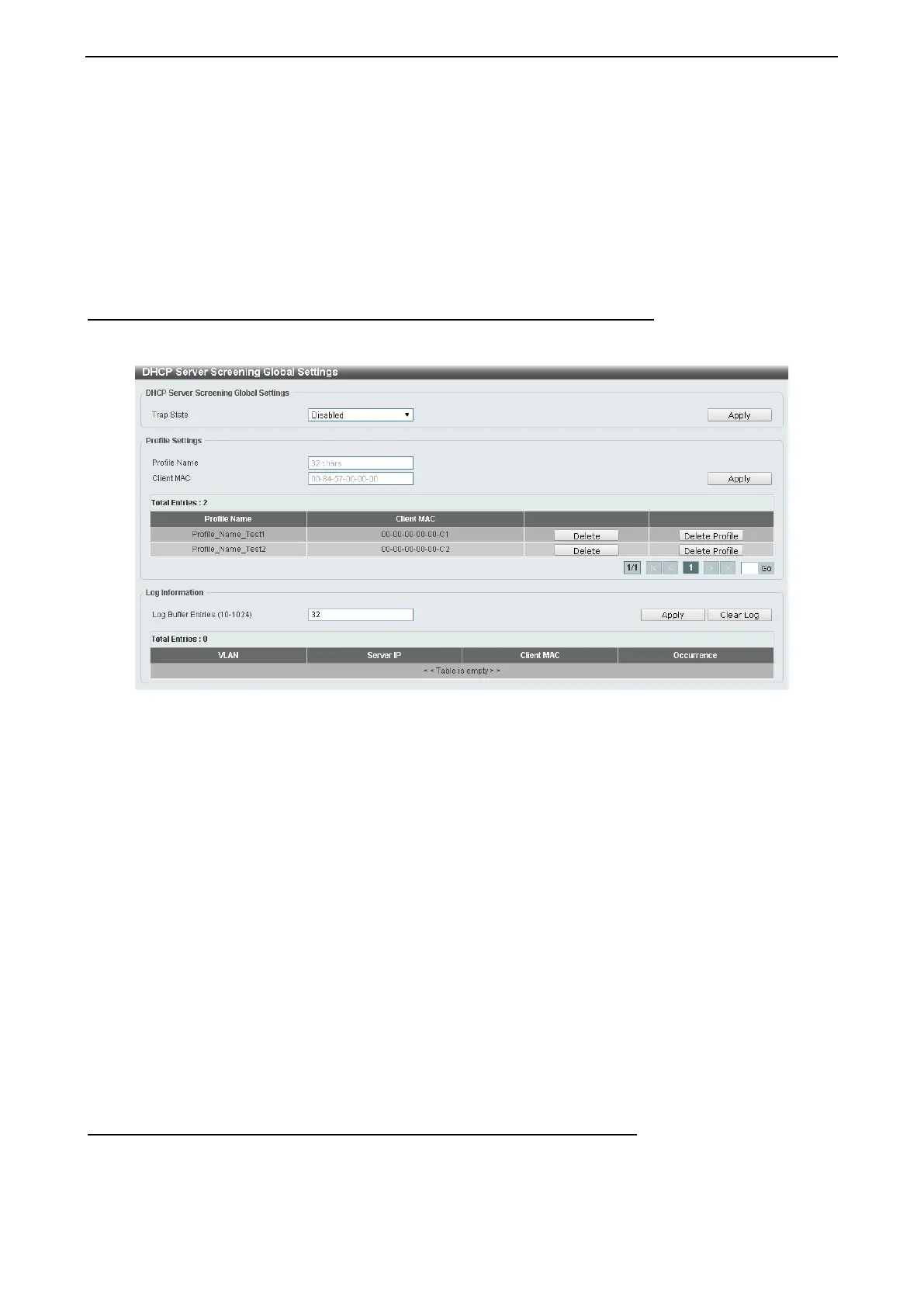

Figure 4.152 – Security > DHCP Server Screening > DHCP Server Screening Global Settings
DHCP Server Screening Global Settings:
Trap State: Select to enable or disable the trap state.
Click the Apply button to save your settings.
Profile Settings:
Profile Name: Enter the profile name.
Client MAC: Enter the MAC address.
Click the Delete button to remove the specified entry of the table.
Click the Delete Profile button to remove the specified profile.
Click the Apply button to save your settings.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Log Information:
Log Buffer Entries (10-1024): Enter the logged buffer entries. The value is between 10 and 1024.
Click the Apply button to save your settings.
Click the Clear Log button to clear the log.
Security > DHCP Server Screening > DHCP Server Screening Port Settings
The DHCP Server Screening Port Settings page allows you to view and configure the DHCP server
screening port settings.
