D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
32

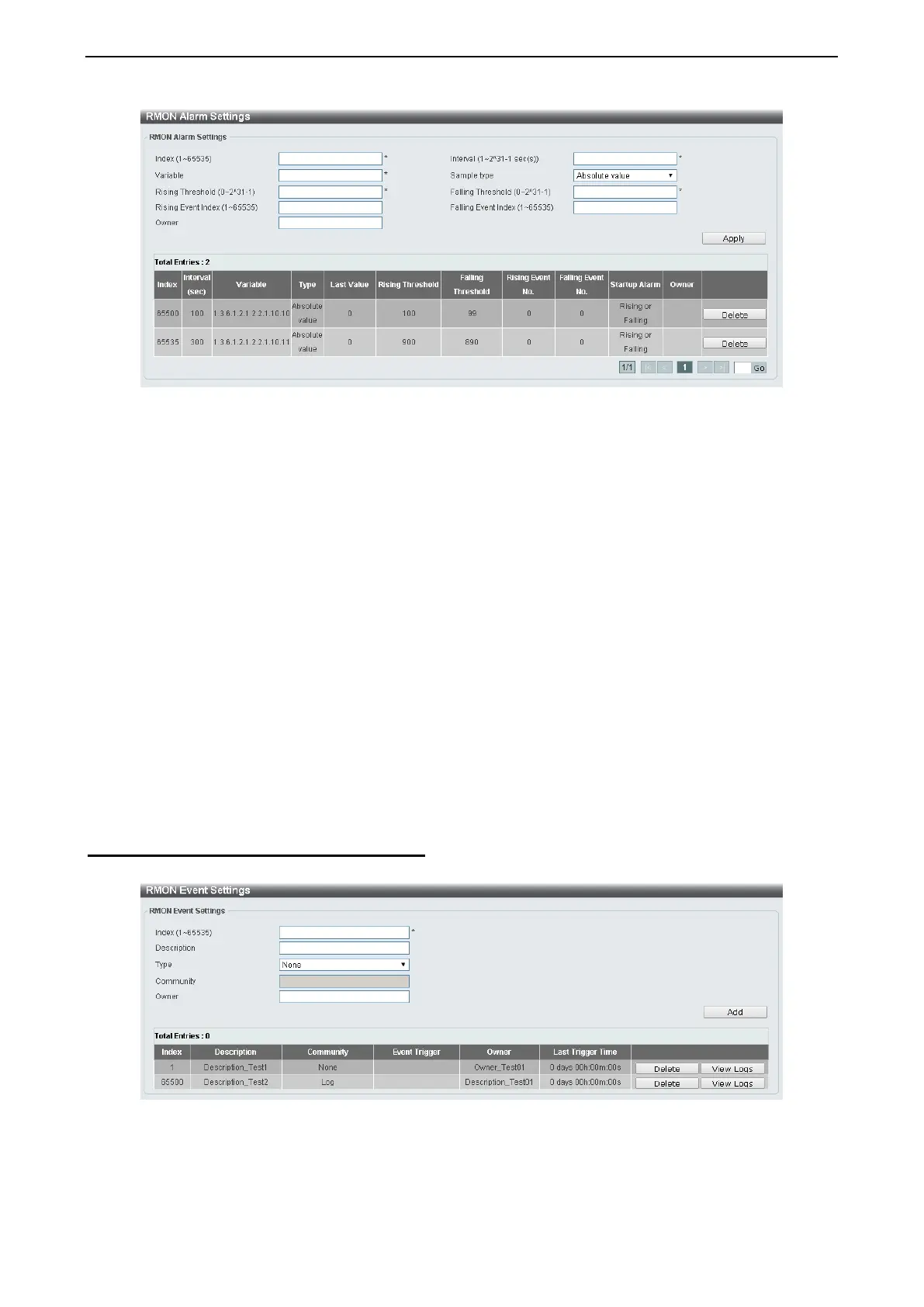

Figure 4.52 – Management > RMON > RMON Alarm Settings
The configuration contains the following fields:
Index (1 - 65535): Enter a specific alarm.
Variable: Select the selected MIB variable value.
Rising Threshold (0 ~ 2^31-1):
Displays the rising counter value that triggers the rising threshold alarm.
Rising Event Index (1 ~ 65535):
Displays the event that triggers the specific alarm. The possible field values are
user defined RMON events.
Owner:
Displays the device or user that defined the alarm.
Interval (1 ~ 2^31-1):
Defines the alarm interval time in seconds.
Sample type: Defines the sampling method for the selected variable and comparing the value against the
thresholds. The possible field values are:
Delta value – Subtracts the last sampled value from the current value. The difference in the values
is compared to the threshold.
Absolute value – Compares the values directly with the thresholds at the end of the sampling
interval.
Falling Threshold (0 ~ 2^31-1):
Displays the falling counter value that triggers the falling threshold alarm.
Falling Event Index (1 ~ 65535):
Displays the event that triggers the specific alarm. The possible field values are
user defined RMON events.
Click Apply to activate your alarm entry.
Management > RMON > RMON Event Settings
The RMON Event Settings page contains fields for defining, modifying and viewing RMON event statistics.
Figure 4.53 – Management > RMON > RMON Event Settings
The RMON Events Page contains the following fields:
Index (1~ 65535): Enter the event index.
Description: Enter an event description.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
