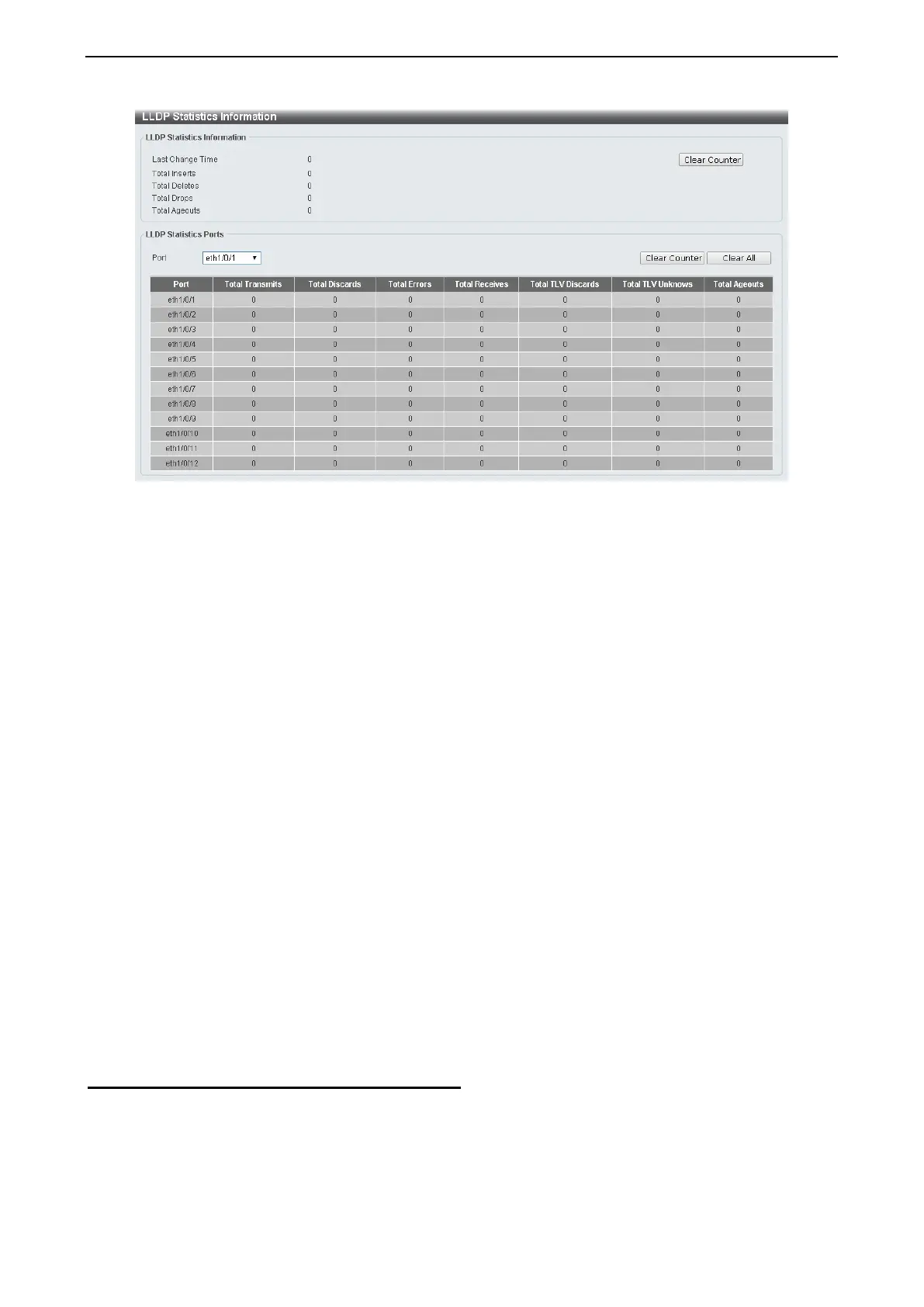

Figure 4.94 – L2 Features > LLDP > LLDP Statistics Information
The following information can be viewed:
LLDP Statistics Information: Displays the counters that refer to the whole switch.
Last Change Time – Displays the time for when the last change entry was last deleted or added. It
is also displays the time elapsed since last change was detected.
Total Inserts – Displays the number of new entries inserted since switch reboot.
Total Deletes – Displays the number of new entries deleted since switch reboot.
Total Drops – Displays the number of LLDP frames dropped due to that the table was full.
Total Ageouts – Displays the number of entries deleted due to Time-To-Live expiring.
LLDP Statistics Ports: Displays the counters that refer to the ports.
Ports: Select the port to be displayed.
Total Transmits – Displays the total number of LLDP frames transmitted on the port.
Total Discards – Displays the total discarded frame number of LLDP frames received on the port.
Total Errors – Displays the Error frame number of LLDP frames received on the port.
Total Receives – Displays the total number of LLDP frames received on the port.
Total TLV Discards – Each LLDP frame can contain multiple pieces of information, known as TLVs.
If a TLV is malformed, it is counted and discarded.
Total TLV Unknowns – Displays the number of well-formed TLVs, but with a known type value.
Total Ageouts – Each LLDP frame contains information about how long time the LLDP information
is valid. If no new LLDP frame is received within the age out time, the LLDP information is removed,
and the Age-Out counter is incremented.
Click the Clear Counter button to clear the counter information for the statistics displayed.
Click the Clear All button to clear all the counter information displayed.
L2 Features > LLDP > LLDP Local Port Information
The LLDP Local Port Information page displays LLDP local port information.
