D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
88
After clicking the Please Select button, the following page will appear.

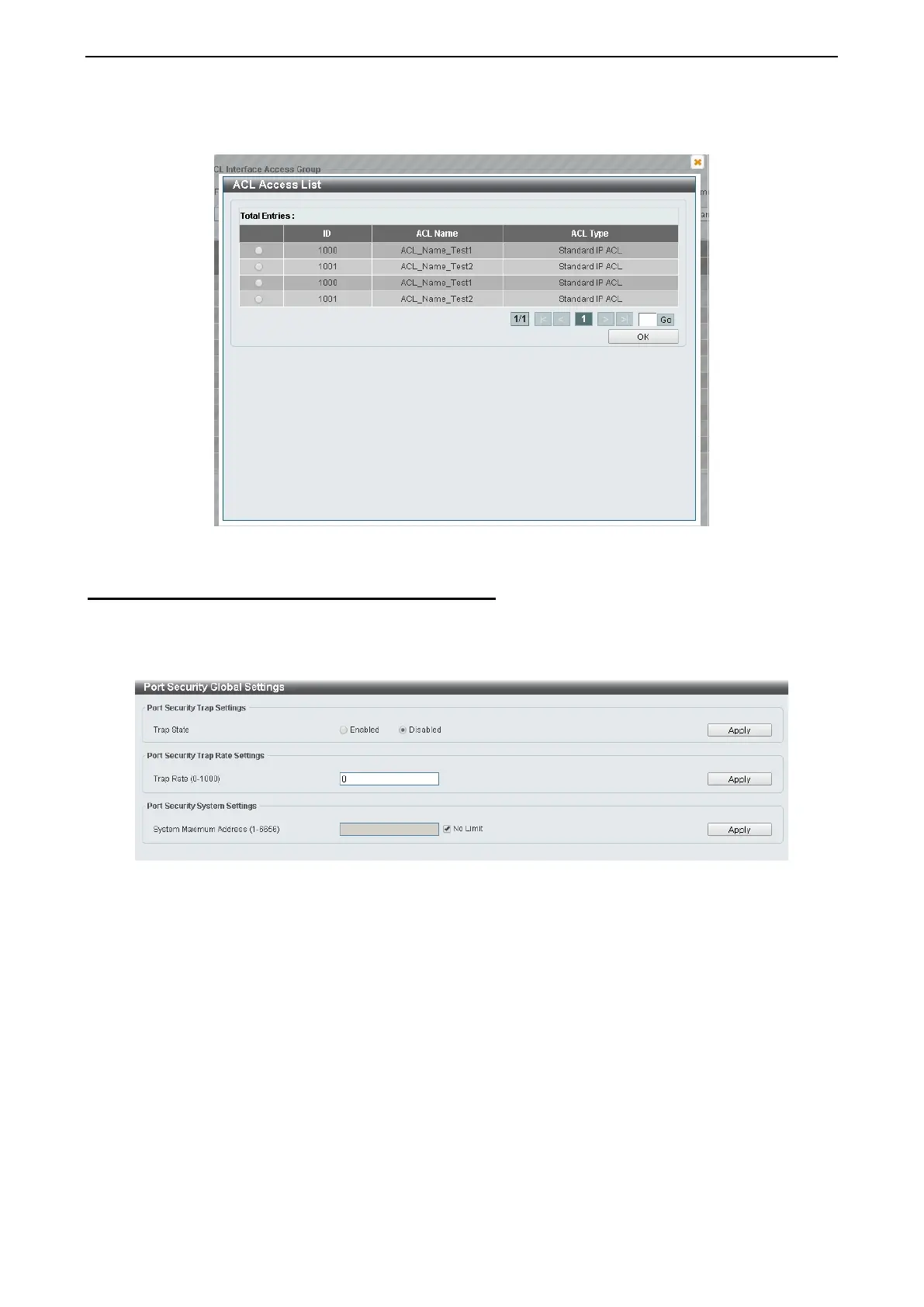

Figure 4.148 – ACL > ACL Interface Access Group - Select
Security > Port Security > Port Security Global Settings
The Port Security Global Settings page allows you to view and configure the port security global settings.
Port Security is a security feature that prevents unauthorized computers (with source MAC addresses)
unknown to the Switch prior to locking the port (or ports) from connecting to the Switch's locked ports and
gaining access to the network.
Figure 4.149 – Security > Port Security > Port Security Global Settings
Trap Security Trap Settings:
Trap State: Select to enable or disable the port security trap of the Switch.
Click the Apply button to save your settings.
Port Security Trap Rate Settings:
Trap Rate (0-1000): Enter the number of traps per second. The range is from 0 to 1000.
Click the Apply button to save your settings.
Port Security System Settings:
System Maximum Address (1-6656): Enter the maximum number of secure MAC addresses allowed. If not
specified, the default value is No Limit. The valid range is from 1 to 6656. Tick the No Limit checkbox to
allow the maximum number of secure MAC addresses.
Click the Apply button to save your settings.
