4 Configuration D-Link DXS-1210 Series User Manual
5
5
1
1

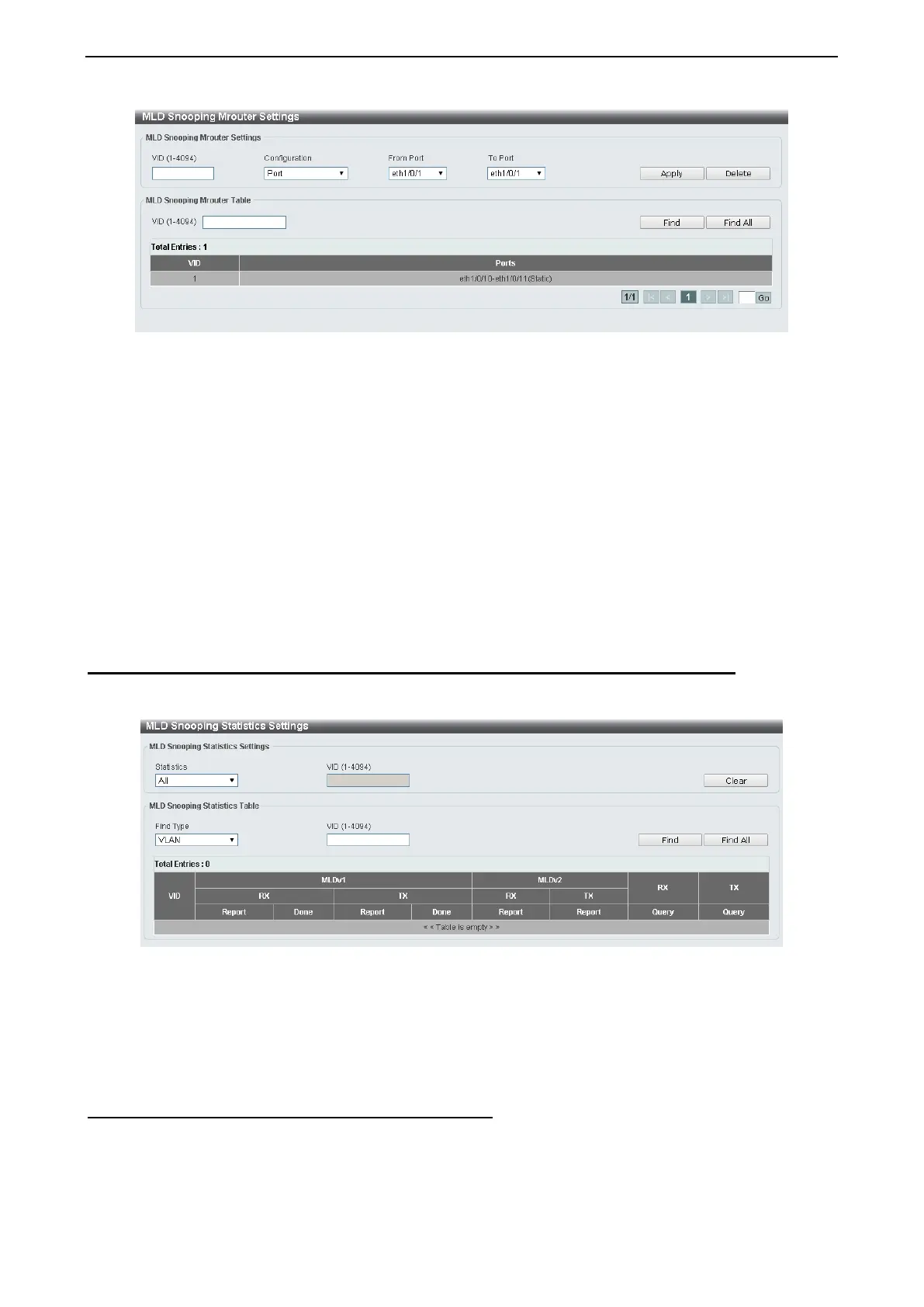

Figure 4.84L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Mrouter Settings
VID (1-4094): Enter the VLAN ID.
Configuration: Select the port configuration. Available options are Port and Forbidden Port.
Port: Select to have the configured ports as being connected to multicast-enabled routers.
Forbidden Port: Select to have the configured ports as being not connected to multicast-enabled
routers.
From Port / To Port: Select the range of ports to be configured.
Click the Apply button to save your settings.
Click the Delete button to remove the specified entry.
Click the Find button to locate a specific entry based on the information entered.
Click the Find All button to view all the entries.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Statistics Settings
The MLD Snooping Statistics Settings page allows you to clear and display the MLD snooping related
statistics.
Figure 4.85L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Statistics Settings
Statistics: Select the type of statistics to display. Available options are All and VLAN..
VID (1-4094): Enter the VLAN ID.
Click the Find button to locate a specific entry based on the information entered.
Click the Find All button to view all the entries.
L2 Features > L2 Multicast Control > Multicast Filtering
The Multicast Filtering page allows you to view and configure multicast filtering settings.
