Security > Port Security > Port Security Port Settings
The Port Security Port Settings page allows you to view and configure the port security port settings of the
Switch.

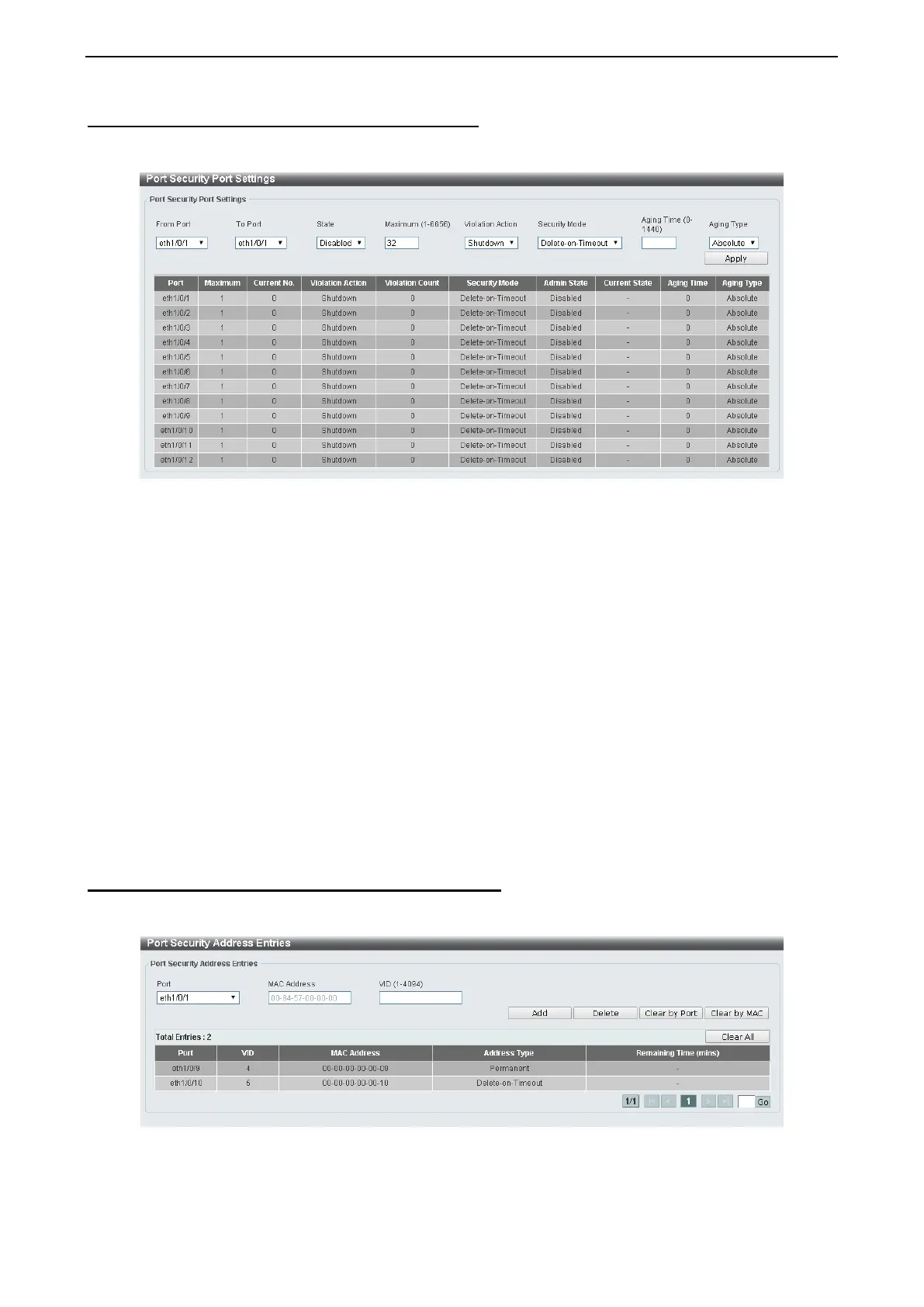

Figure 4.150 – Security > Port Security > Port Security Port Settings
From Port / To Port: Select the range of ports to be configured.
State: Select to enable or disable the port security state of specified ports.
Maximum (1-6556): Enter the maximum number of secure MAC addresses that will be allowed on the
specified ports. The value is between 1 and 6656.
Violation Action: Select the violation action that will be taken. The values are Protect, Restrict, and
Security Mode: Select the security mode option. The values are Permanent and Delete-on-Timeout. If you
select Permanent to under this mode, all learned MAC addresses will not be purged out unless you
manually delete those entries. If you select Delete-on-Timeout, all learned MAC addresses will be purged
out when an entry is aged out or when you manually delete these entries.
Aging Time (0-1440): Enter the aging time for auto-learned dynamic secured addresses on the specified
ports.
Aging Type: Select the aging type. The values are Absolute and Inactivity. Select Absolute so that all the
secure addresses on this port age out exactly after the time specified and is removed from the secure
address list. This is the default type. Select Inactivity so that the secure addresses on this port age out only
if there is no data traffic from the secure source address for the specified time period
Click the Apply button to save your settings.
Security > Port Security > Port Security Address Entries
The Port Security Address Entries page allows you to view, clear and configure the port security address
entries.
Figure 4.151 – Security > Port Security > Port Security Address Entries
Port: Select the port to be configured.
MAC Address: Enter the MAC address for the specified port.
