4 Configuration D-Link DXS-1210 Series User Manual
6
6
7
7

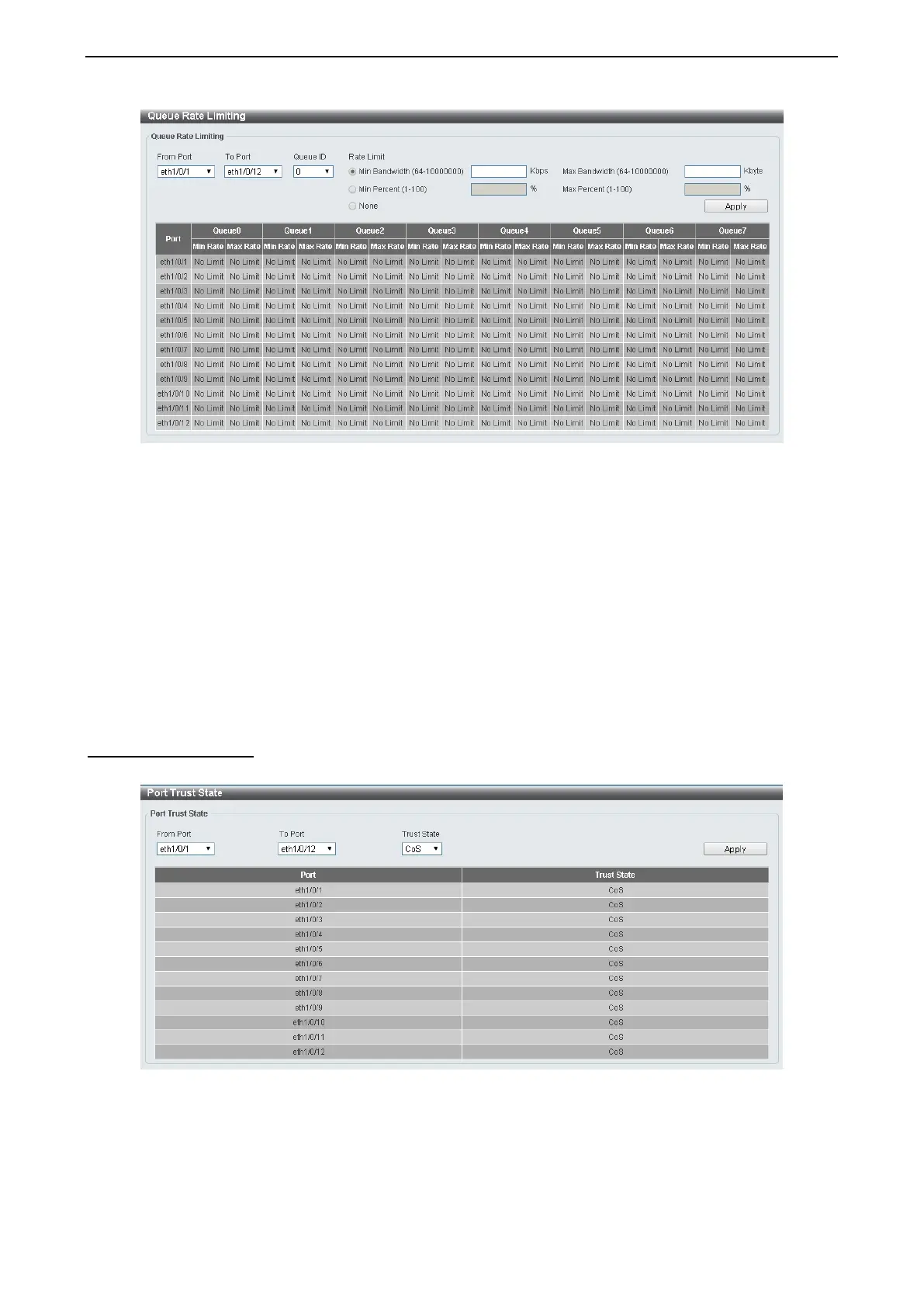

Figure 4.116QoS > Queue Rate Limiting
From Port / To Port: Select the range of ports to be configured.
Queue ID: Select the queue ID for the specified ports. The value is between 0 and 7.
Rate Limit: Specify the Rate limit option.
If you selected the Min Bandwidth option, enter the minimum bandwidth rate limit value in the space
provided. This value must be between 8 and 10000000 kbps. Also enter the maximum bandwidth
(Max Bandwidth) rate limit in the space provided. This value must be between 8 and 10000000
kbps.
If you selected the Min Percent option, enter the minimum bandwidth percentage value in the space
provided. This value must be between 1 and 100 percent (%). Also enter the maximum percentage
value (Max Percent) in the space provided. This value must be between 1 and 100 percent (%).
Click the Apply button to save your settings.
QoS > Port Trust State
The Port Trust State page allows you to view and configure the port trust state settings.
Figure 4.117QoS > Port Trust State
From Port / To Port: Select the range of ports to be configured.
Trust State: Select the trust state to be CoS or DSCP.
Click the Apply button to save your settings.
