D-Link DXS-1210 Series User Manual

4 Configuration D-Link DXS-1210 Series User Manual
4
4
9
9

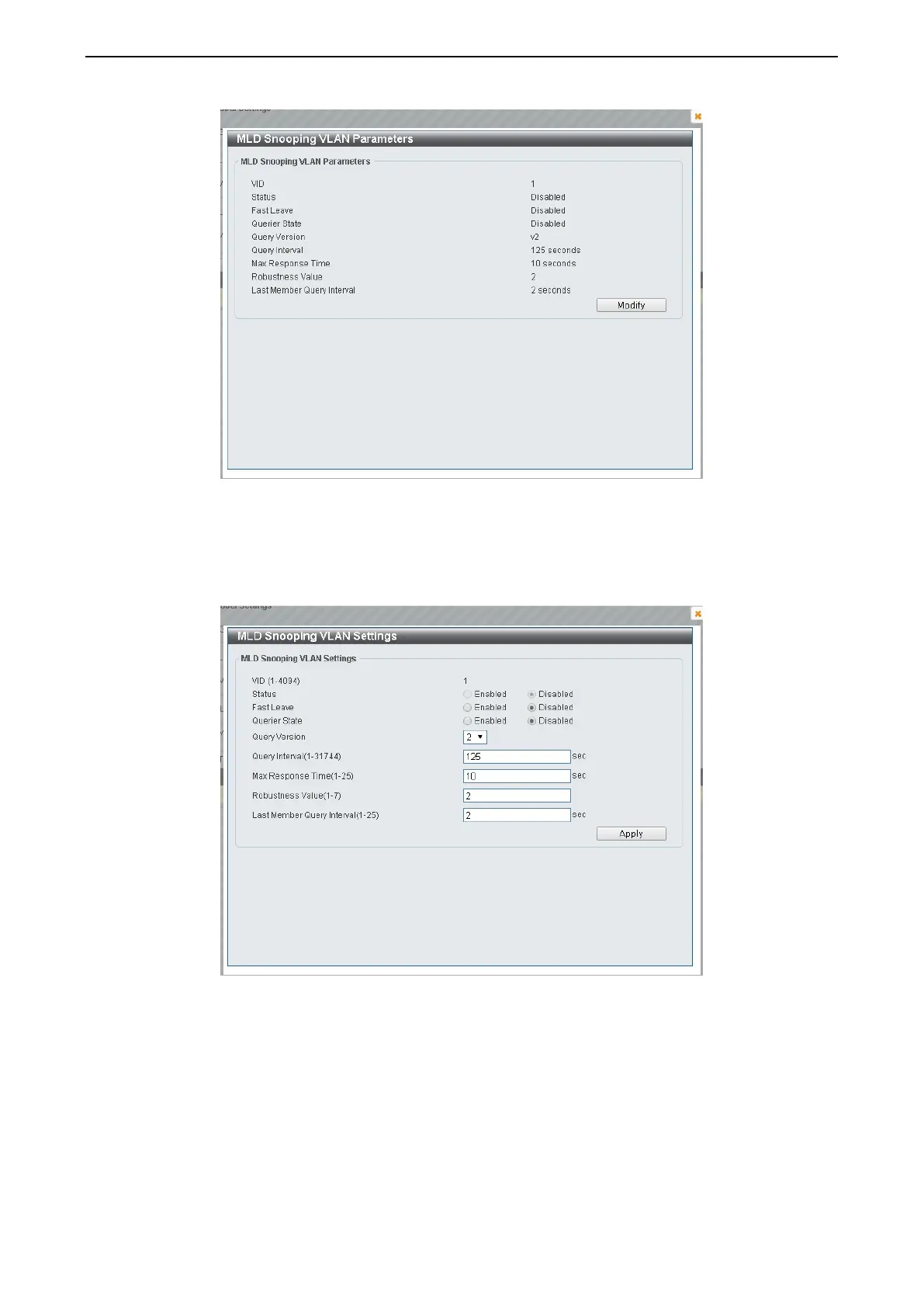

Figure 4.81 – L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Setting – Show Detail
The window displays the detail information about MLD snooping VLAN. Click the Modify button to edit the
information in the following window.
After clicking the Edit button in MLD Snooping Settings window, the following window will appear.
Figure 4.82 – L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Setting – Edit
Fast Leave: Select to enable or disable the MLD snooping fast leave function.
Querier State: Select to enable or disable the querier state.
Query Version: Select the general query packet version sent by the MLD snooping querier.
Query Interval (1-31744): Enter the interval at which the MLD snooping querier sends MLD general query
messages periodically.
Max. Response Time (1-25): Enter the maximum response time, in seconds, advertised in MLD snooping
queries. The range is 1 to 25.
Robustness Value (1-7): Enter the robustness variable used in MLD snooping.
Last Member Query Interval (1-25): Enter the interval at which the MLD snooping querier sends MLD
group-specific or group-source-specific (channel) query messages.

D-Link DXS-1210 Series Specifications

General

Product Series	DXS-1210
Power Supply	Internal
Jumbo Frame Support	9KB
Number of Ports	12
Layer	L2+
Form Factor	Rack-mountable
Uplink Ports	10G SFP+
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
