xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
37
Figure 3-19 Right-Clicking a Group Icon
The following options may appear for the user to configure:
• Collapse – To collapse the group that will be represented by a single icon.
• Expand – To expand the SIM group, in detail.
• Property – To pop up a window to display the group information.

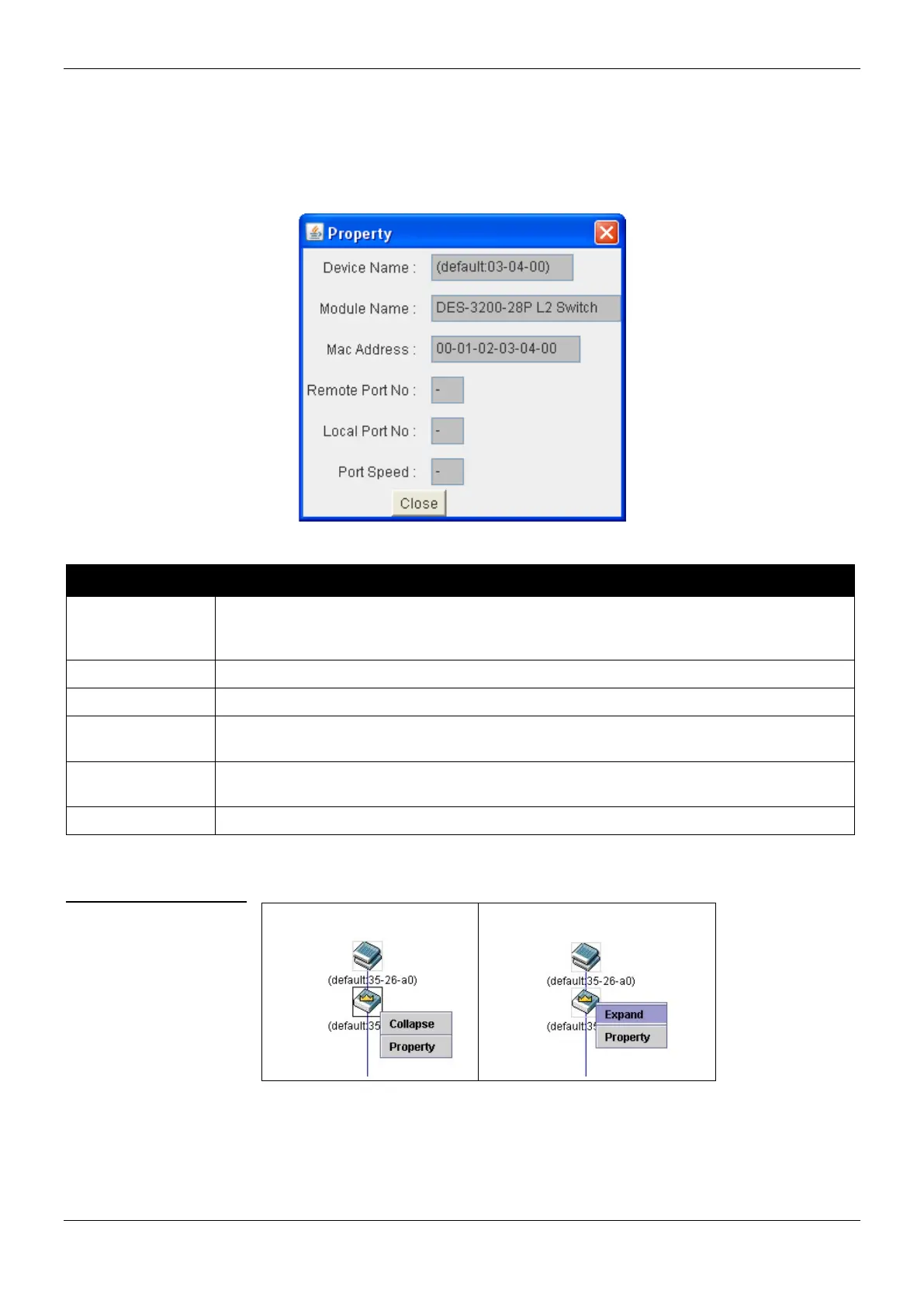

Figure 3-20 Property window
Parameter Description
Device Name
This field will display the Device Name of the switches in the SIM group configured by the
user. If no Device Name is configured by the name, it will be given the name default and
tagged with the last six digits of the MAC Address to identify it.
Displays the full module name of the switch that was right-clicked.
Displays the MAC Address of the corresponding Switch.
Remote Port No
Displays the number of the physical port on the MS or CaS that the CS is connected to.
The CS will have no entry in this field.
Local Port No
Displays the number of the physical port on the CS that the MS or CaS is connected to.
The CS will have no entry in this field.
Displays the connection speed between the CS and the MS or CaS
Click the Close button to close the property window.
Commander Switch Icon
Figure 3-21 Right-clicking a Commander Icon
The following options may appear for the user to configure:
• Collapse – To collapse the group that will be represented by a single icon.
• Expand – To expand the SIM group, in detail.
