130BB658.10

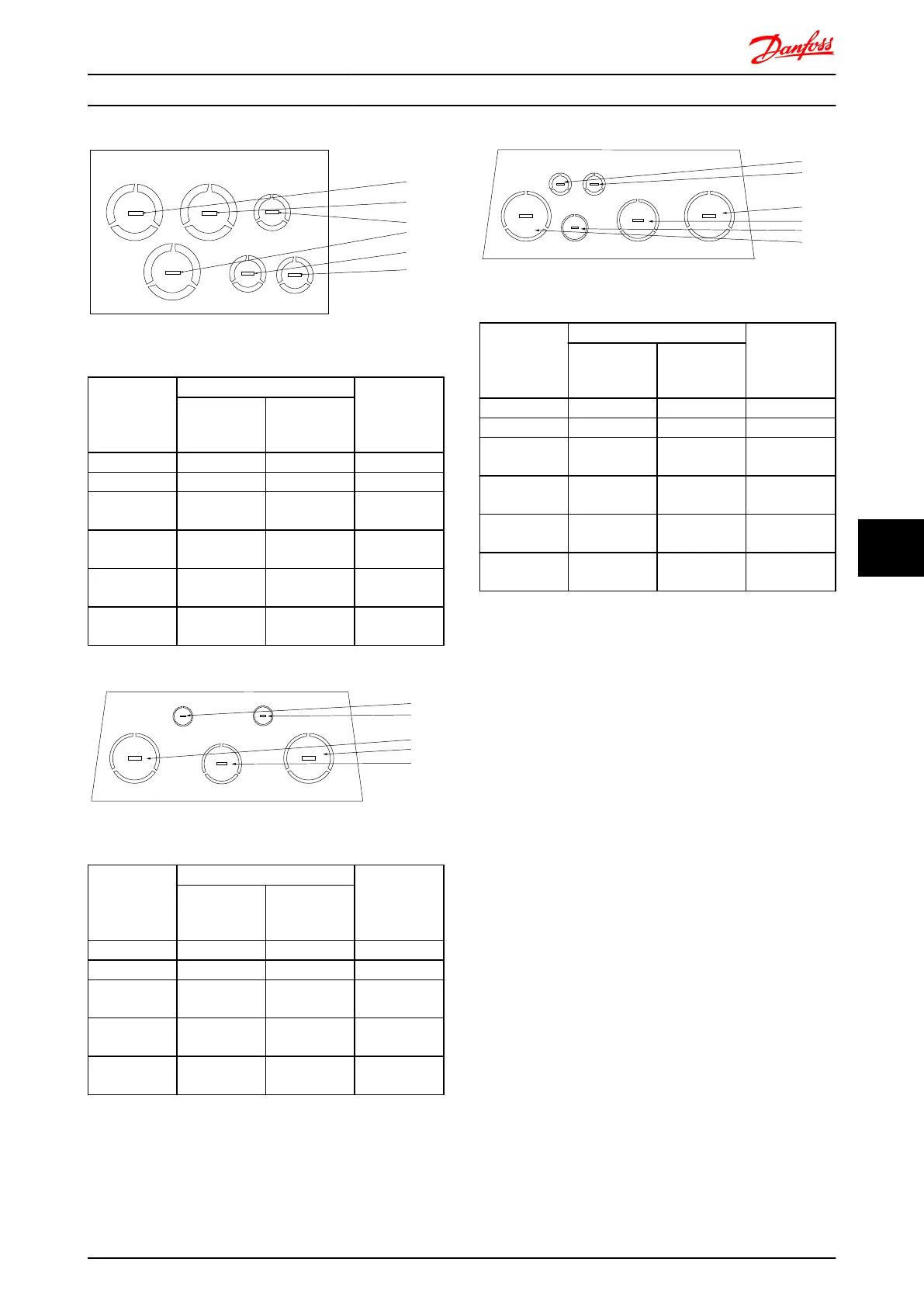

Illustration 8.26 B3 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/Load
Sharing
1 34.7 M32
4) Control
Cable
1/2 22.5 M20
5) Control
Cable
1/2 22.5 M20
6) Control
Cable
1/2 22.5 M20
1)
Tolerance ± 0.2 mm
[5]
[3]
[2]
[4]
[1]
130BB661.10
Illustration 8.27 C1 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/Load
Sharing
1 1/2 50.2 M50
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
1/2 22.5 M20
1)
Tolerance ± 0.2 mm
[5]
[3]
[2]
[6]
[4]
[1]
130BB662.10
Illustration 8.28 C2 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/Load
Sharing
1 1/2 50.2 M50
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
1/2 22.5 M20
6) Control
Cable
1/2 22.5 M20
1)
Tolerance ± 0.2 mm
Electrical Installation FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 167
8 8

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
