Danfoss VLT AutomationDrive

176FA259.10
Earth Terminals
:ASTENER TORQUE: MM8 9.6 Nm (7FT-LB)
ASTENER TORQUE: M10 19 Nm (14FT-LB)
S/L2 92
T/L3 93
R/L1 91
W/T3 98

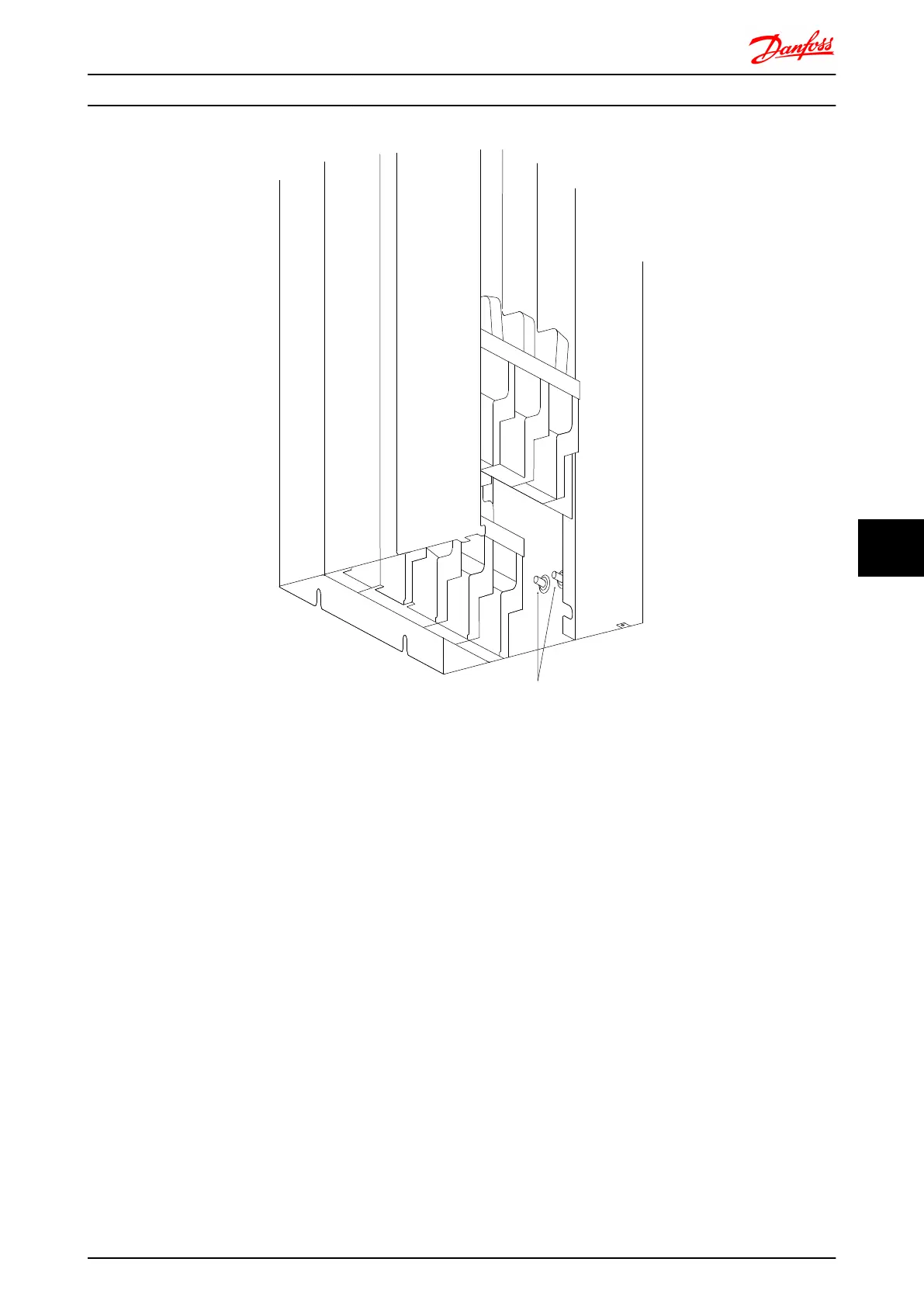

Illustration 8.38 Position of earth terminals IP00, frame sizes E
