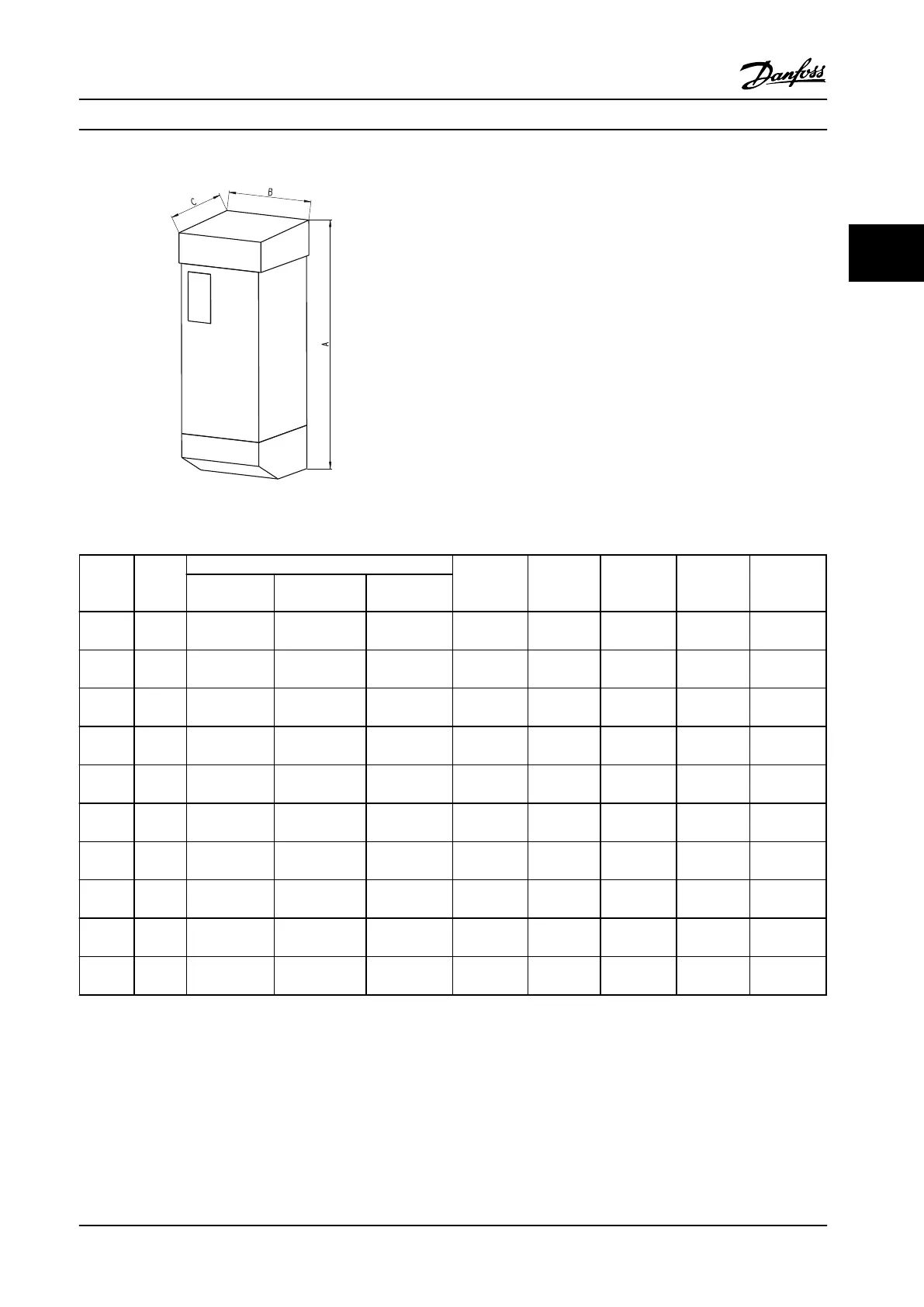

Figure 3.6 Dimensions
Frame IP class Power Height (in
[mm]) A
Width (in
[mm]) B
Depth (in
[mm]) C
IP21 kit
ordering
no.
Type 1 kit
ordering no.
3 x 200–240 V 3 x 380–480 V 3 x 525–600 V
H1 IP20 0.34–2 hp
[0.25–1.5 kW]
0.5–2 hp
[0.37–1.5 kW]
11.54 [293] 3.19 [81] 6.81 [173] 132B0212 132B0222
H2 IP20 3 hp [2.2 kW] 3–5 hp
[2.2–4 kW]
12.68 [322] 3.78 [96] 7.68 [195] 132B0213 132B0223
H3 IP20 4 hp [3.7 kW] 7.5–10 hp
[5.5-7.5 kW]
13.62 [346] 4.17 [106] 8.27 [210] 132B0214 132B0224
H4 IP20 7.5–10 hp
[5.5–7.5 kW]
15–20 hp
[11–15 kW]
14.72 [374] 5.55 [141] 9.65 [245] 132B0215 132B0225
H5 IP20 15 hp [11 kW] 25–30 hp
[18.5–22 kW]
16.46 [418] 6.34 [161] 10.24 [260] 132B0216 132B0226
H6 IP20 20–25 hp
[15–18.5 kW]
40–60 hp
[30–45 kW]
25–40 hp
[18.5–30 kW]
26.1 [663] 10.24 [260] 9.53 [242] 132B0217 132B0217
H7 IP20 30-40 hp
[22-30 kW]
75–100 hp
[55–75 kW]
50–75 hp
[37–55 kW]
31.77 [807] 12.95 [329] 13.19 [335] 132B0218 132B0218
H8 IP20 50–60 hp
[37–45 kW]
125 hp [90 kW] 100–125 hp
[75–90 kW]
37.13 [943] 15.35 [390] 13.19 [335] 132B0219 132B0219
H9 IP20 3–10 hp
[2.2–7.5 kW]
14.65 [372] 5.12 [130] 8.07 [205] 132B0220 132B0220
H10 IP20 15–20 hp
[11–15 kW]
18.7 [475] 6.5 [165] 9.8 [249] 132B0221 132B0221
Table 3.3 Enclosure Kit Specifications
Selection Design Guide
MG18C522 Danfoss A/S © Rev. 2014-01-14 All rights reserved. 47
3 3
