Danfoss VLT HVAC Basic Drive FC 101 Design Guide

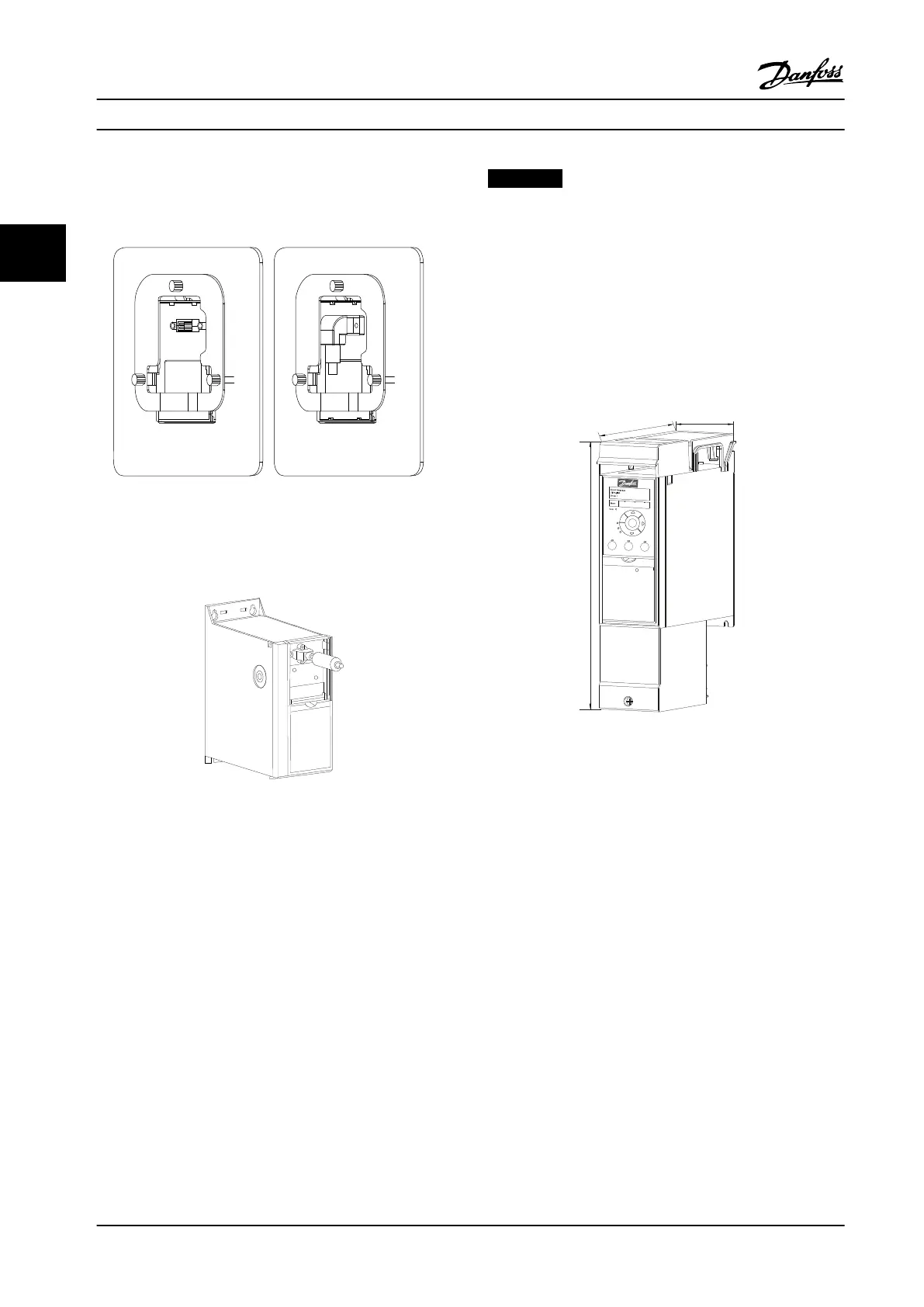

Step 3
Place bracket on back of the LCP, then slide down.
Tighten screws and connect cable female side to LCP.
130BB777.10
Figure 3.3 Place Bracket on LCP
Step 4
Connect cable to adjustable frequency drive.
130BB778.10
Figure 3.4 Connect Cable
NOTICE!
Use the provided thread cutting screws to fasten
connector to the adjustable frequency drive, tightening
torque 11.51 in-lb [1.3 Nm].
3.1.3 IP21/TYPE 1 Enclosure Kit
IP21/TYPE 1 is an optional enclosure element available for
IP20 units.
If the enclosure kit is used, an IP20 unit is upgraded to
comply with enclosure IP21/TYPE 1.
130BB902.11
VLT
HVAC Basic Drive
A
B
C
OK
Alarm
Warn.
On
B
a
c
k
Hand
On
O
Reset
Auto
On
Status
Quick
Menu
Main
Menu
R
Figure 3.5 H1-H5
Selection Design Guide
46 Danfoss A/S © Rev. 2014-01-14 All rights reserved. MG18C522
33
