5.1.3 Field Mounting
IP21/TYPE 1 kits are recommended.
5.2 Electrical Data
L1
L2
L3
3 Phase
power
input
PE
PE
+10 V DC
0-10 V DC-
0-10 V DC-
50 (+10 V OUT)
54 (A IN)
53 (A IN)
55 (COM A IN/OUT)
0/4-20 mA
0/4-20 mA
42 0/4-20 mA A OUT / DIG OUT
45 0/4-20 mA A OUT / DIG OUT
18 (DIGI IN)
19 (DIGI IN)
27 (DIGI IN)
29 (DIGI IN)
12 (+24 V OUT)
24 V (NPN)
20 (COM D IN)
O V (PNP)
24 V (NPN)
O V (PNP)
24 V (NPN)
O V (PNP)
24 V (NPN)
O V (PNP)
Bus ter.
Bus ter.
RS-485
Interface
RS-485
(N PS-485) 69
(P RS-485) 68
(Com RS-485 ) 61
(PNP)-Source
(NPN)-Sink
ON=Terminated
OFF=Unterminated
ON
1 2
240 V AC 3 A
Not present on all power sizes
Do not connect shield to 61
01
02
03
relay1
relay2
UDC+
UDC-
Motor
U
V
W
130BD467.10
06
05
04
240 V AC 3 A

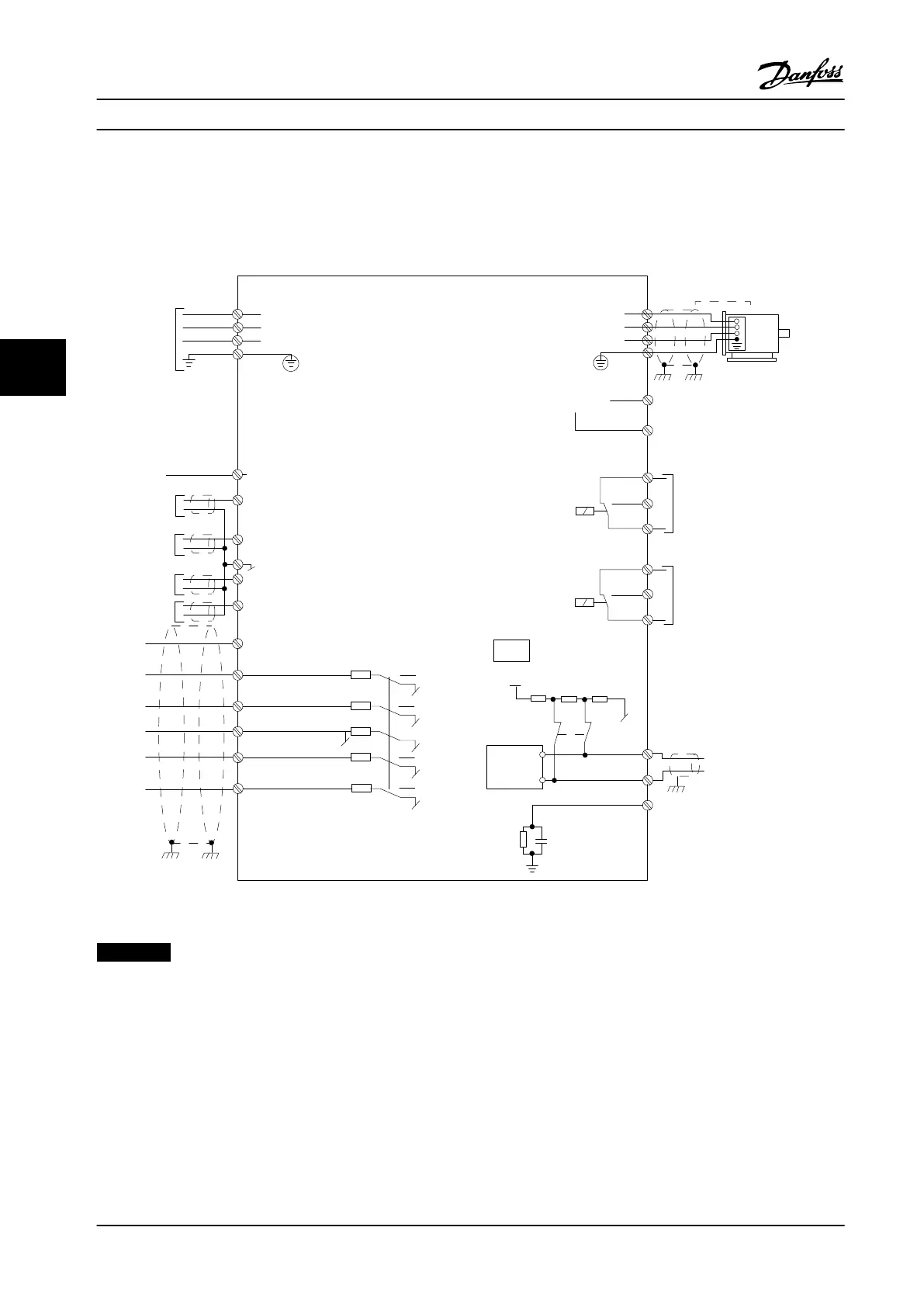

Figure 5.1 Basic Wiring Schematic Drawing
NOTICE!
There is no access to UDC- and
UDC+ on the following units:
IP20 380–480 V 40–125 hp [30–90 kW]
IP20 200–240 V 20–60 hp [15–45 kW]
IP20 525–600 V 3–125 hp [2.2–90 kW]
IP54 380–480 V 30–125 hp [22–90 kW]
How to Install Design Guide
58 Danfoss A/S © Rev. 2014-01-14 All rights reserved. MG18C522
55
