Danfoss VLT HVACDrive User Manual

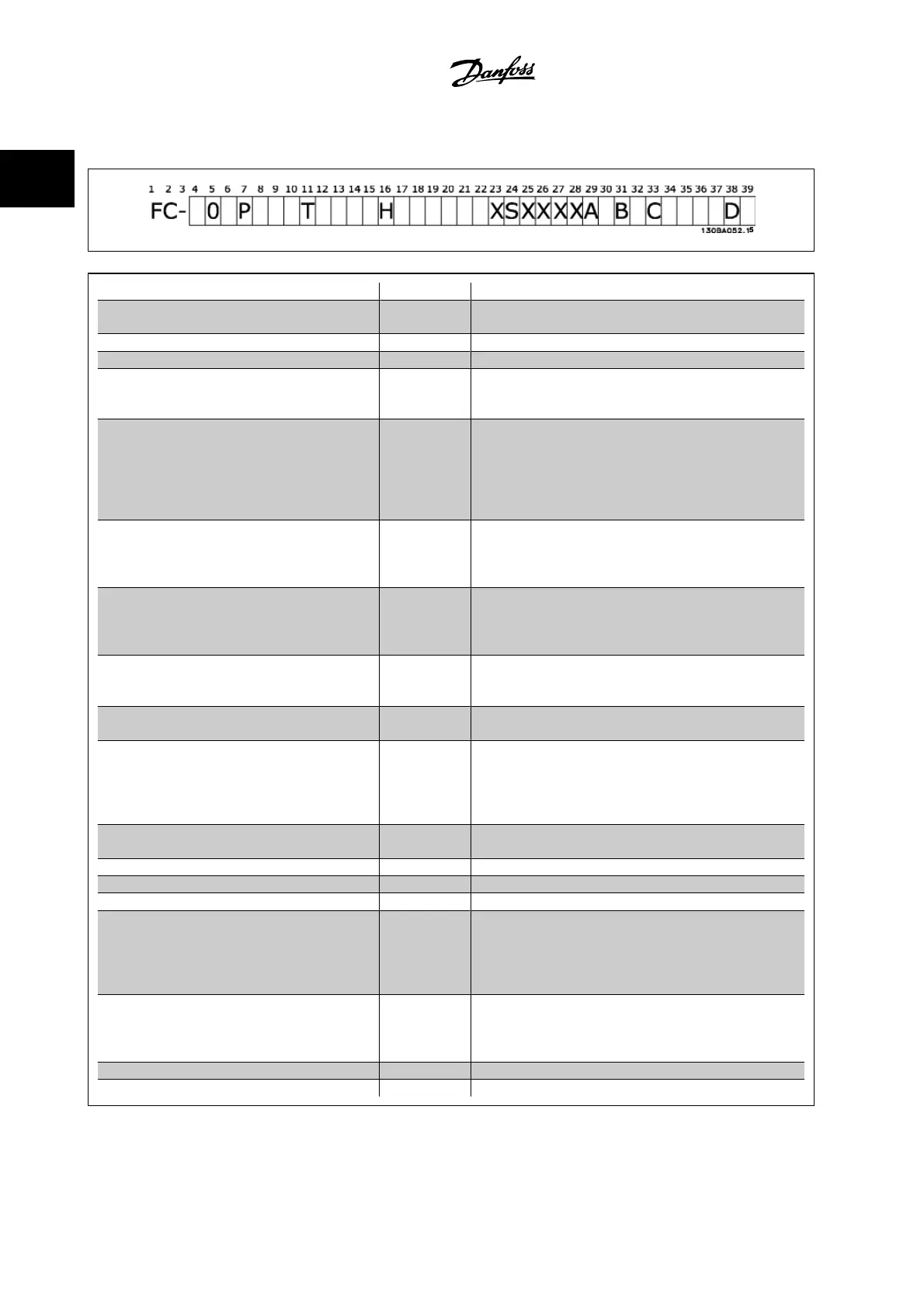

1.1.5 Type Code String Low and Medium Power
Description Pos Possible choice
Product group & Adjustable Frequency Drive
Series
1-6 FC 102
Power rating 8-10 1.5–125 hp [1.1–90 kW] (P1K1 - P90K)
Number of phases 11 Three phases (T)
AC line voltage 11-12
T 2: 200–240 V AC
T 4: 380–480 V AC
T 6: 525–600 V AC
Enclosure 13-15
E20: IP20
E21: IP 21/NEMA Type 1
E55: IP 55/NEMA Type 12
E66: IP66
P21: IP21/NEMA Type 1 w/ backplate
P55: IP55/NEMA Type 12 w/ backplate
RFI filter 16-17
H1: RFI filter class A1/B
H2: RFI filter class A2
H3: RFI filter class A1/B (reduced cable length)
Hx: No RFI filter
Brake 18
X: No brake chopper included
B: Brake chopper included
T: Safe Stop
U: Safe + brake
Display 19
G: Graphical Local Control Panel (GLCP)
N: Numeric Local Control Panel (NLCP)
X: No Local Control Panel
Coating PCB 20
X. No coated PCB
C: Coated PCB
Line power option 21
X: No Line power disconnect switch and Load Sharing
1: With Line power disconnect switch (IP55 only)
8: Line power disconnect and Load Sharing
D: Load Sharing
See Chapter 8 for max. cable sizes.
Adaptation 22
X: Standard
0: European metric thread in cable entries.
Adaptation 23 Reserved
Software release 24-27 Current software
Software language 28
A options 29-30
AX: No options
A0: MCA 101 Profibus DP V1
A4: MCA 104 DeviceNet
AG: MCA 108 Lonworks
AJ: MCA 109 BACnet gateway
B options 31-32
BX: No option
BK: MCB 101 General purpose I/O option
BP: MCB 105 Relay option
BO: MCB 109 Analog I/O option
C0 options MCO 33-34 CX: No options
C1 options 35 X: No options
Table 1.2: Type code description.
1 Introduction VLT
®
HVAC Drive Instruction Manual
1-6 MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
1
