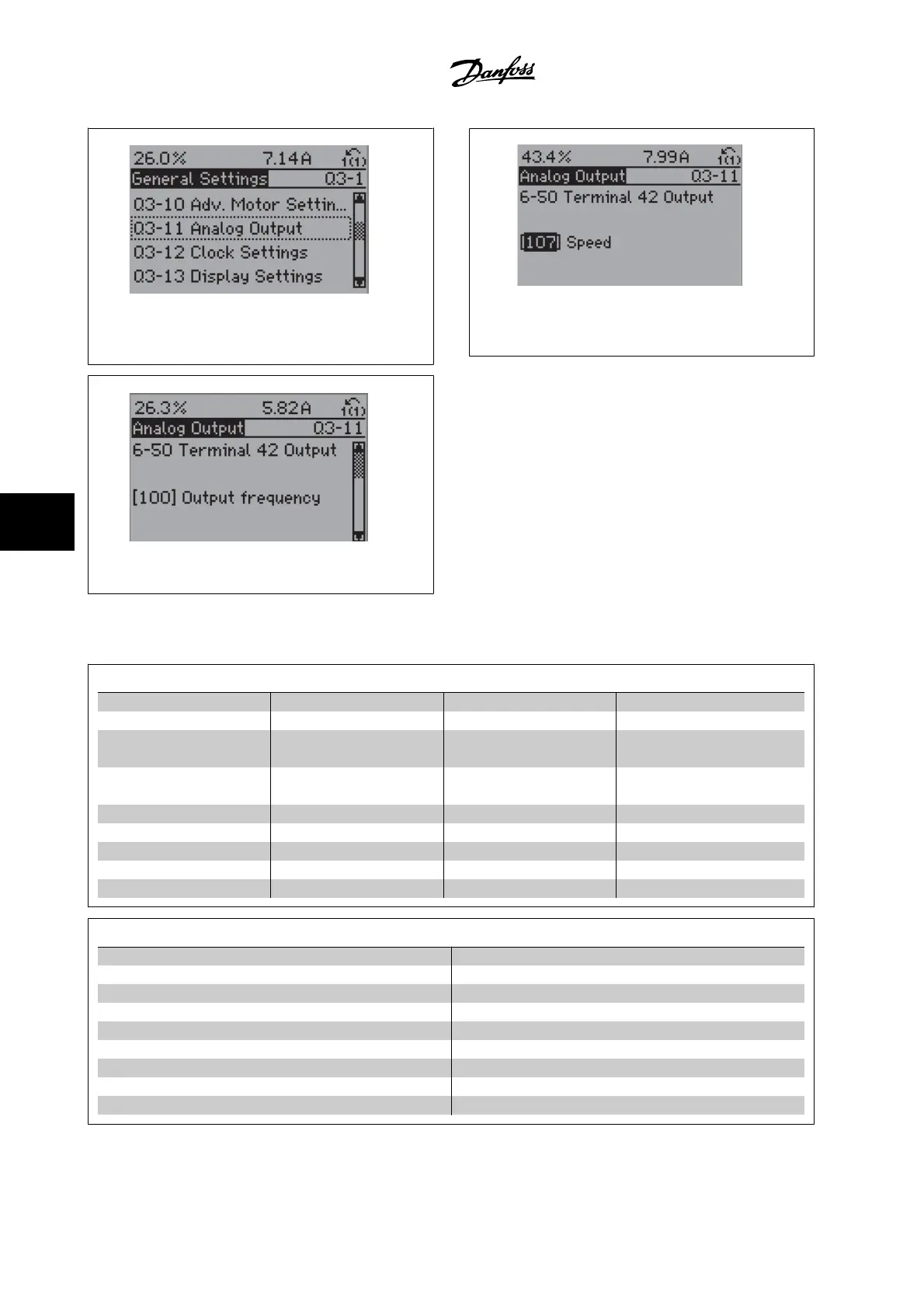

Figure 7.5: Step 5: Use the up/down navigation keys to
scroll down to i.e. 03-11
Analog Outputs . Press [OK].
130BT115.1
0
Figure 7.6: Step 6: Choose par. 6-50. Press [OK].
130BT116.1
0
Figure 7.7: Step 7: Use the up/down navigation keys to se-
lect between the different choices. Press [OK].
Function Set-ups parameters
The Function Set-ups parameters are grouped in the following way:
Q3-1 General Settings
Q3-10 Adv. Motor Settings Q3-11 Analog Output Q3-12 Clock Settings Q3-13 Display Settings
Par. 1-90 Motor Thermal Protection Par. 6-50 Terminal 42 Output Par. 0-70 Date and Time Par. 0-20 Display Line 1.1 Small
Par. 1-93 Thermistor Source Par. 6-51 Terminal 42 Output Min
Scale
Par. 0-71 Date Format Par. 0-21 Display Line 1.2 Small
Par. 1-29 Automatic Motor Adapta-
tion (AMA)
Par. 6-52 Terminal 42 Output Max
Scale
Par. 0-72 Time Format Par. 0-22 Display Line 1.3 Small
Par. 14-01 Switching Frequency Par. 0-74 DST/Summertime Par. 0-23 Display Line 2 Large
Par. 4-53 Warning Speed High Par. 0-76 DST/Summertime Start Par. 0-24 Display Line 3 Large
Par. 0-77 DST/Summertime End Par. 0-37 Display Text 1
Par. 0-38 Display Text 2
Par. 0-39 Display Text 3
Q3-2 Open-loop Settings
Q3-20 Digital Reference Q3-21 Analog Reference
Par. 3-02 Minimum Reference Par. 3-02 Minimum Reference
Par. 3-03 Maximum Reference Par. 3-03 Maximum Reference
Par. 3-10 Preset Reference Par. 6-10 Terminal 53 Low Voltage
Par. 5-13 Terminal 29 Digital Input Par. 6-11 Terminal 53 High Voltage
Par. 5-14 Terminal 32 Digital Input Par. 6-12 Terminal 53 Low Current
Par. 5-15 Terminal 33 Digital Input Par. 6-13 Terminal 53 High Current
Par. 6-14 Terminal 53 Low Ref./Feedb. Value
Par. 6-15 Terminal 53 High Ref./Feedb. Value
7 How to Program the Adjustable Frequency
Drive
VLT
®
HVAC Drive Instruction Manual
7-2 MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
