4.1.8 AC Line Input Connections for A5

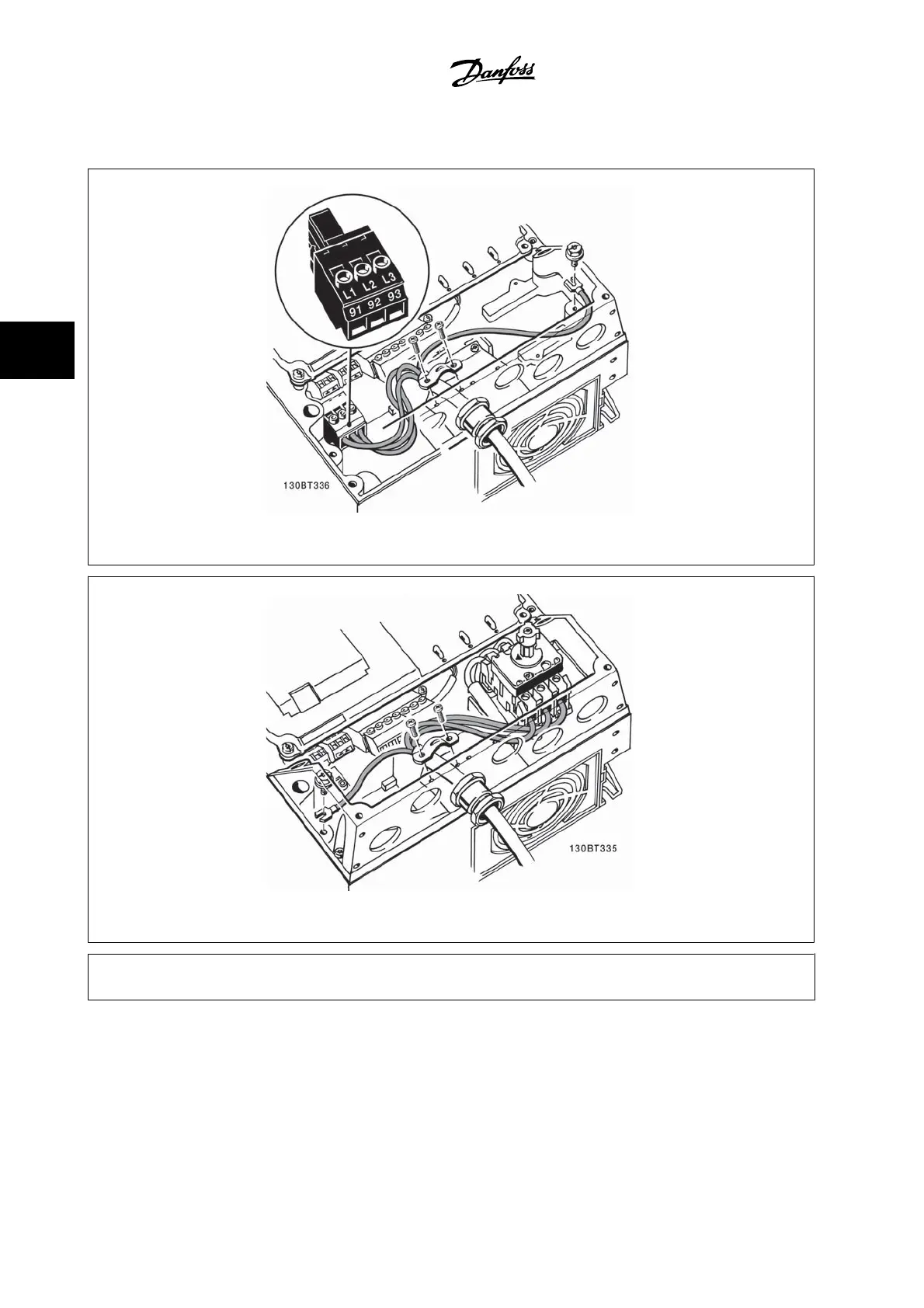

Figure 4.8: How to connect to line power and grounding without a line power disconnect switch. Note that a cable clamp is used.
Figure 4.9: How to connect to line power and grounding with a line power disconnect switch.
NOTE!
With single phase A5 use L1 and L2 terminals.
