Danfoss VLT HVACDrive User Manual

7 How to Program the Adjustable Frequency Drive
7.1 How to Program
7.1.1 Function Set-ups
The Function set-up provides quick and easy access to all parameters required for the majority of VLT HVAC Drive applications including most VAV and
CAV supply and return fans, cooling tower fans, primary, secondary and condenser water pumps and other pump, fan and compressor applications.
How to access Function set-up - example
130BT110.1
0

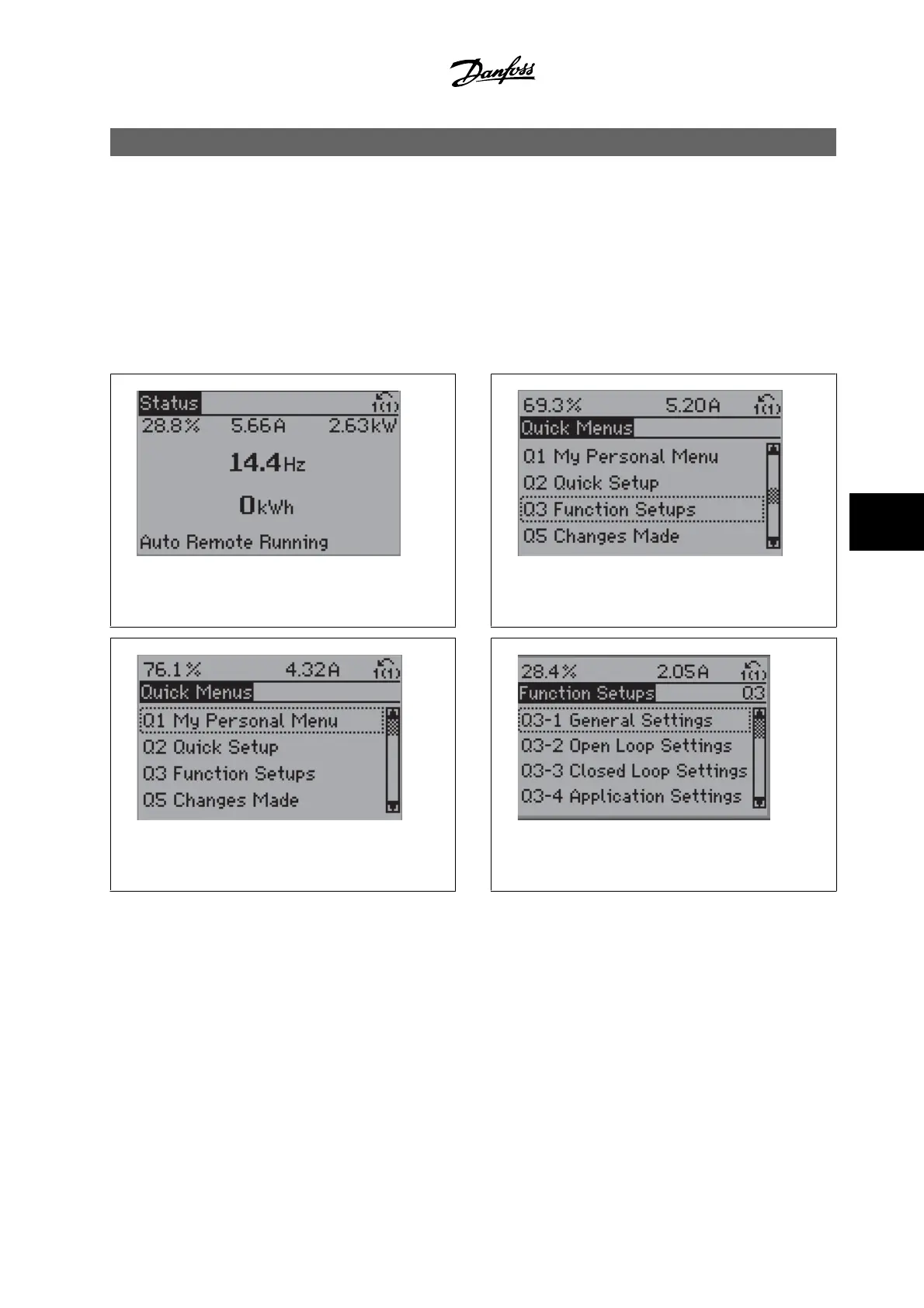

Figure 7.1: Step 1: Turn on the adjustable frequency drive
(yellow LED lights)
130BT111.1
0
Figure 7.2: Step 2: Press the [Quick Menus] button (quick
menu choices appear).
130BT112.1
0
Figure 7.3: Step 3: Use the up/down navigation keys to
scroll down to Function set-ups. Press [OK].
130BT113.1
0
Figure 7.4: Step 4: Function set-ups choices appear. Choose
03-1
General Settings . Press [OK].
VLT
®
HVAC Drive Instruction Manual
7 How to Program the Adjustable Frequency
Drive
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark 7-1
