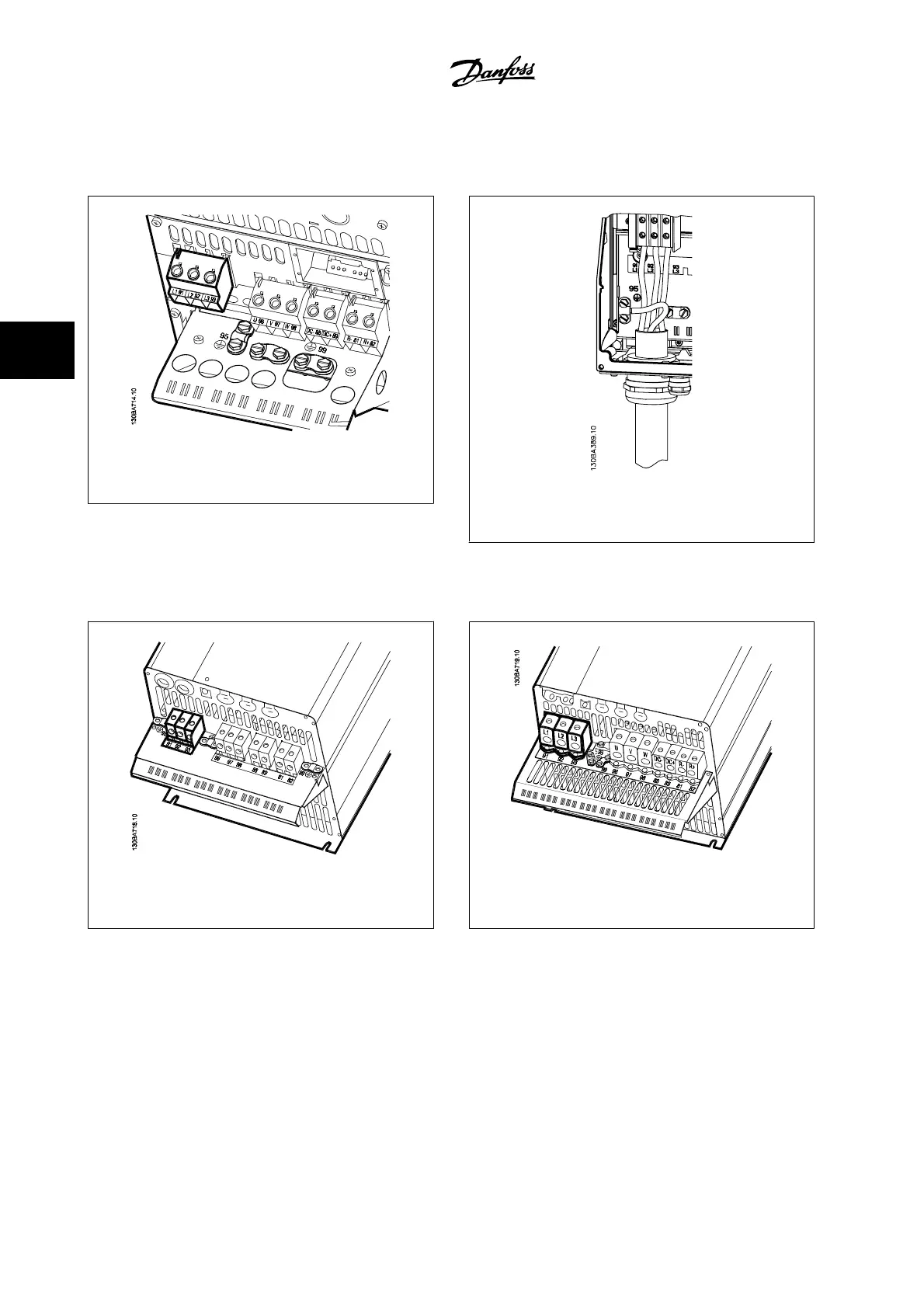

4.1.10 AC Line Input Connections for B4, C1 and C2
Figure 4.13: How to connect to line power and grounding
for B4.
Figure 4.14: How to connect to line power and grounding
for C1 and C2.
4.1.11 AC Line Input Connections for C3 and C4
Figure 4.15: How to connect C3 to line power and ground-
ing.
Figure 4.16: How to connect C4 to line power and ground-
ing.
4 Electrical Installation VLT
®
HVAC Drive Instruction Manual
4-14 MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
4
