Quick Setup
Efficient Parameter Set-up for VLT HVAC Drive Applications:
The parameters can easily be set up for the vast majority of the VLT HVAC Drive applications only by using the [Quick Set-up] option.
After pressing [Quick Menu], the different choices in the quick menu are listed. See also figure 6.1 below and tables Q3-1 to Q3-4 in the following Function
Set-ups section.
Example of using the Quick Set-up option:
Assume you want to set the ramp-down time to 100 seconds!
1. Select [Quick Setup]. The first par. 0-01
Language
in Quick Set-up appears
2.
Press [
] repeatedly until par. 3-42
Ramp 1 Ramp-down Time
appears with the default setting of 20 seconds
3. Press [OK]
4.
Use the [
] button to highlight the third digit before the comma
5.
Change '0' to '1' by using the [
] button
6.
Use the [
] button to highlight the digit '2'
7.
Change '2' to '0' with the [
] button
8. Press [OK]
The new ramp-down time is now set to 100 seconds.
It is recommended to do the set-up in the order listed.
NOTE!
A complete description of the function is found in the parameter sections of this manual.

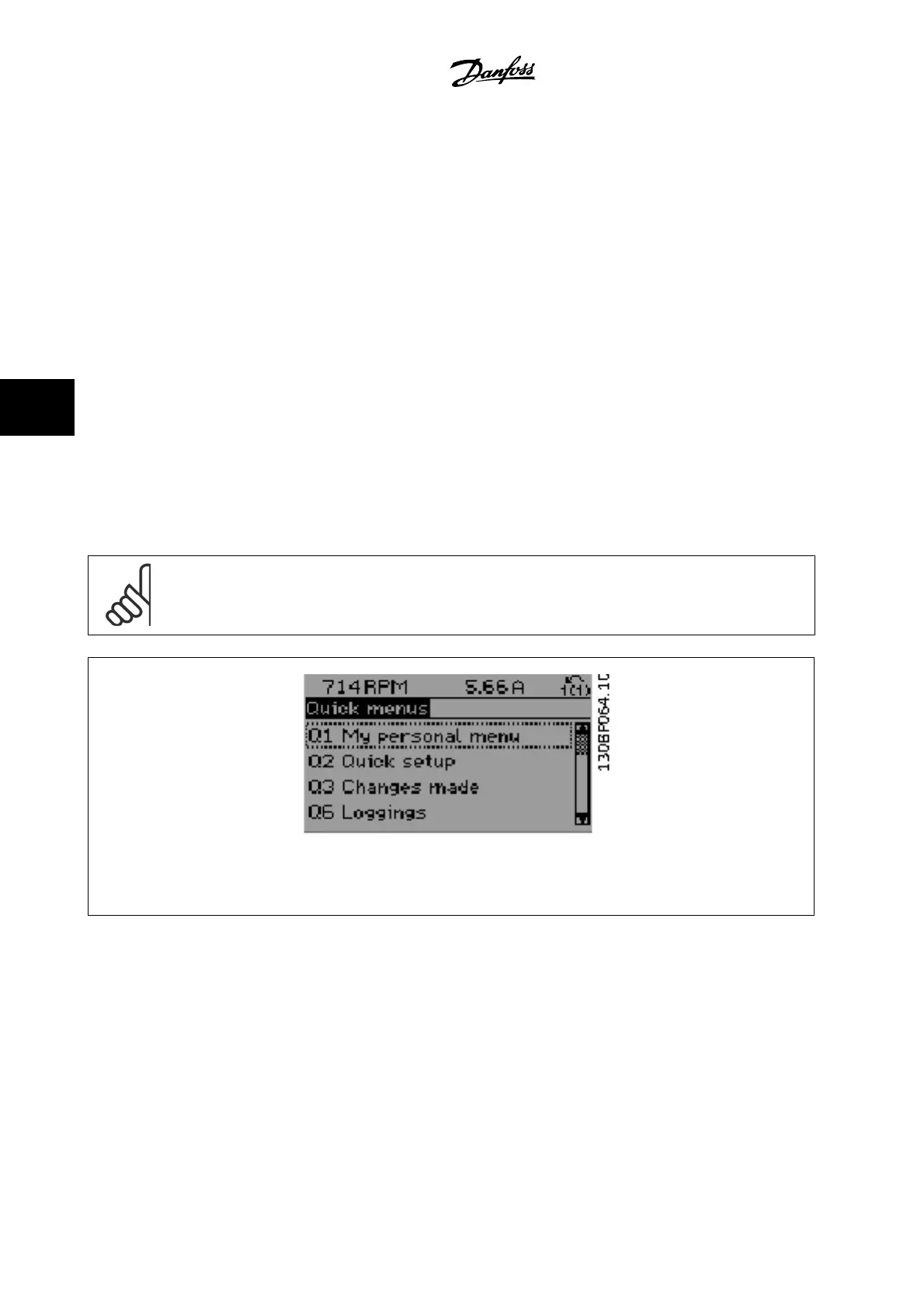

Figure 5.1: Quick Menu view.
The Quick Set-up menu gives access to the 18 most important set-up parameters of the adjustable frequency drive. After programming, the adjustable
frequency drive will, in most cases, be ready for operation. The 18 Quick Set-up parameters are shown in the table below. A complete description of the
function is given in the parameter description sections of this manual.
5 Commissioning and Application Examples VLT
®
HVAC Drive Instruction Manual
5-2
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
