4.1.9 AC Line Input Connections for B1, B2 and B3

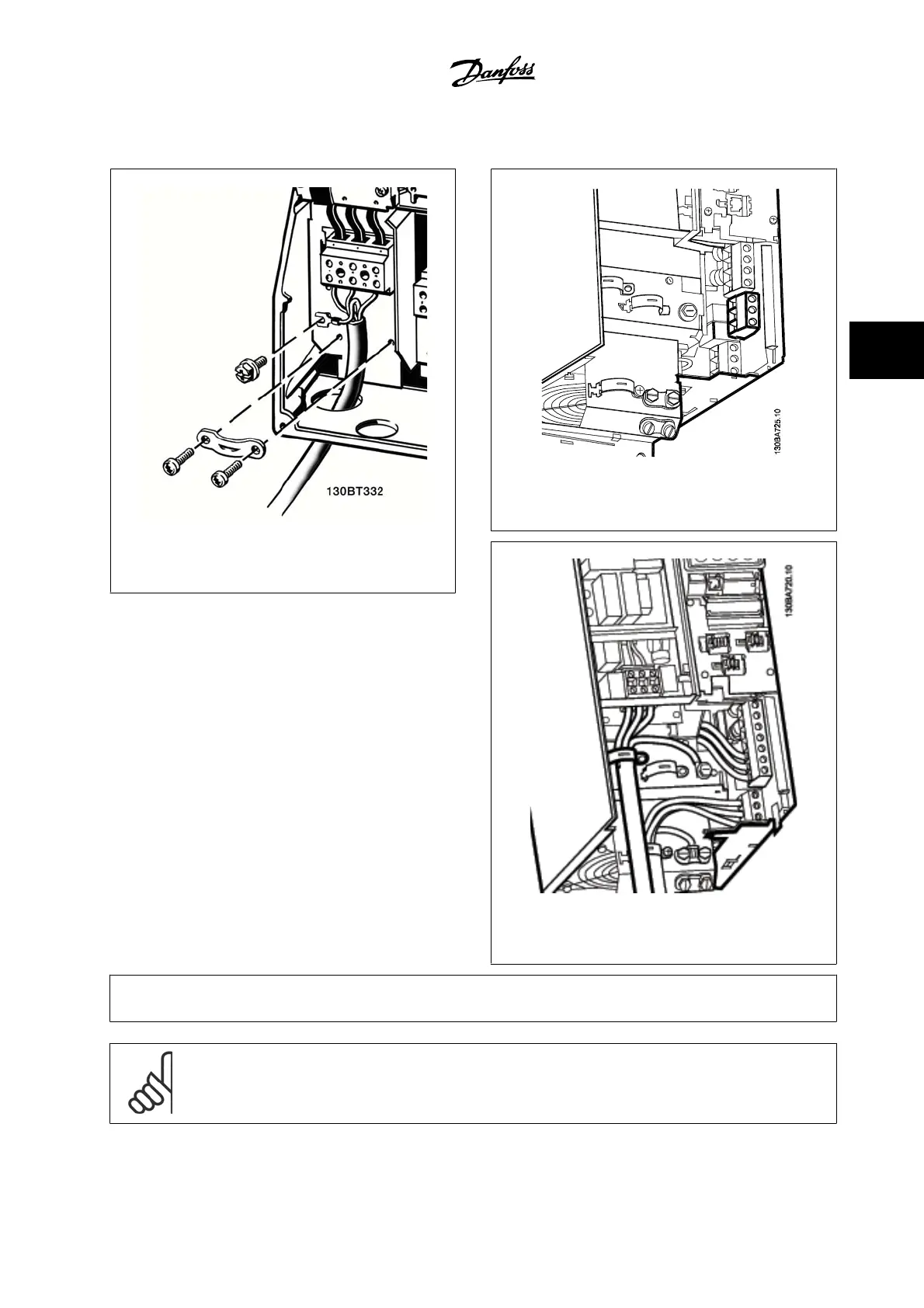

Figure 4.10: How to connect to line power and grounding
for B1 and B2
Figure 4.11: How to connect to line power and grounding
for B3 without RFI.
Figure 4.12: How to connect to line power and grounding
for B3 with RFI.
NOTE!
With single phase B1 use L1 and L2 terminals.
NOTE!
For correct cable dimensions, please see the section General Specifications at the back of this manual.
