5.2 Application Examples

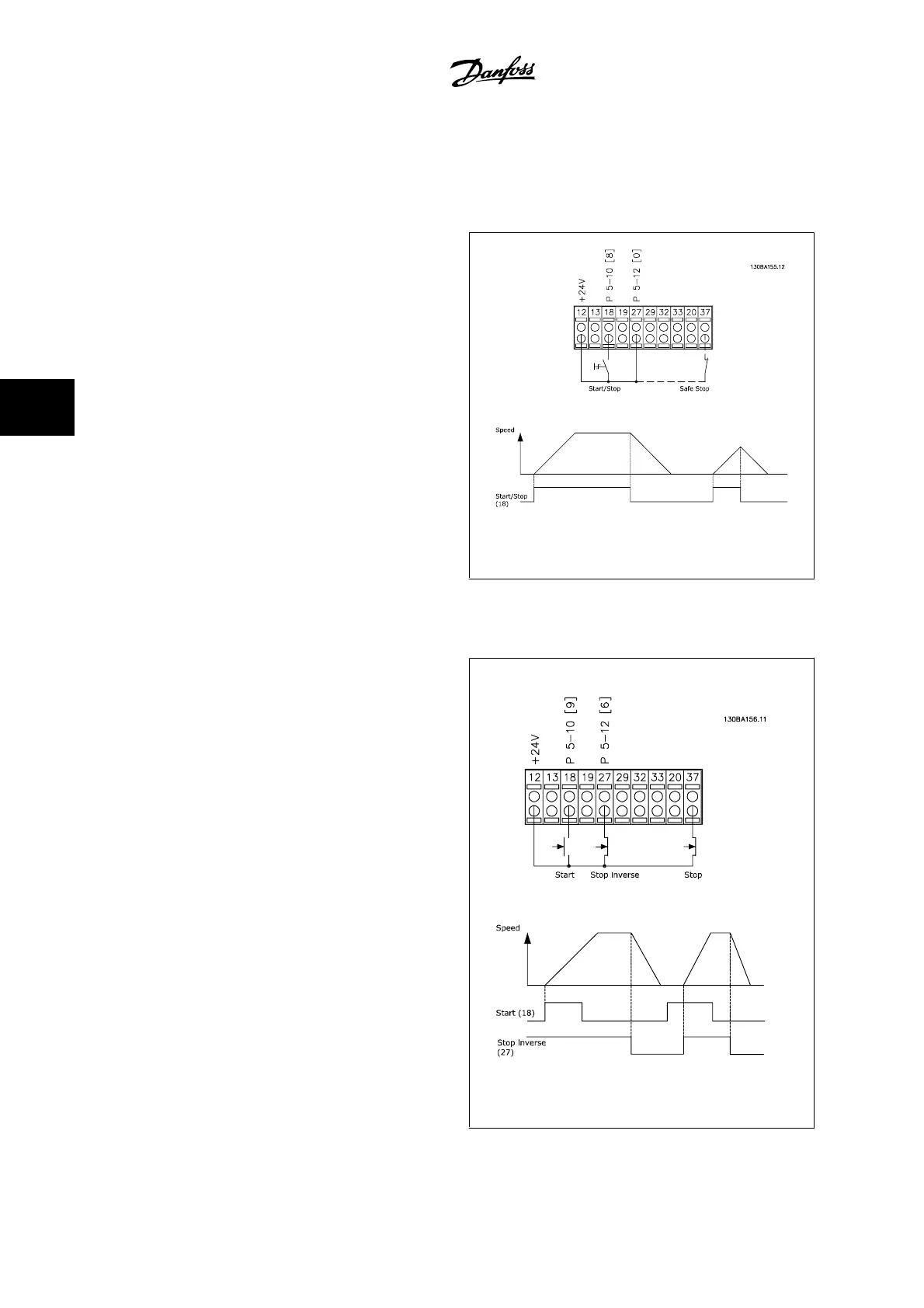

5.2.1 Start/Stop
Terminal 18 = start/stop par. 5-10 Terminal 18 Digital Input [8] Start
Terminal 27 = No operation par. 5-12 Terminal 27 Digital Input [0] No
operation
(Default coast inverse
Par. 5-10 Terminal 18 Digital Input = Start (default)
Par. 5-12
Terminal 27 Digital Input = coast inverse (default)
Figure 5.4: Terminal 37: Available only with Safe Stop Func-
tion!
5.2.2 Pulse Start/Stop
Terminal 18 = start/stop par. 5-10 Terminal 18 Digital Input [9] Latched
start
Terminal 27= Stop par. 5-12 Terminal 27 Digital Input [6] Stop inverse
Par. 5-10 Terminal 18 Digital Input = Latched start
Par. 5-12 Terminal 27 Digital Input = Stop inverse
Figure 5.5: Terminal 37: Available only with Safe Stop Func-
tion!
5 Commissioning and Application Examples VLT
®
HVAC Drive Instruction Manual
5-8 MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
5
