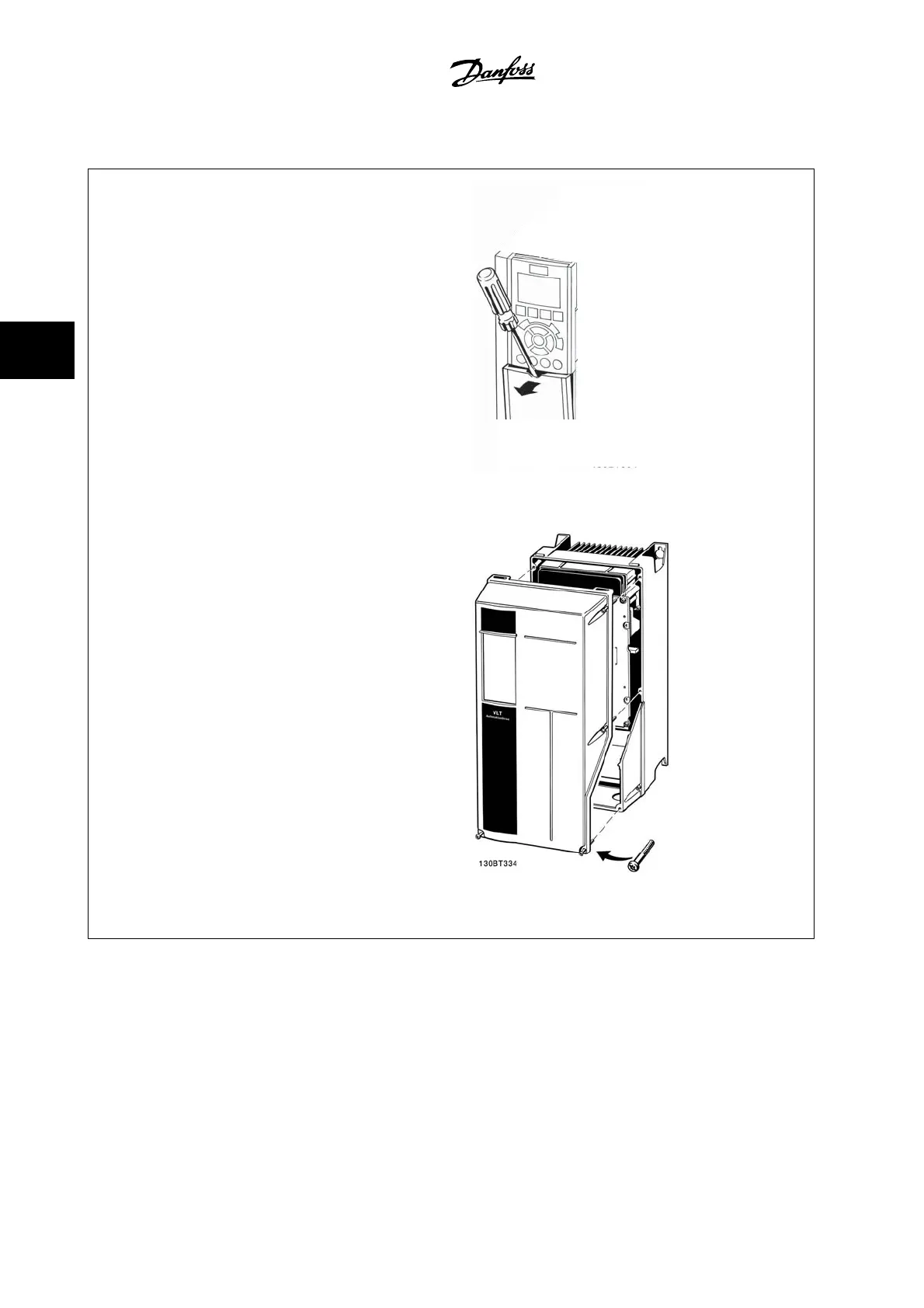

4.1.25 Access to Control Terminals
All terminals to the control cables are located underneath the terminal cover
on the front of the adjustable frequency drive. Remove the terminal cover
with a screwdriver.
130BT248
Figure 4.39: Access to control terminals for A2, A3, B3, B4, C3 and
C4 enclosures
Remove front cover to access control terminals. When replacing the front
cover, ensure proper fastening by applying a torque of 2 Nm.
Figure 4.40: Access to control terminals for A5, B1, B2, C1 and C2
enclosures
4 Electrical Installation VLT
®
HVAC Drive Instruction Manual
4-28
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
