4.1.7 AC Line Input Connections for A2 and A3

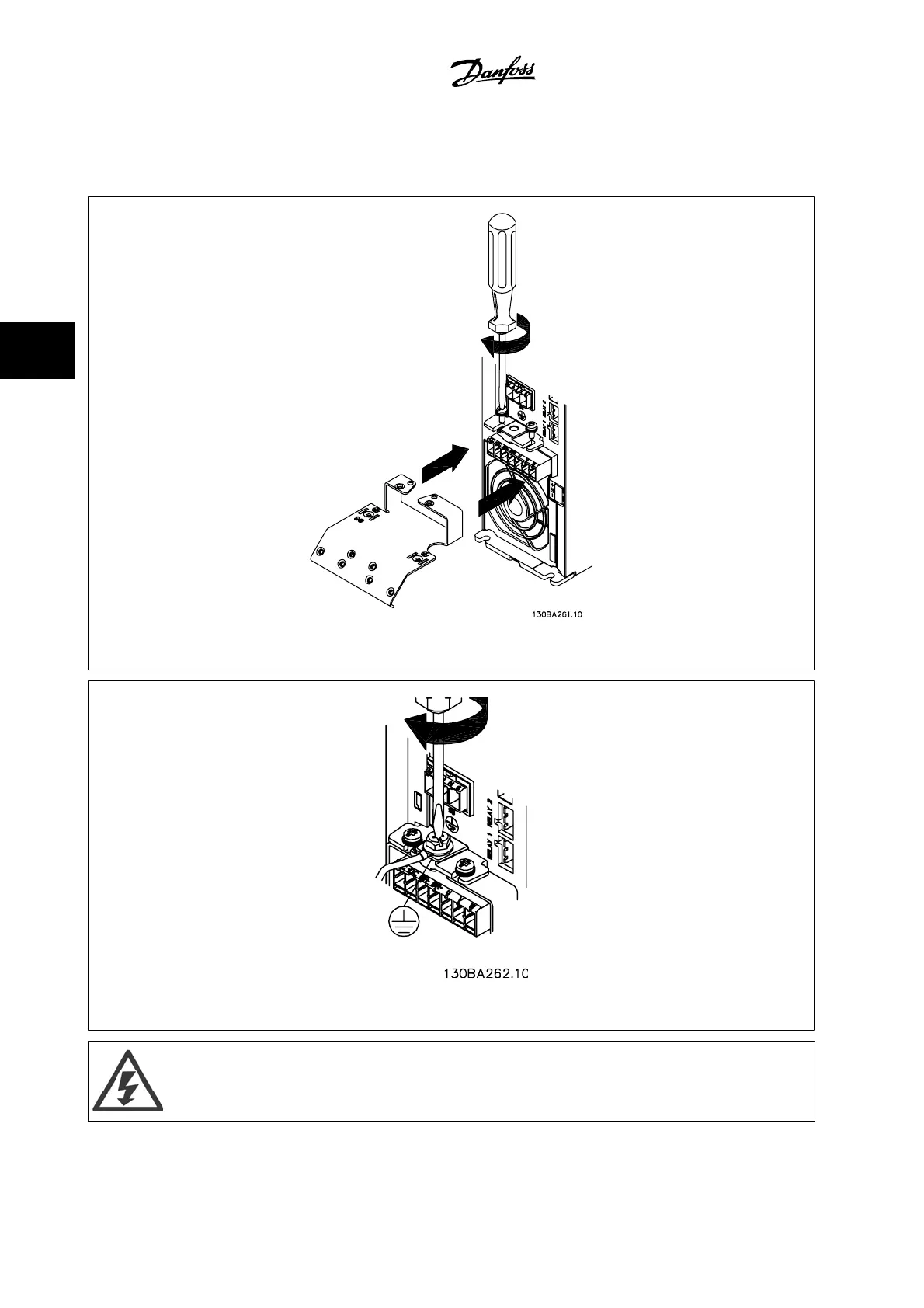

Figure 4.4: First mount the two screws on the mounting plate, slide it into place and tighten fully.
Figure 4.5: When mounting cables, first mount and tighten ground cable.
The ground connection cable cross-section must be at least 0.016 in
2
[10 mm
2
] or 2 rated line power wires terminated separately
according to
EN 50178/IEC 61800-5-1
.
4 Electrical Installation VLT
®
HVAC Drive Instruction Manual
4-10
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
