4.1.14 Motor Connection for A2 and A3
Follow these drawings step-by-step for connecting the motor to the adjustable frequency drive.

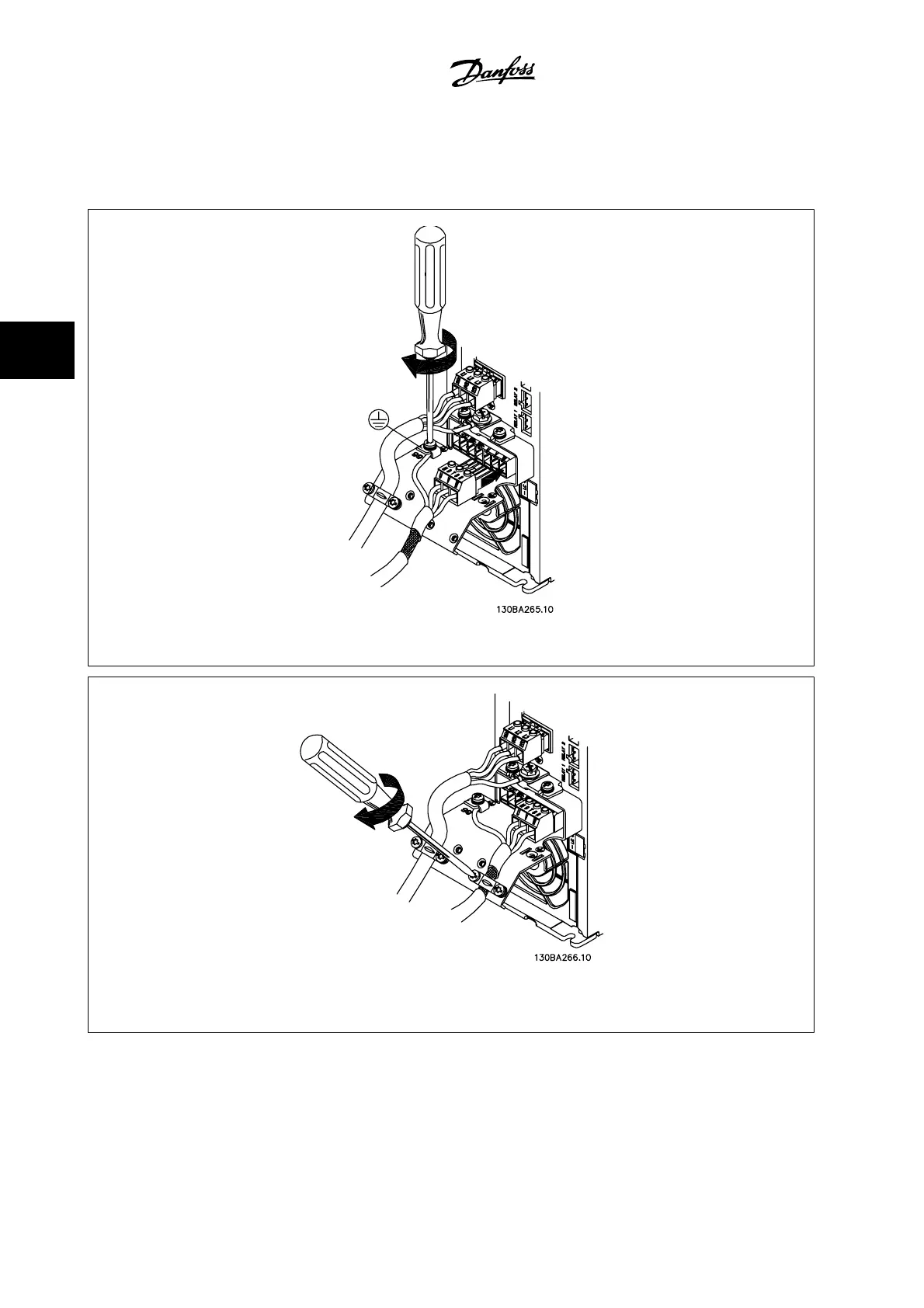

Figure 4.18: First terminate the motor ground, then place motor U, V and W wires in the plug and tighten them.
Figure 4.19: Mount cable clamp to ensure 360 degree connection between chassis and shield; ensure that the outer insulation of the motor
cable is removed under the clamp.
4 Electrical Installation VLT
®
HVAC Drive Instruction Manual
4-18
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
4
