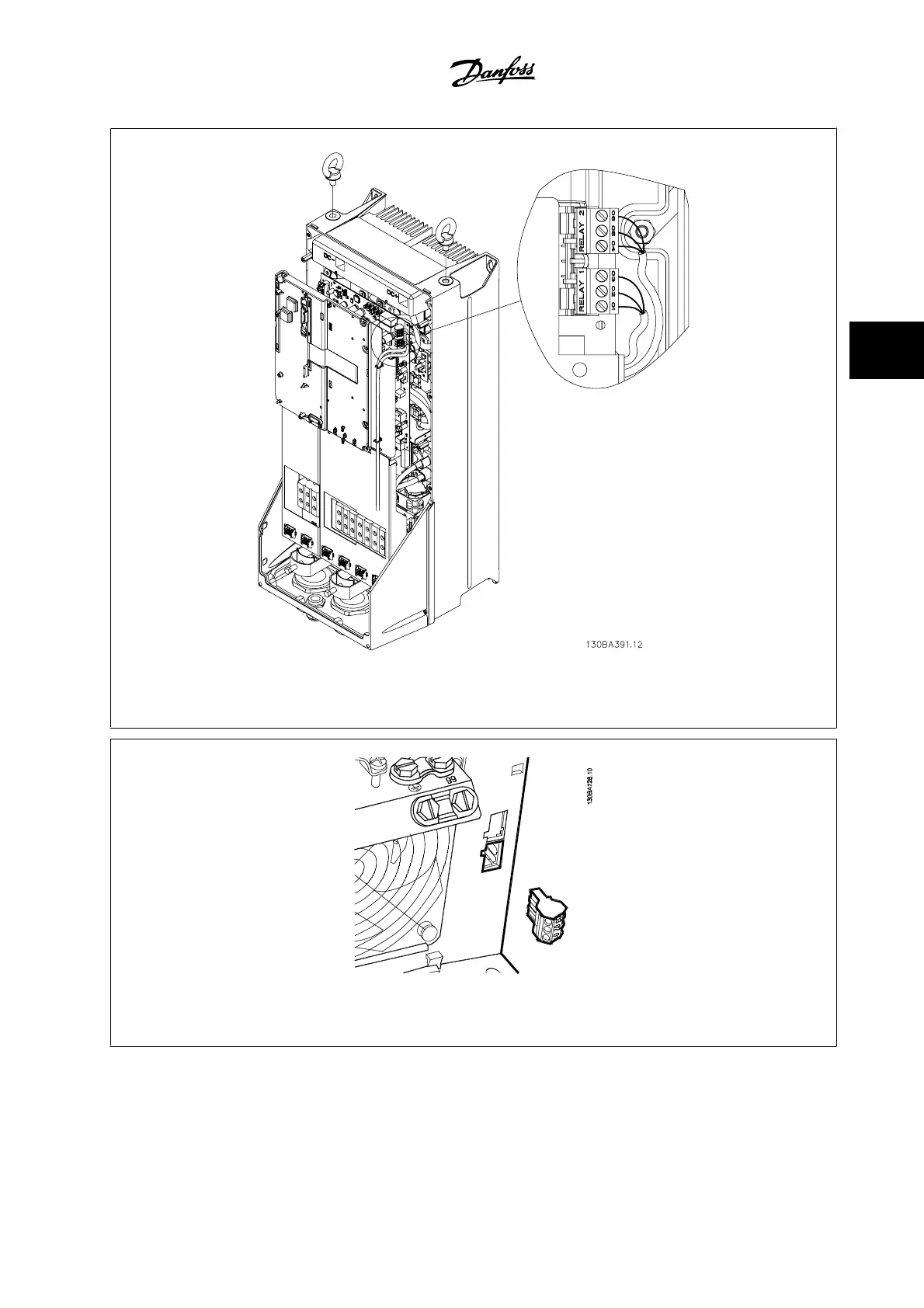

Figure 4.35: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the accessory bag) fitted.
Figure 4.36: Terminals for relay connections for B3. Only one relay input is fitted from the factory. When the second relay is needed, remove
the knock-out.
VLT
®
HVAC Drive Instruction Manual 4 Electrical Installation
MG.11.AB.22 - VLT
®
is a registered Danfoss trademark
4-25
