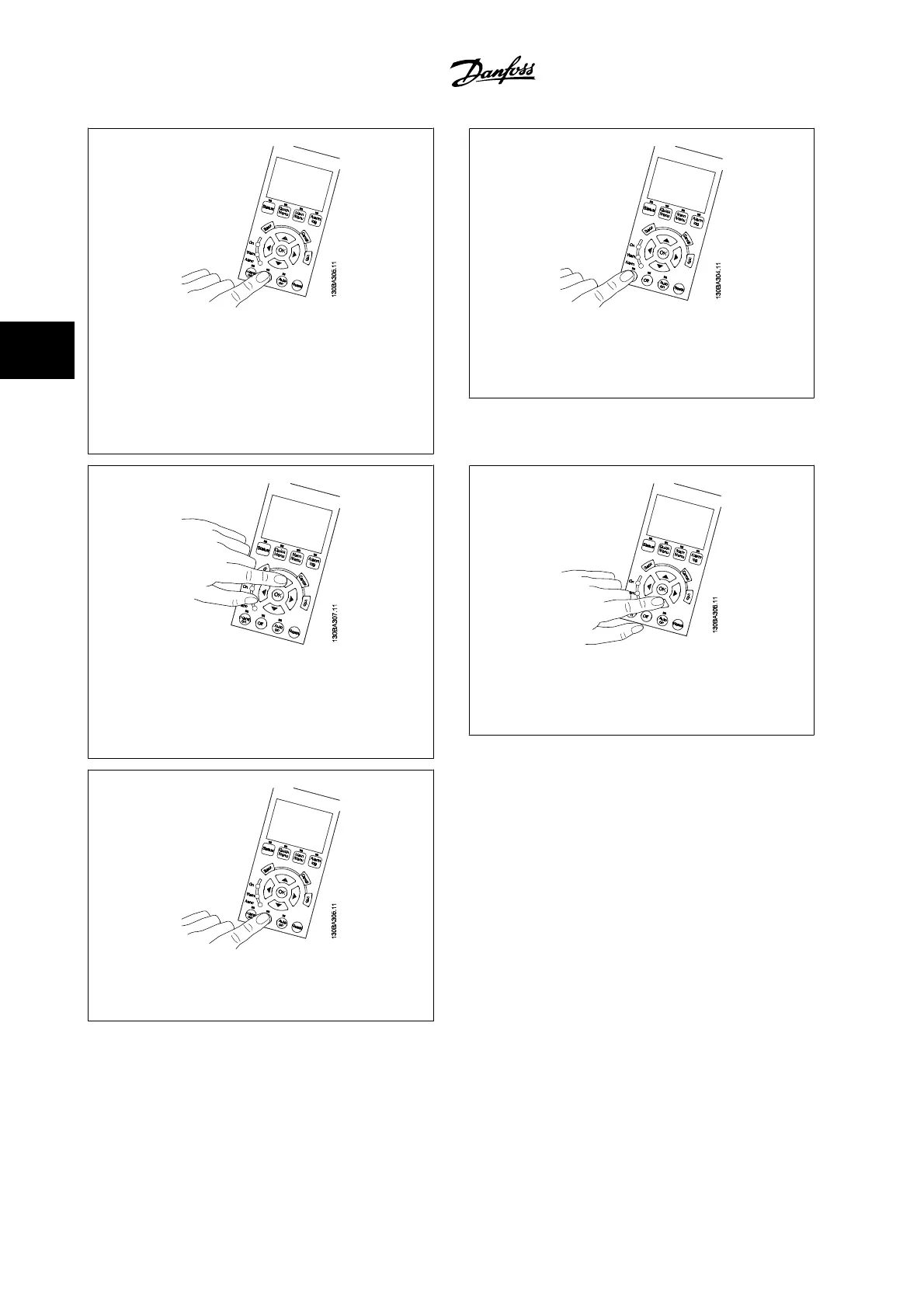

Figure 4.45:
Step 4: Power up the unit and press the [Off] button. In
this state, the motor should not rotate. Press [Off] to stop
the motor at any time. Note that the LED on the [OFF] but-
ton should be lit. If alarms or warnings are flashing, please
see chapter 7 for more information.
Figure 4.46:
Step 5: By pressing the [Hand on] button, the LED above
the button should be lit and the motor may rotate.
Figure 4.47:
Step 6: The speed of the motor can be seen in the LCP. It
can be adjusted by pushing the up
▲
and down
▼
arrow
buttons.
Figure 4.48:
Step 7: To move the cursor, use the left ◄ and right ► arrow
buttons. This enables speed changes by larger increments.
Figure 4.49:
Step 8: Press the [Off] button to stop the motor again.
4 Electrical Installation VLT
®
HVAC Drive Instruction Manual
