Page 31

LCD menu system

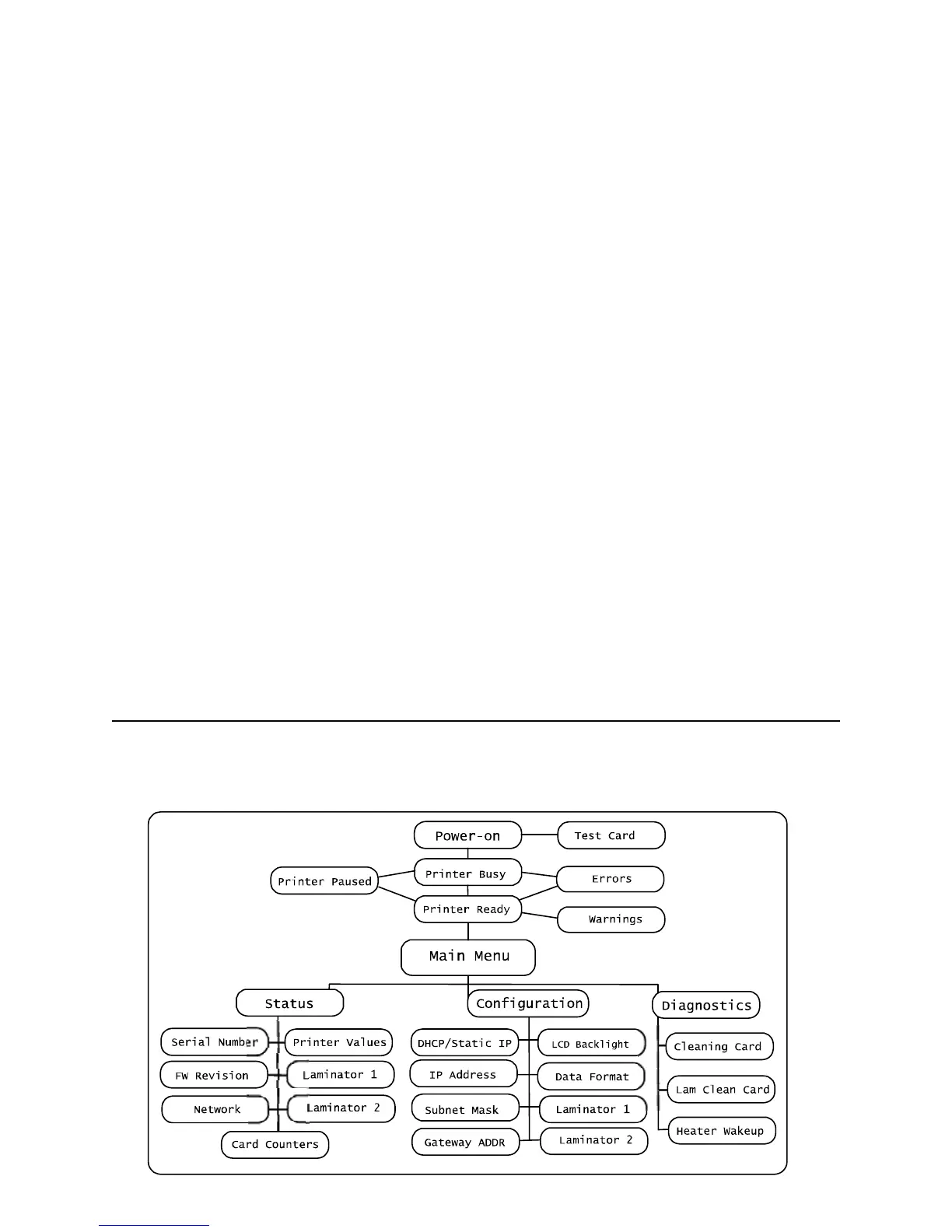

The menu system has three major branches. Use the Status menu to view settings and data about the printer.

Use the Configuration menu to change settings. Use the Diagnostics menu to run a cleaning card.

Table of Contents3
About the Printer6
- The Inside of the Printer8
- Features and Options8
Loading Cards10
Loading Print Ribbon12
Loading Laminator Supply Material14
Status Light16
Check the PC Connection18
Power on the Printer19
The LCD Panel20
Opening Properties or Printing Preferences22
Open the Printer Toolbox24
Cleaning the Printer26
Getting the most out of Your Printer28
Printer Supplies30
- Color Print Ribbon30
- Monochrome and Topcoat Ribbon30
- Monochrome Print Ribbon31
- Laminator Supply Materials31
- Cleaning Supplies33
Printer Installation34
Printer LCD Settings35
- LCD Menu System36
View Status Settings37
- View the Serial Number37
- View the Firmware Revision38
- View Card Counts38
- View the Network Address Mode, IP Addresses, and MAC Address40
- View the Ribbon Type42
- View the Laminator Values42
Change Settings44
- Set LCD Backlighting44
- Set the Address Mode45
- Set the IP Address, Subnet Mask, and Gateway Address47
- Set the Laminator Heater Temperature49
Run Diagnostics Commands50
- Run a Printer Cleaning Card50
- Run a Laminator Cleaning Card52
Troubleshooting54
Site Requirements56
- Operating Environment56
- Electrical Requirements56
- Physical Requirements56
- Printer Messages57
- DM-00760 Duplex Error58
- DM-00762 Duplex Jam59
- DM-00767 Duplex Jam60
- DM-00768 Lower Duplex Jam61
- DM-00769 Lower Duplex Error62
- DM-00770 Lower Duplex Jam63
- IS-01206 no Card Picked64
- SY-01305 Data Error65
- SY-01306 Data Error66
- SY-01310 Flash Error67
- SY-01314 Flash Error68
SY-01317 Memory Error69
SY-01325 Data Error70
SY-01327 Data Error72
SY-01331 Comm Error73
SY-01332 Hardware Error74
MS-01401, MS-01402, MS-01403 Mag Stripe Data75
MS-01404, MS-01405, MS-01406 Mag Stripe Error76
MS-01407, MS-01408, or MS-01409 Mag Stripe Error77
MS-01410 Mag Stripe Error78
MS-01413 Mag Stripe Error79
MS-01420, MS-01421 Card Jam80
MS-01424 Mag Stripe Error82
MS-01425 Mag Stripe Error84
MS-01426 EEPROM Error85
MS-01427 Mag Stripe Error86
MS-01429 Mag Stripe Data87
MS-01430 Mag Stripe Error88
MS-01431 EEPROM Error89
MS-01435 no Mag Stripe90
OP-01604, OP-01654 L1 or L2 Heater Error91
OP-01611, OP-01661 Roller Error92
OP-01612, OP-01662 Card Jam94
OP-01613, OP-01663 L1 or L2 Supply Error96
OP-01614, OP-01664 Supply Break98
OP-01615, OP1665 L1 or L2 Supply out100
OP-01616 Lam EEPROM Error102
OP-01619 Comm Error103
OP-01620 Wait for Temp104
OP-01621, OP-01671 Supply Low105
OP-01622, OP-01672 Supply Error106
OP-01623 Lam Hardware Error107
OP-01624, OP-01674 Card Jam108
OP-01651 no L2 Laminator110
- PR-01703 Printhead Error111
- PR-01705, PR-01706 Card Jam112
- PR-01710 EEPROM Error114
- PR-01715 Cover Open115
- PR-01718 Printhead Temp116
- PR-01719 Printhead Error117
- PR-01720 Ribbon Error118
- PR-01721 EEPROM Error119
- PR-01723 Hardware Error120
- PR-01724 Ribbon Break122
- PR-01726 Ribbon out124
- PR-01730 Printhead Error125
- PR-01737 Ribbon Low126
- PR-01738 Ribbon Error127
- SC-01804 no Smart Card128
Legal Notices (FCC)135
- Liability Statement135
- Regulatory Compliance135
- Trademark Acknowledgments135
- Proprietary Notice135
