Page 38

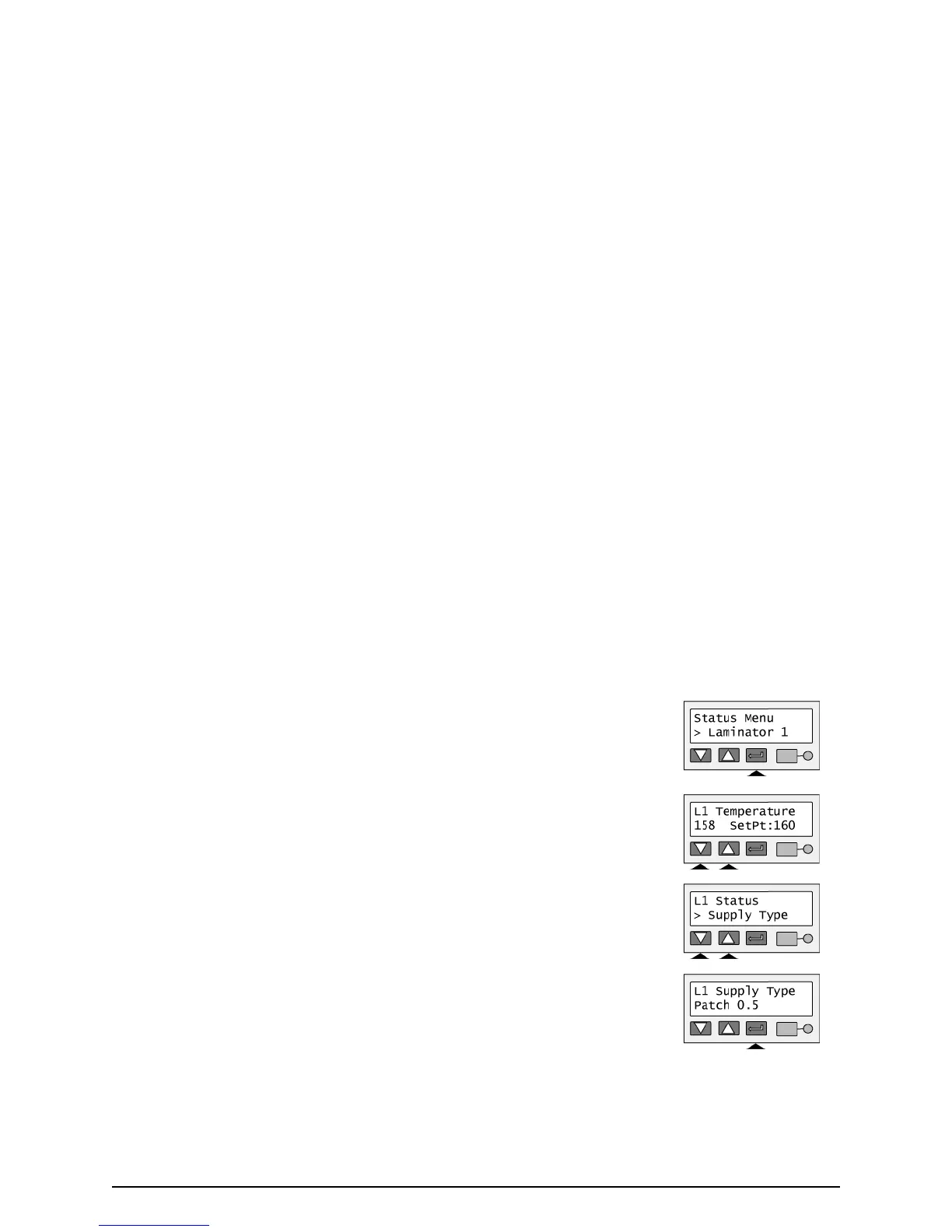

1 With “Status Menu” displayed on line 1, press the Up or Down Arrow key to display
“Laminator 1” or “‘Laminator 2” on line 2.
2 Press the Enter key. “Temperature” appears on line 2. Press the Enter key to view
the current temperature, displayed on the left side, and the operating temperature
defined for the material, labeled SetPt. Both values are displayed in degrees
Celsius (C).
3 Press the Enter key to return to the Status menu. “Supply Type” is displayed on
line 2.
4 Press the Enter key. The type and thickness of the supply material loaded in that
laminator appears on line 2. The type can be Patch or Topcoat. The thickness, in
mils or thousandths of an inch, can be 0.5, 0.6, or 1.0.
5 Press Enter to return to the Status menu. “Exit” is displayed on line 2.
6 To print cards, press the Enter key repeatedly to return to the “Printer Ready”
display.
