Chapter 13. DM4000 ETH12GX+1x10GX
13.3. System Status LEDs
The DM4000 ETH12GX+1x10GX has the following port status LEDs.

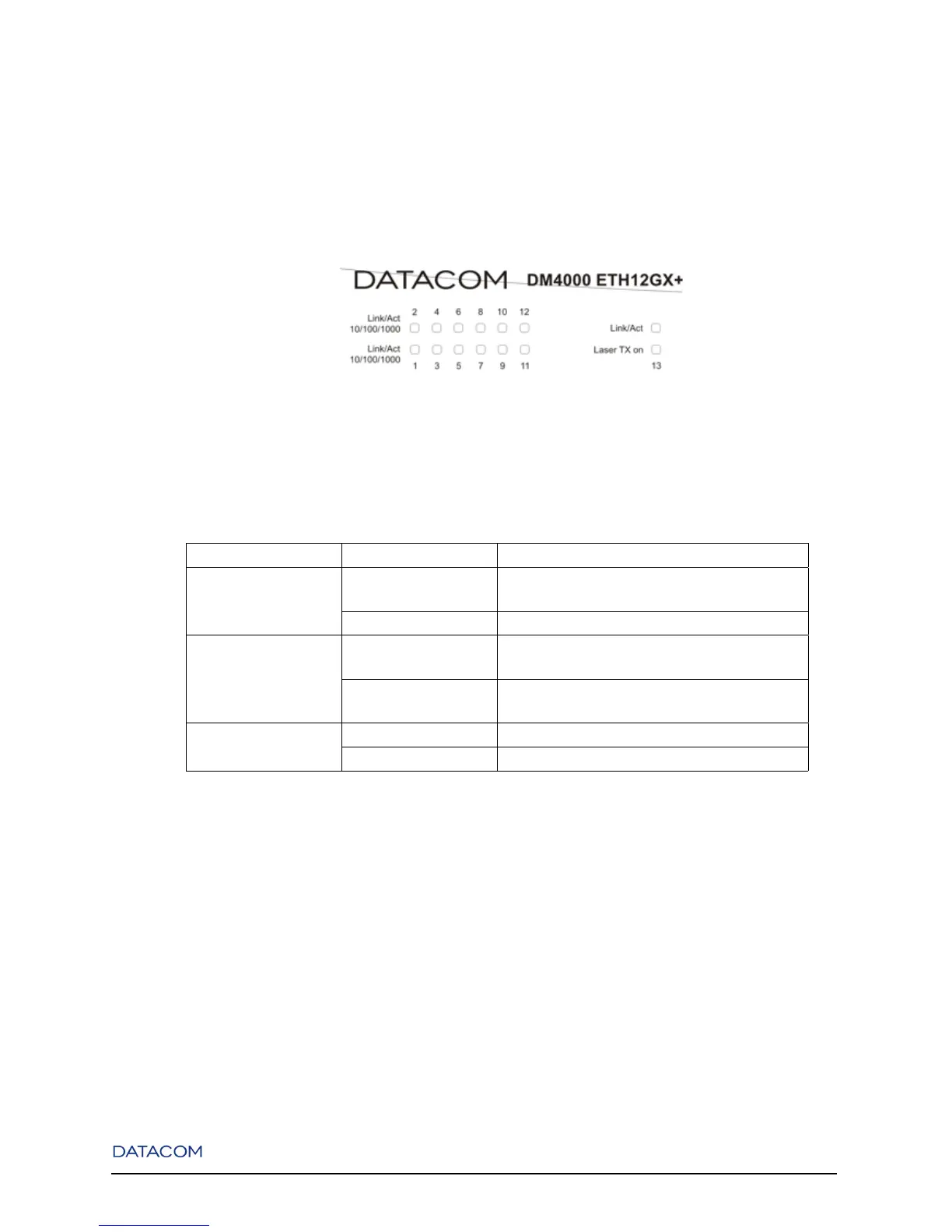

Figure 13-3. DM4000 ETH12GX+1x10GX - Front Panel LEDs
Table 13-1. ETH12GX+1x10GX Port Status LEDs
LED CONDITION STATUS
Link/Act ON/Blinking Connection established. Blinking indicates port
activity.
OFF No connection established.
10/100/1000 ON Indicates that a 10/100Mbps connection was
established.
OFF Indicates that a 1000Mbps connection was
established.
Laser TX On ON Indicates that XFP TX laser is on.
OFF Indicates that XFP TX laser is off.
13.4. Software and Hardware Features
13.4.1. Software
Software information is available in a separated guide.
