Chapter 6. DM4008 Chassis

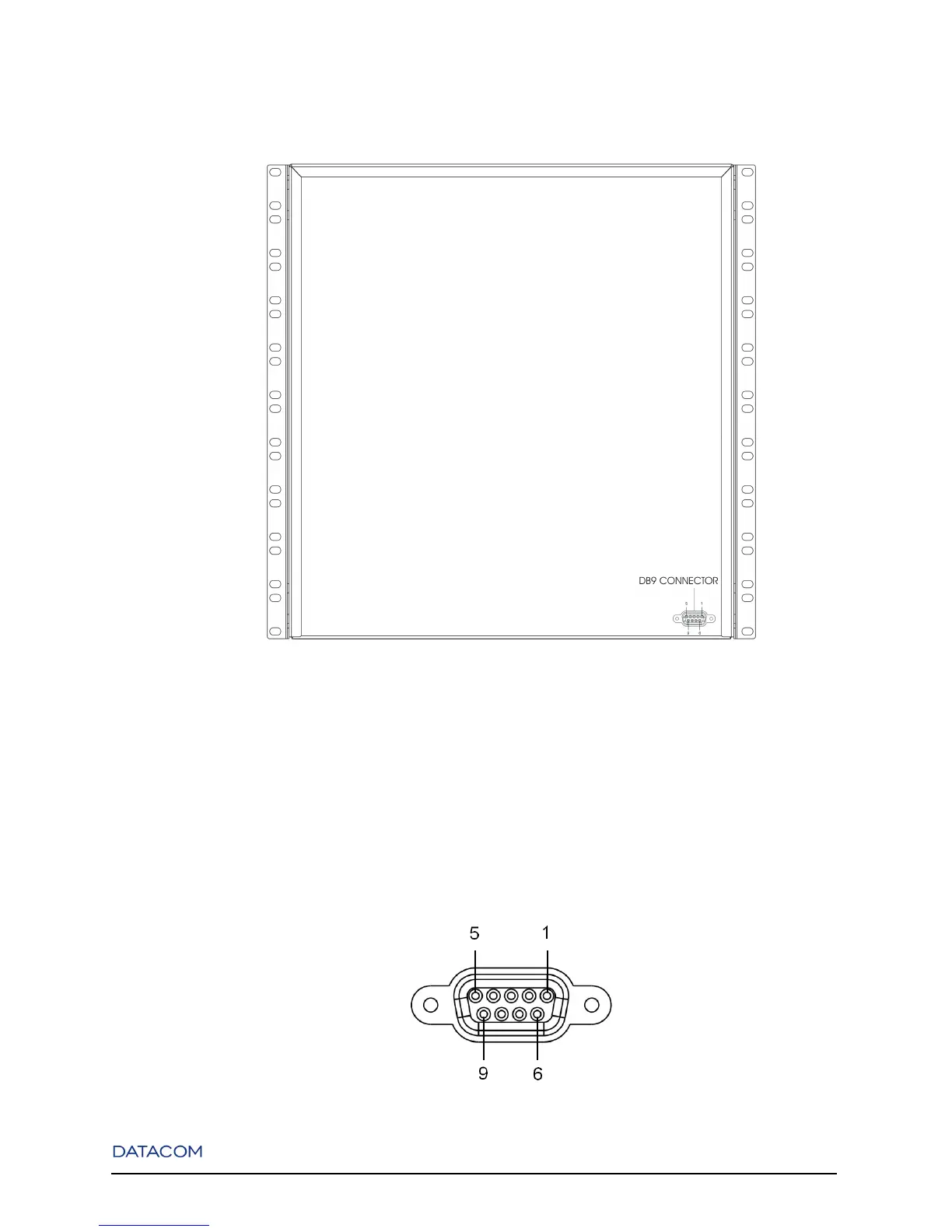

Figure 6-3. DM4008 Chassis - Rear Panel

6.4. Console Management Port

The chassis contains one DB9 connector on its rear panel. The connector has two Console ports, each one

connected to each MPU.

The pinouts of the Console ports are shown in the following ﬁgure and table.

Figure 6-4. DB9 Pins Speciﬁcation
