Datacom DM4000 Series User Manual

Chapter 4. DM4001 Chassis
Table 4-2. Interface Pinout
Management Port
RJ-45 Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
4,5,7,8 -
RJ-45 Serial Port
1,2,7,8 -
3 Tx
4,5 GND
6 Rx
4.5. Rear Panel Description
The Rear Panel of the DM4001 chassis has two 48 to 60V DC power inputs.

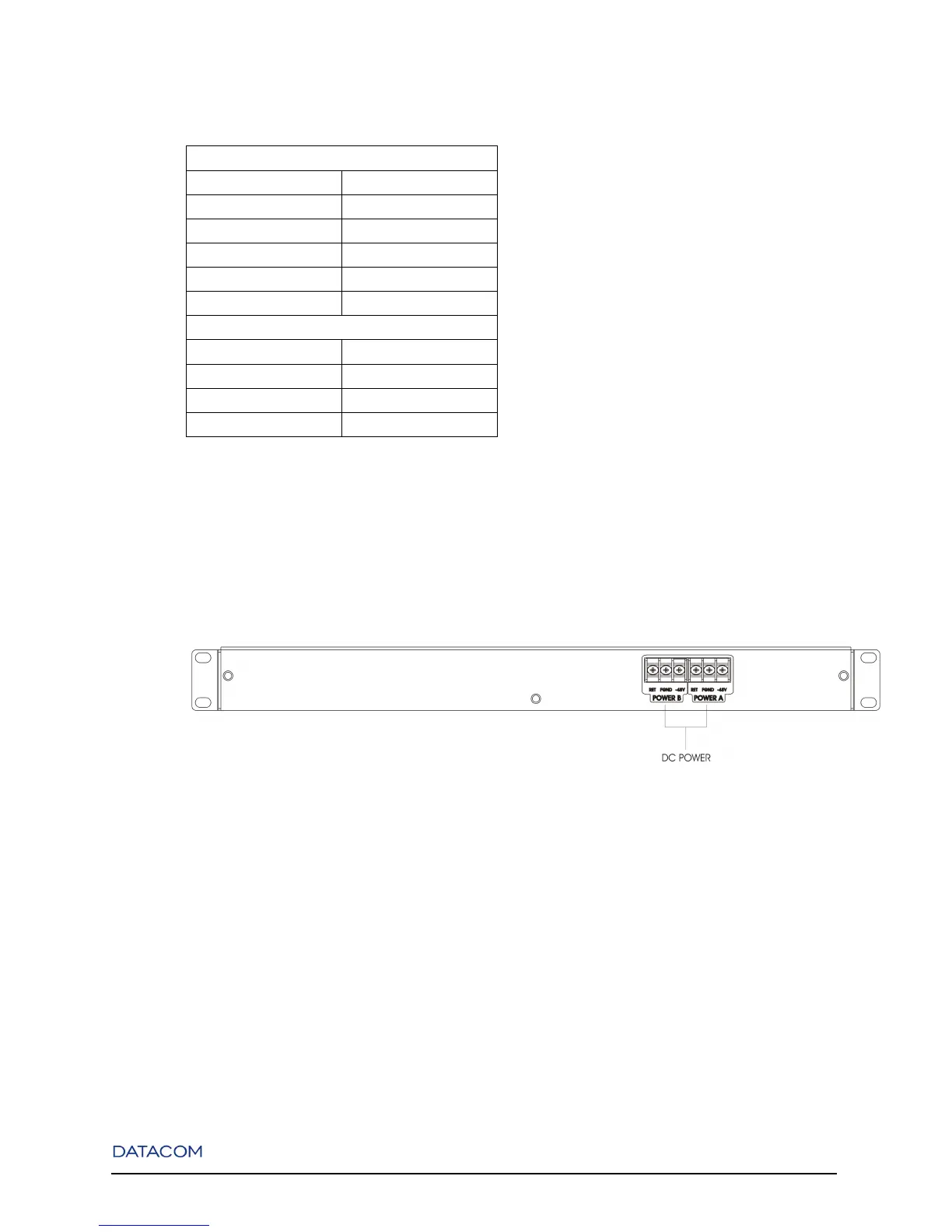

Figure 4-5. DM4001 Rear Panel
Note: The figure above represents the last version of Rear Panel, another version could be different.
For your safety read the power indication.
16
