Chapter 15. DM4000 ETH24GT

15.1. Overview

The DM4000 ETH24GT is a non-blocking 24 10/100/1000Mbps port interface board compatible with

DM4001, DM4004 and DM4008 chassis.

The DM4000 ETH24GT can handle up to 35,714,285 packets per second supporting 9500 bytes jumbo

frames reaching wire speed operation.

The DM4000 ETH24GT has a 400MHz microprocessor with 256MB of RAM and 64MB of Flash.

The DM4000 ETH24GT extensive Metro support can handle up to 16,000 MACs.

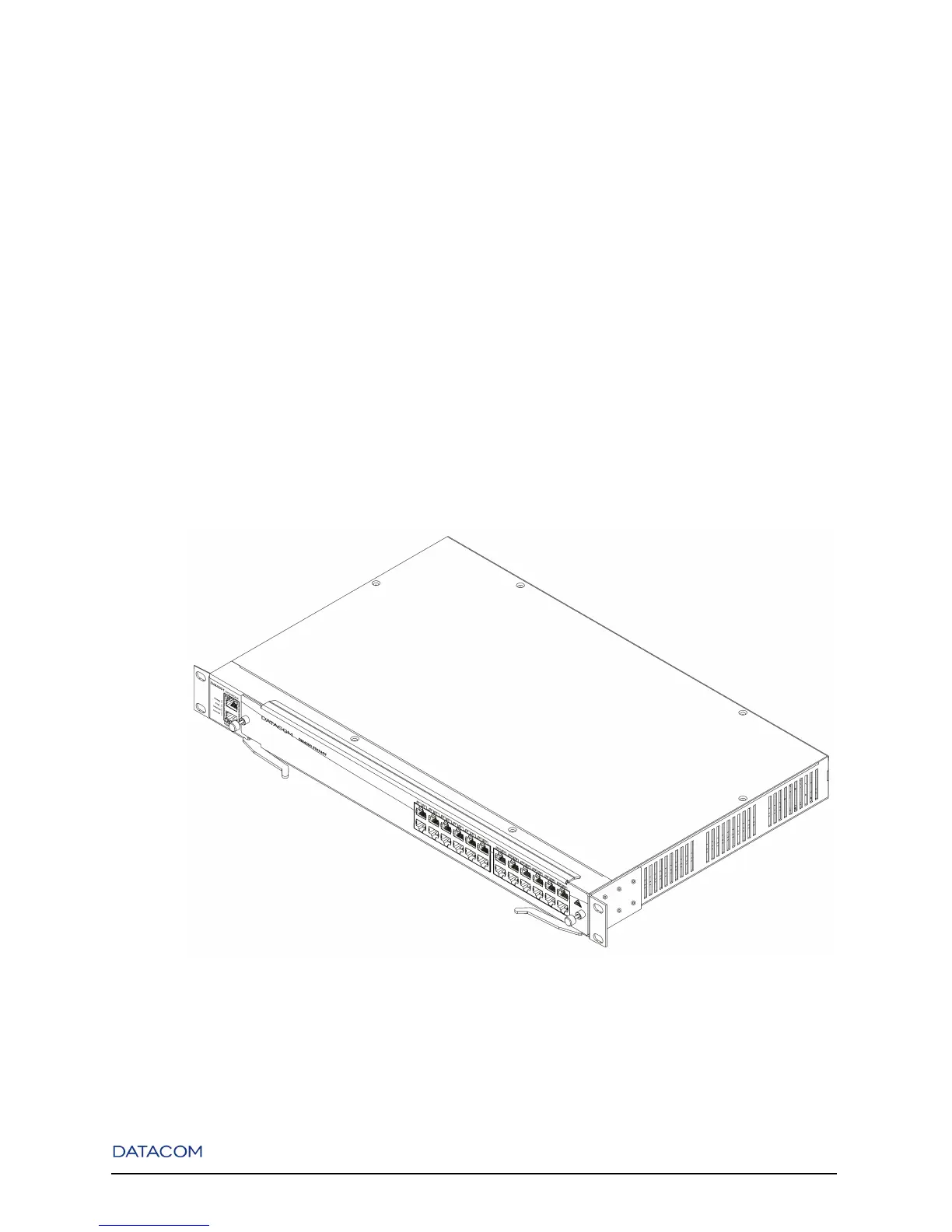

Figure 15-1. DM4000 ETH24GT inside DM4001 Chassis
