Chapter 11. DM4000 ETH24GX H Series

11.1. Overview

The DM4000 ETH24GX H Series is a non-blocking 24 SFP port interface board compatible with

DM4001, DM4004 and DM4008 chassis.

The DM4000 ETH24GX H Series can handle up to 35,714,285 packets per second supporting 12K jumbo

frames and has an internal 4MB Switching Memory supporting wire speed operation.

The DM4000 ETH24GX H Series has a 1GHz microprocessor with 1GB of RAM and 1GB of Flash.

The DM4000 ETH24GX H Series extensive Metro support can handle up to 524,288 MACs and larger

L3 tables.

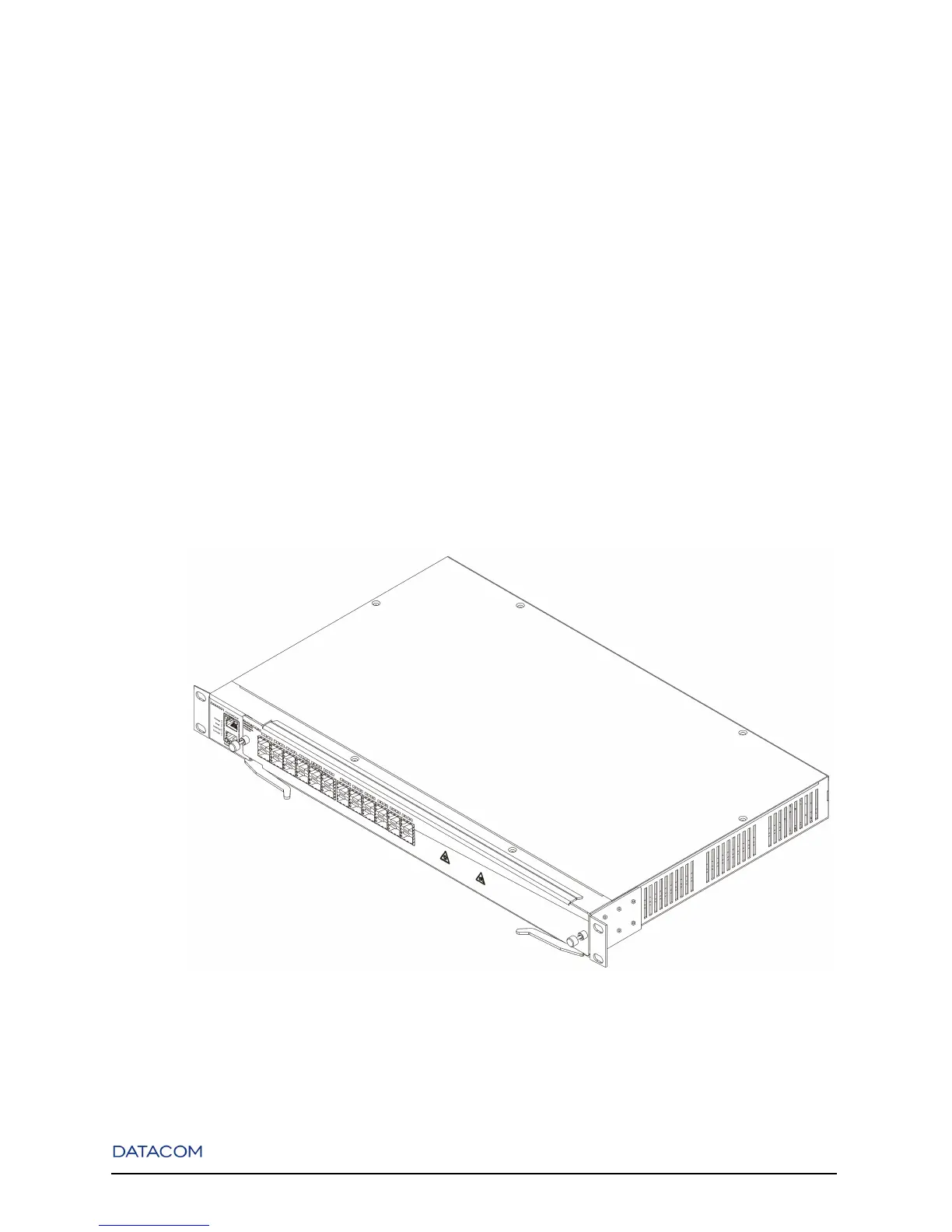

Figure 11-1. DM4000 ETH24GX H Series inside DM4001 Chassis
