Datacom DM4000 Series - Construction; A. Cable DB9-RJ-45

Appendix A. Cable DB9-RJ-45
A.1. Construction
To build a cable DB9-RJ-45 you need to connect the pins shown in the below, this cable will serve to
command the MPUs and standalone chassis by serial port.
Also, see the pins in the next pictures.

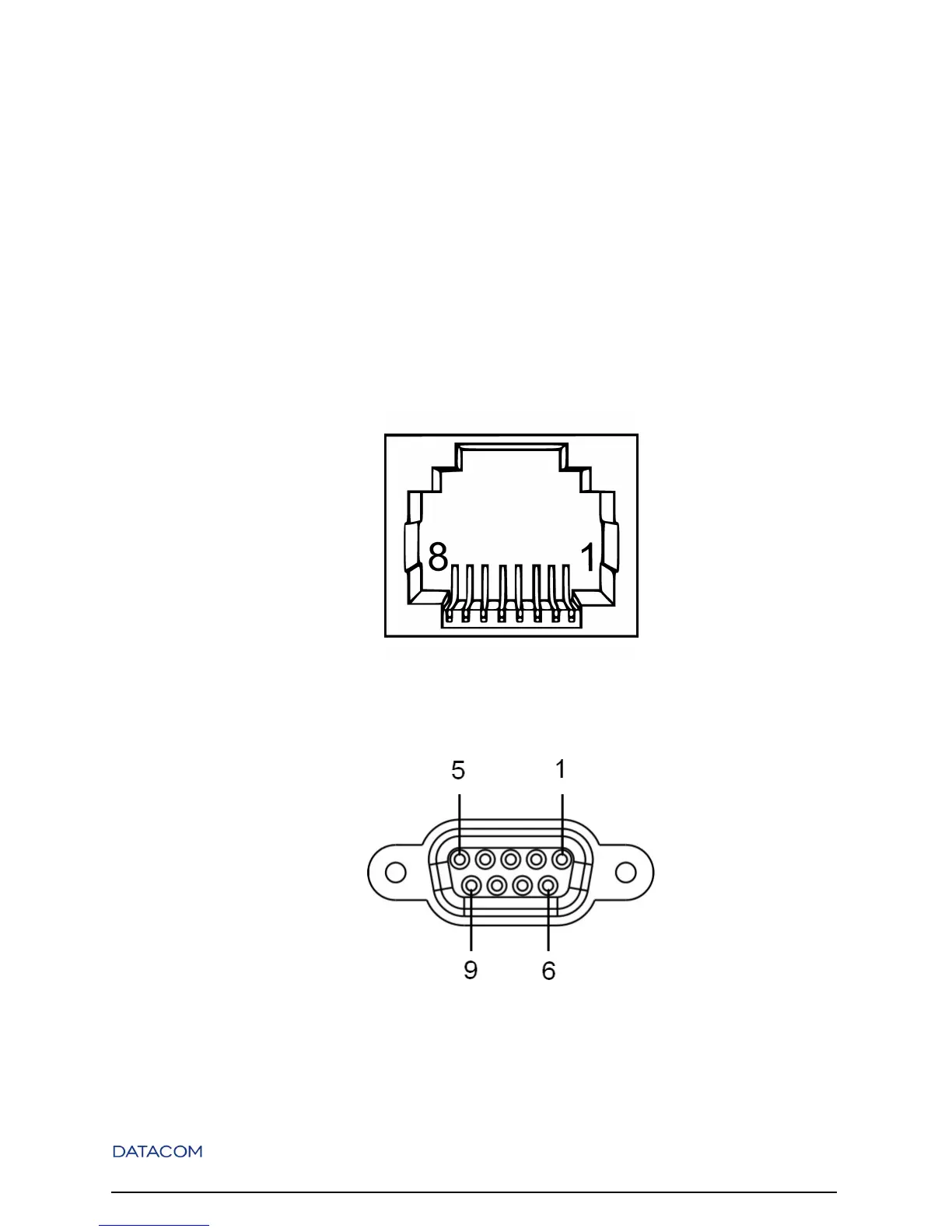

Figure A-1. RJ-45 Pins
Figure A-2. DB9 Pins
