Datacom DM4000 Series - Interface Pinout

Chapter 9. DM4000 MPU416
The pinouts of both Console and Outband Management ports are shown in the table below.

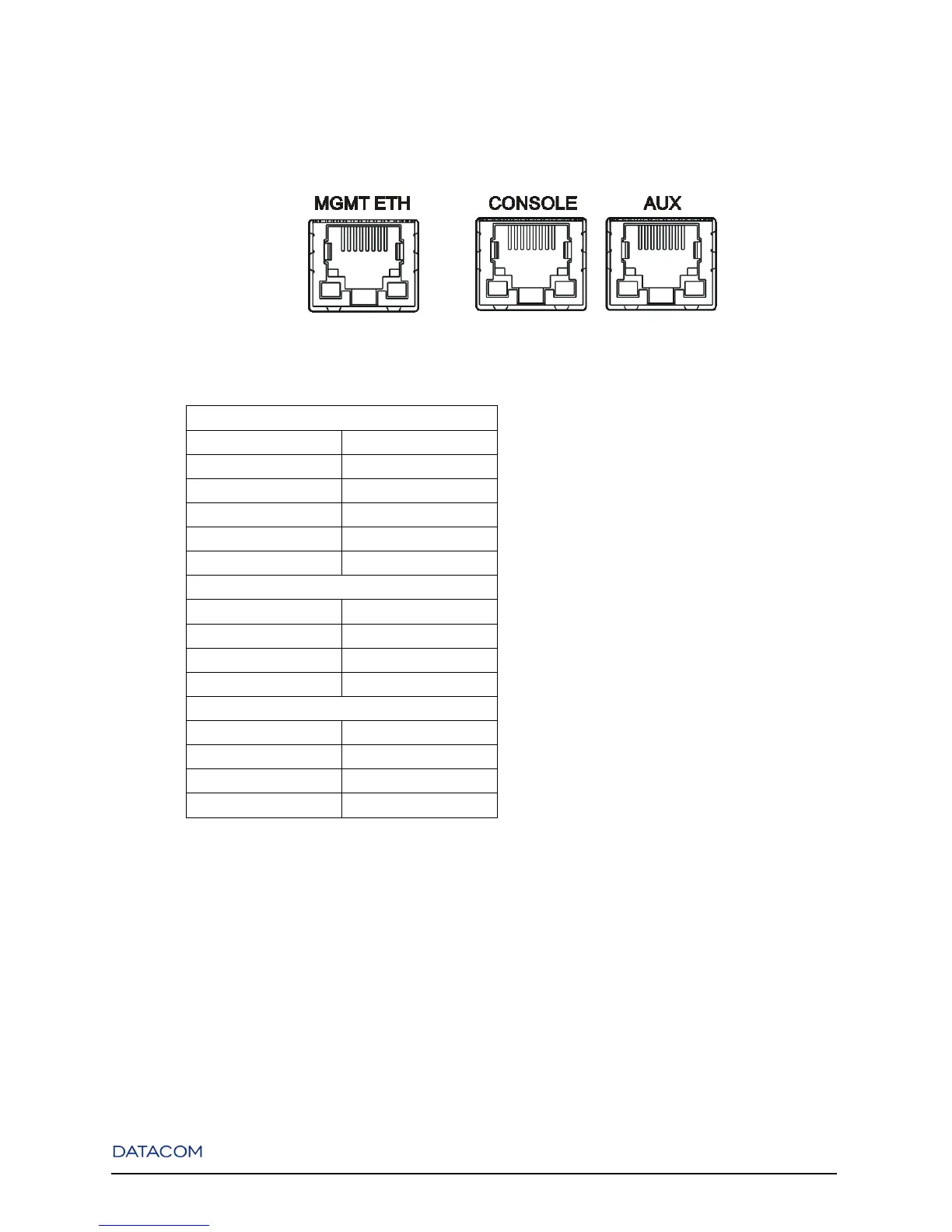

Figure 9-4. DM4000 MPU416 - Front Panel Connectors
Table 9-2. Interface Pinout
Management Port
Pin Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
4,5,7,8 -
Console Port
1,2,7,8 -
3 Tx
4,5 GND
6 Rx
AUX Port
1,2,7,8 -
3 Tx
4,5 GND
6 Rx
